SiUS12-928_B Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU
Removal Procedure 222
2. Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU

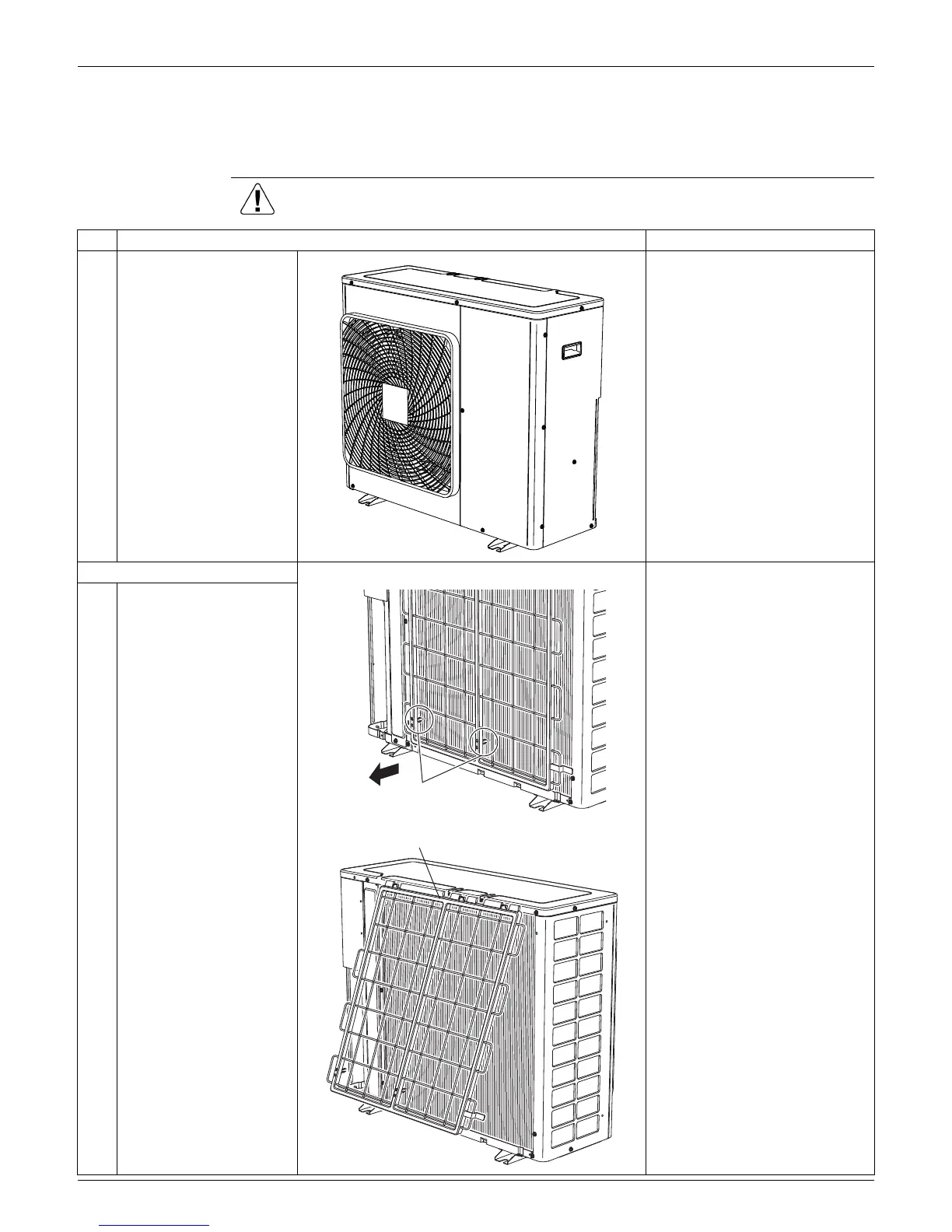

2.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Appearance features
1. Remove the suction grille. The hooks are secured in the
clearances of the outdoor heat
exchanger fins.
1
Unfasten the 2 hooks at
the bottom first.
(R6368)
Hook
Rear side
(R14612)
Suction grille
(R6370)
