Outdoor Unit: 2MXS18GVJU SiUS12-928_B

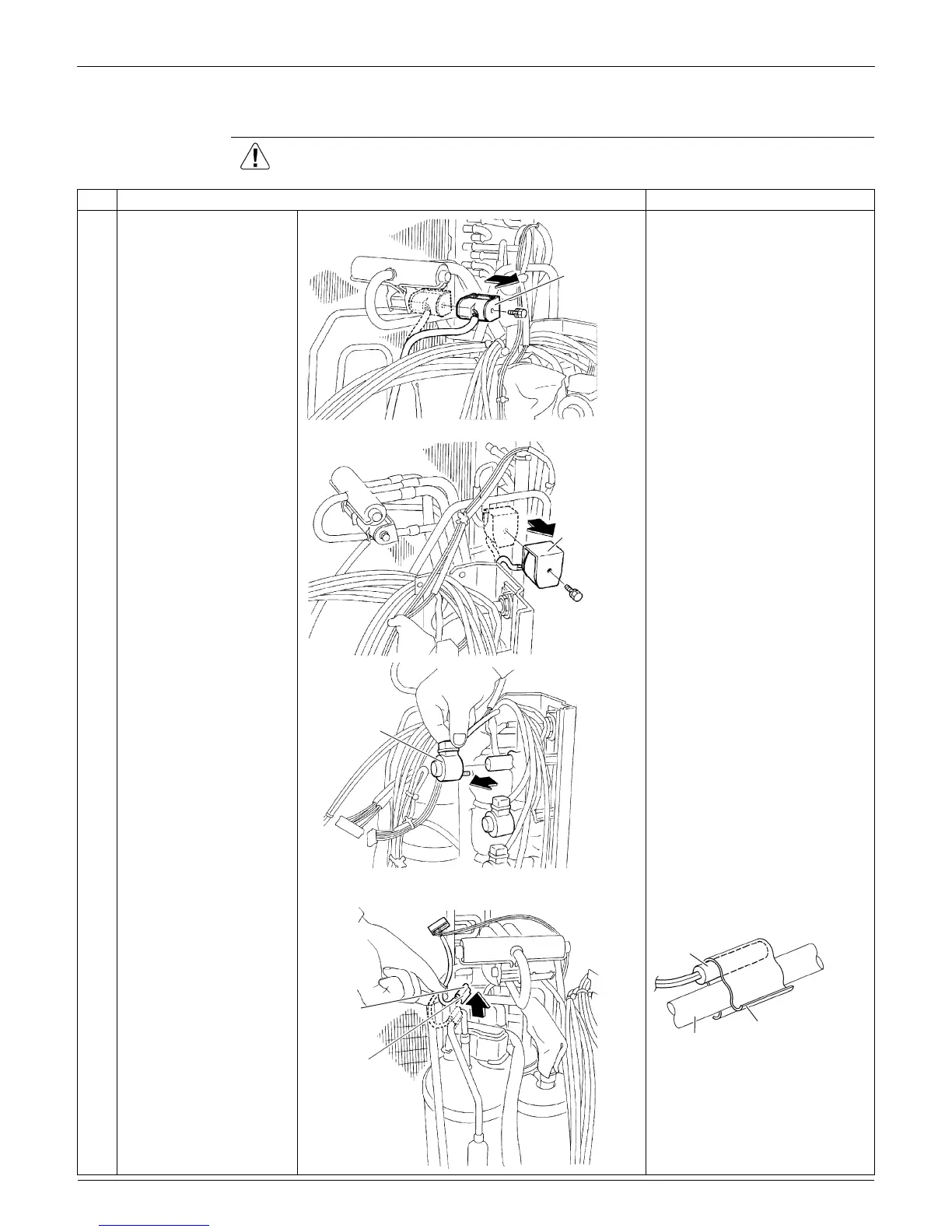

215 Removal Procedure
1.6 Removal of Coils / Thermistors
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the screw and
remove the four-way
valve coil.
2
Remove the screw and
remove the defrost
solenoid valve coil.
3
Pull out the electronic
expansion valve coil for
each room.
Place the thermistor so that its
edge comes up to the edge of
the fixture.
4
Remove the discharge
pipe thermistor.
Be careful not to lose the
fixture for the thermistor.
Four way
valve coil
(R2194)
Defrost
solenoid
valve coil
(R2195)
Electronic
expansion
valve coil
(R2196)
Fixture
Discharge pipe
thermistor
(R10367)
Fixture
(R10536)
Pipe
Thermistor
