Daikin SUPER MULTI NX G Series Service Manual

SiUS12-928_B Outdoor Unit: 2MXS18GVJU
Removal Procedure 216
5

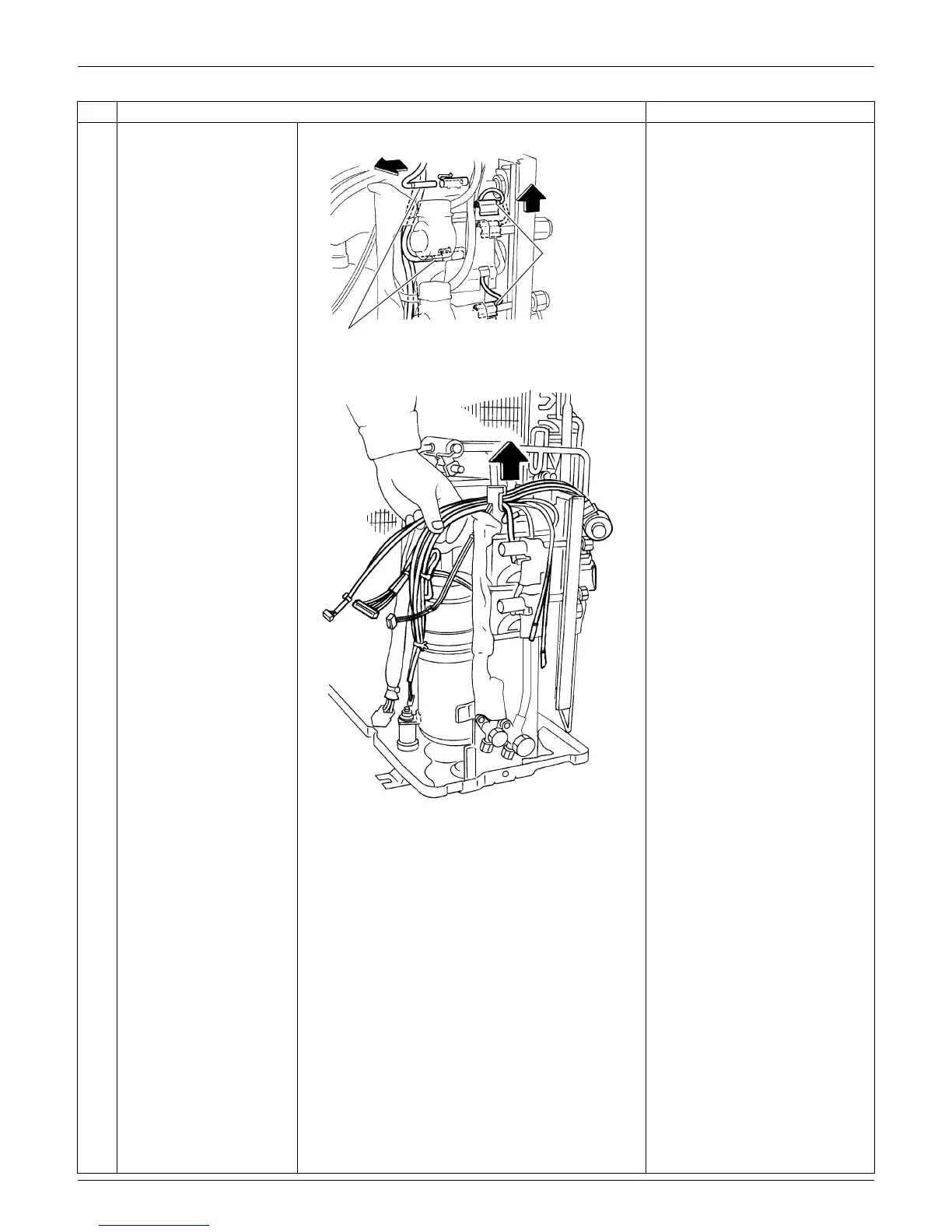

Remove the putty, and
remove each thermistor.
 Place the thermistor so that its
edge comes up to the edge of
the fixture.
 Be careful not to lose the clip
and fixture for the thermistors.
6
Release the wire
harnesses.
[S90]: outdoor temperature
thermistor (blue)
outdoor heat exchanger
thermistor (gray)
discharge pipe thermistor
(black)
[S92]: gas pipe thermistor
room A (black)
room B (gray)
[S93]: liquid pipe thermistor
room A (black)
room B (gray)
Step
Procedure Points
(R17406)
Gas pipe thermistor
Liquid pipe
thermistor
(R10369)
