Frequency Limits The following functions regulate the minimum and maximum frequency:
Forced Operation Refer to page 256 for detail.
1.3 Airflow Direction Control (CTXS/FTXS Series)
Power-Airflow
Dual Louvers
The large louver sends a large volume of air downward to the floor and provides an optimum
control in cooling, dry, and heating operation.
<Cooling / Dry>
During cooling or dry operation, the louver retracts into the indoor unit. Then, cool air can be blown
far and distributed all over the room.
<Heating>
During heating operation, the large louver directs airflow downward to spread the warm air to the
entire room.
Wide-Angle Fins The fins, made of elastic synthetic resin, provide a wide range of airflow that guarantees
comfortable air distribution.

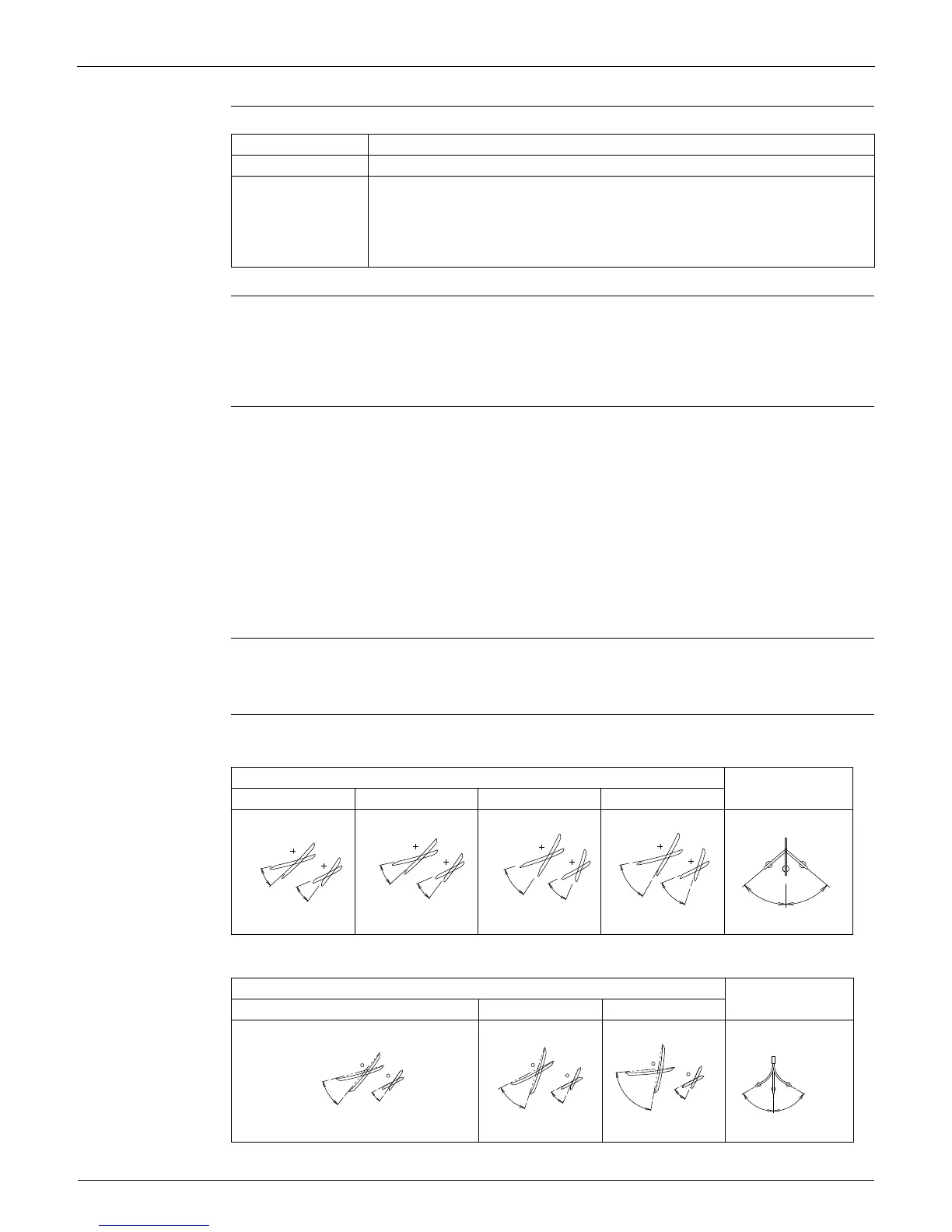

Auto-Swing The following table explains the auto swing process for cooling, dry, heating, and fan:
CTXS07JVJU, CTXS09/12HVJU, FTXS15/18HVJU
CTXS07LVJU, FTXS09/12LVJU
Frequency Functions
Low Four-way valve operation compensation. Refer to page 57.
High Compressor protection function. Refer to page 58.
Discharge pipe temperature control. Refer to page 58.
Input current control. Refer to page 59.
Freeze-up protection control. Refer to page 59.
Heating peak-cut control. Refer to page 60.
Defrost control. Refer to page 62.
Vertical Swing (up and down)
Horizontal Swing
(right and left)
Cooling Dry Heating Fan
Vertical Swing (up and down)
Horizontal Swing
(right and left)
Cooling / Dry Heating Fan
