Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B
253 Removal Procedure

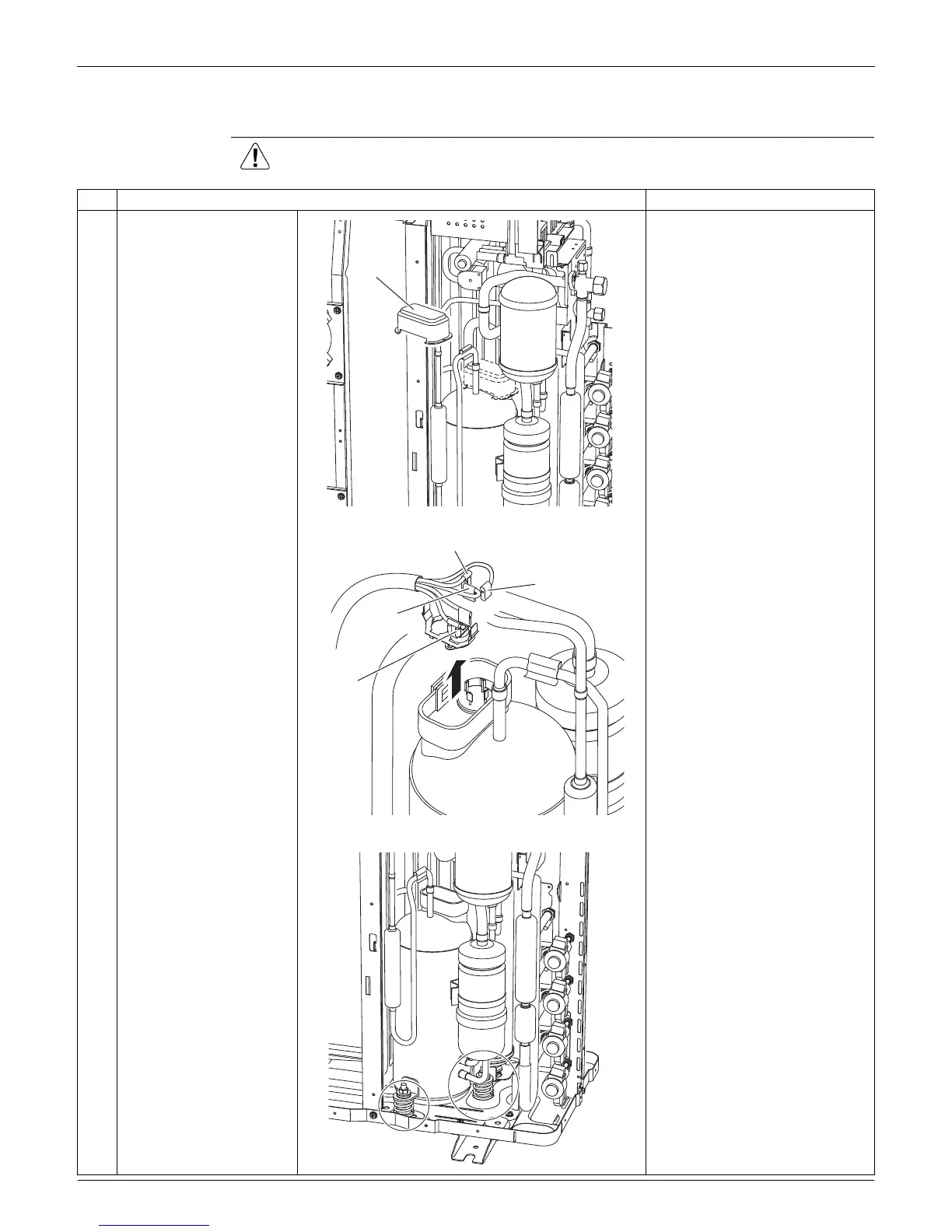

2.7 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.
U : red, V : yellow, W : blue
3
Remove the overload
protector.
4
Remove the 2 nuts. Disconnect the pipings,
referring to page 221.
(R6466)
Terminal
cover
(R9471)
W(blue)
U(red)
V(yellow)
Overload
protector
(R10440)
