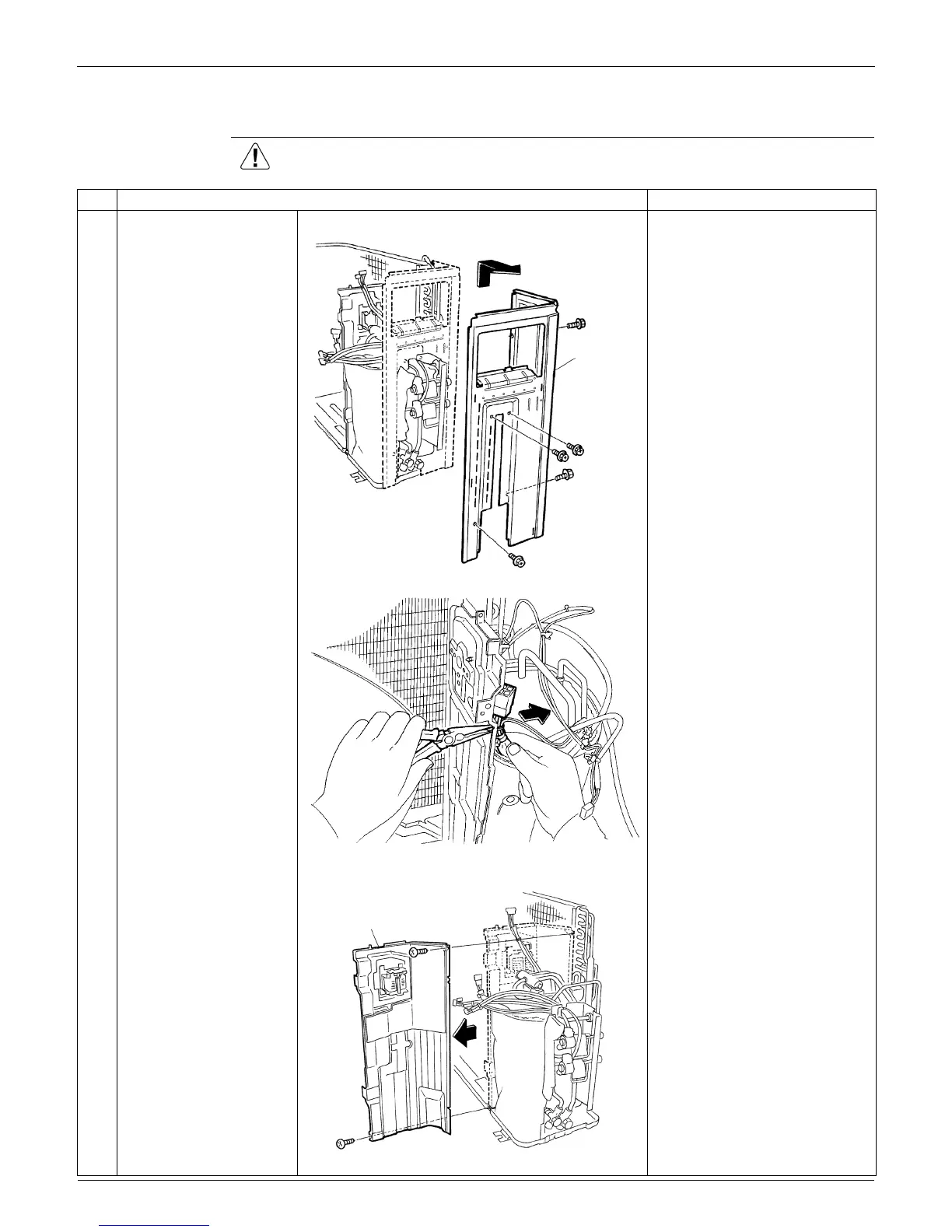

Outdoor Unit: 2MXS18GVJU SiUS12-928_B
213 Removal Procedure
1.5 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the 5 screws of
the right side panel.
2
Release the clamp with
pliers.
3
Remove the 2 screws of
the partition plate and
remove it.
Right side
panel
(R10364)
(R16508)
Partition plate
(R10365)
