Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B

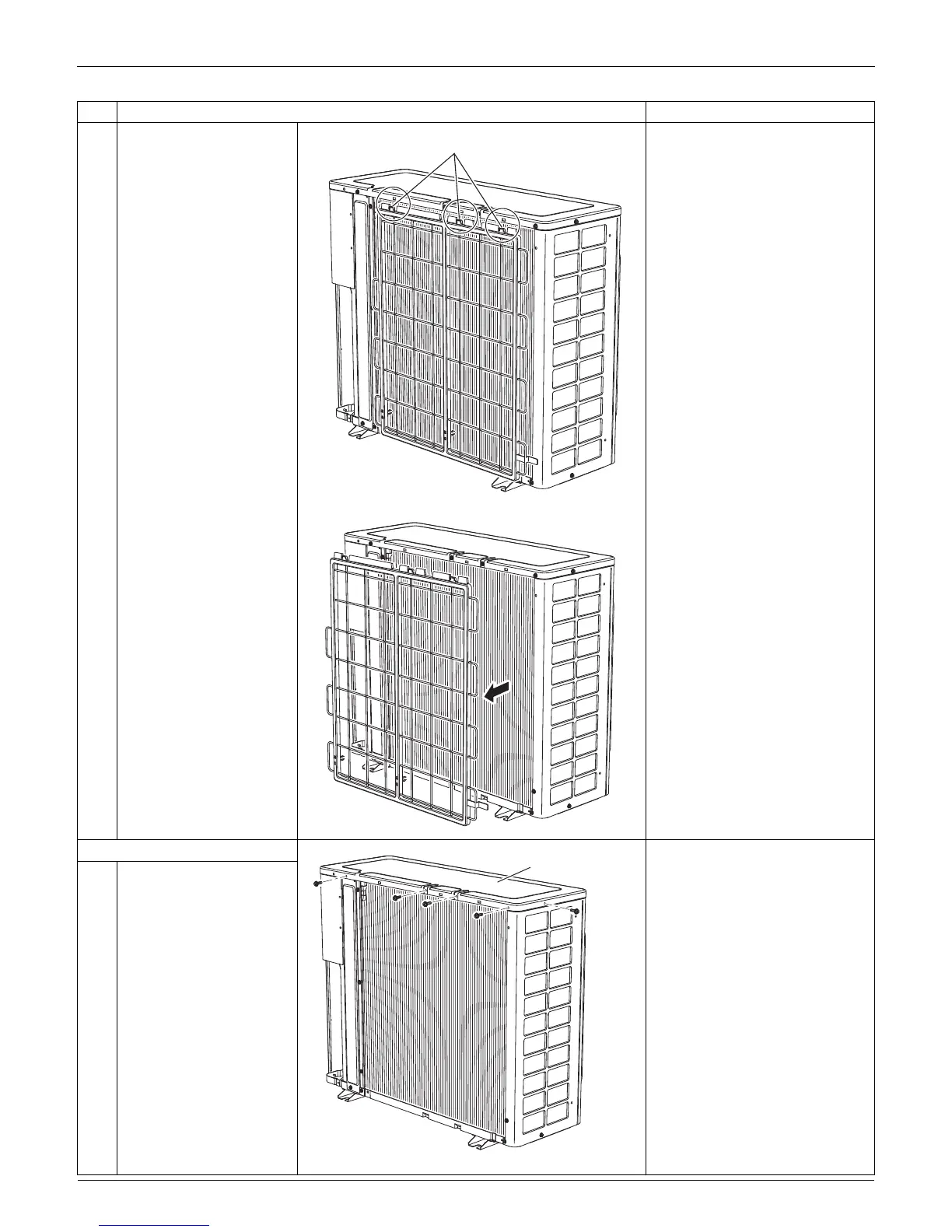

223 Removal Procedure
2
Slide the suction grille
downward to unfasten the
3 top hooks.
3
Remove the suction grille.
2. Remove the top panel.
1
Remove the 4 screws on
the back and the screw on
the left side.
Step
Procedure Points
Hook
(R14613)
(R6372)
Top panel
(R17409)
