Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B

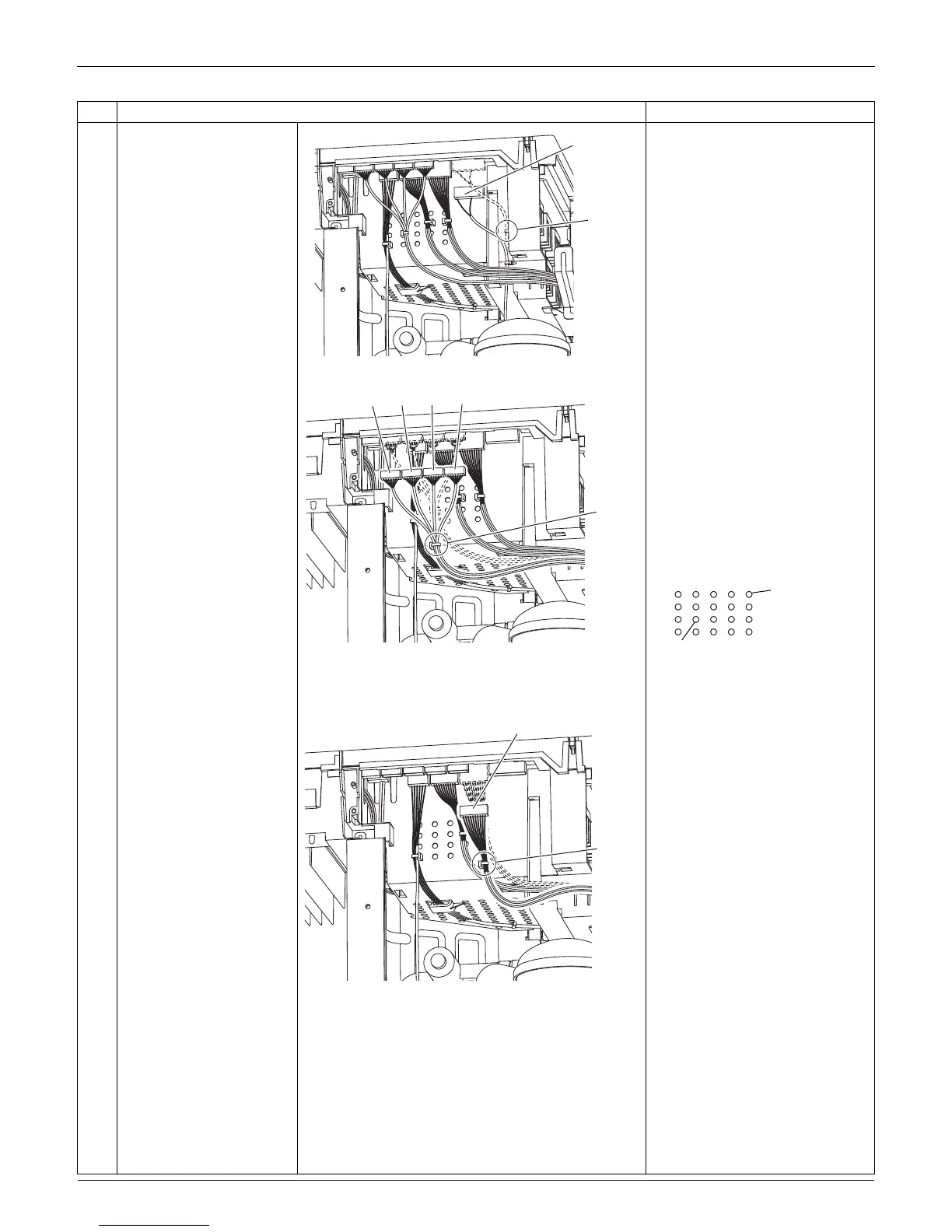

235 Removal Procedure

Disconnect the connector

for the four-way valve coil

[S80].

 Pull out the clamp.

Disconnect the 4

connectors for the

electronic expansion

valve coils (for room A, B,

C, D) and pull out the

clamp.

 A : [S20] (white)

B : [S21] (red)

C : [S22] (blue)

D : [S23] (yellow)

 The 3MXS model does not

have [S23].

 When reassembling, insert

each clamp into the hole.

Disconnect the connector

for the liquid pipe

thermistors [S93] and pull

out the clamp.

Step

Procedure Points

[S80]

Clamp

(R10398)

Clamp

(R10399)

For the electronic

expansion valve coil

[S93]

(R17354)

Clamp

[S93]

(R10400)
