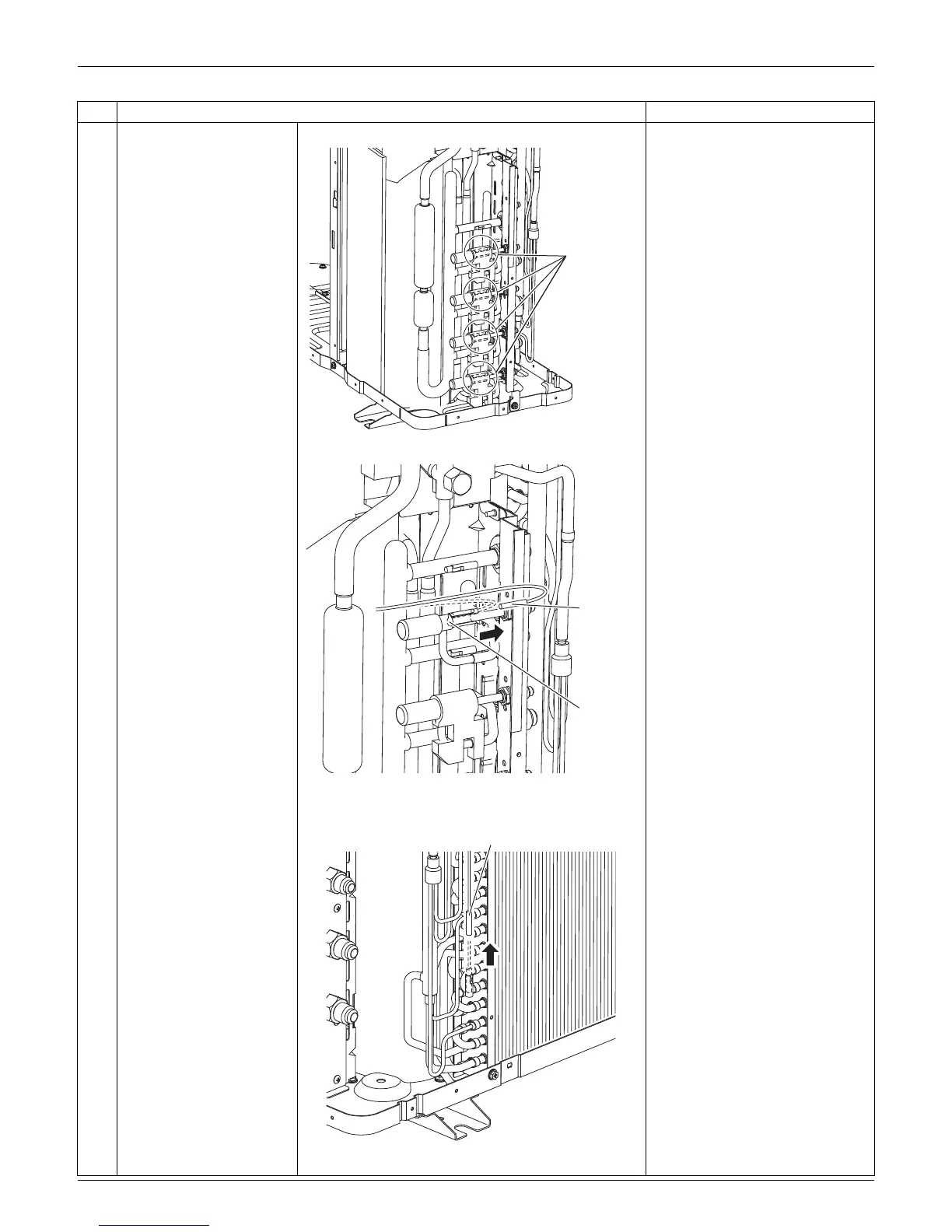

SiUS12-928_B Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU
Removal Procedure 246
2
Peel the putty, and pull
out the liquid pipe
thermistors.
Be careful not to lose the
fixtures for the thermistors.
3
Pull out the outdoor heat
exchanger thermistor.
Step
Procedure Points
Liquid
pipe
thermistor
(R17413)
(R6450)
Liquid pipe
thermistor
Fixture
(R10541)
Outdoor heat exchanger thermistor
