Daikin SUPER MULTI NX G Series Service Manual

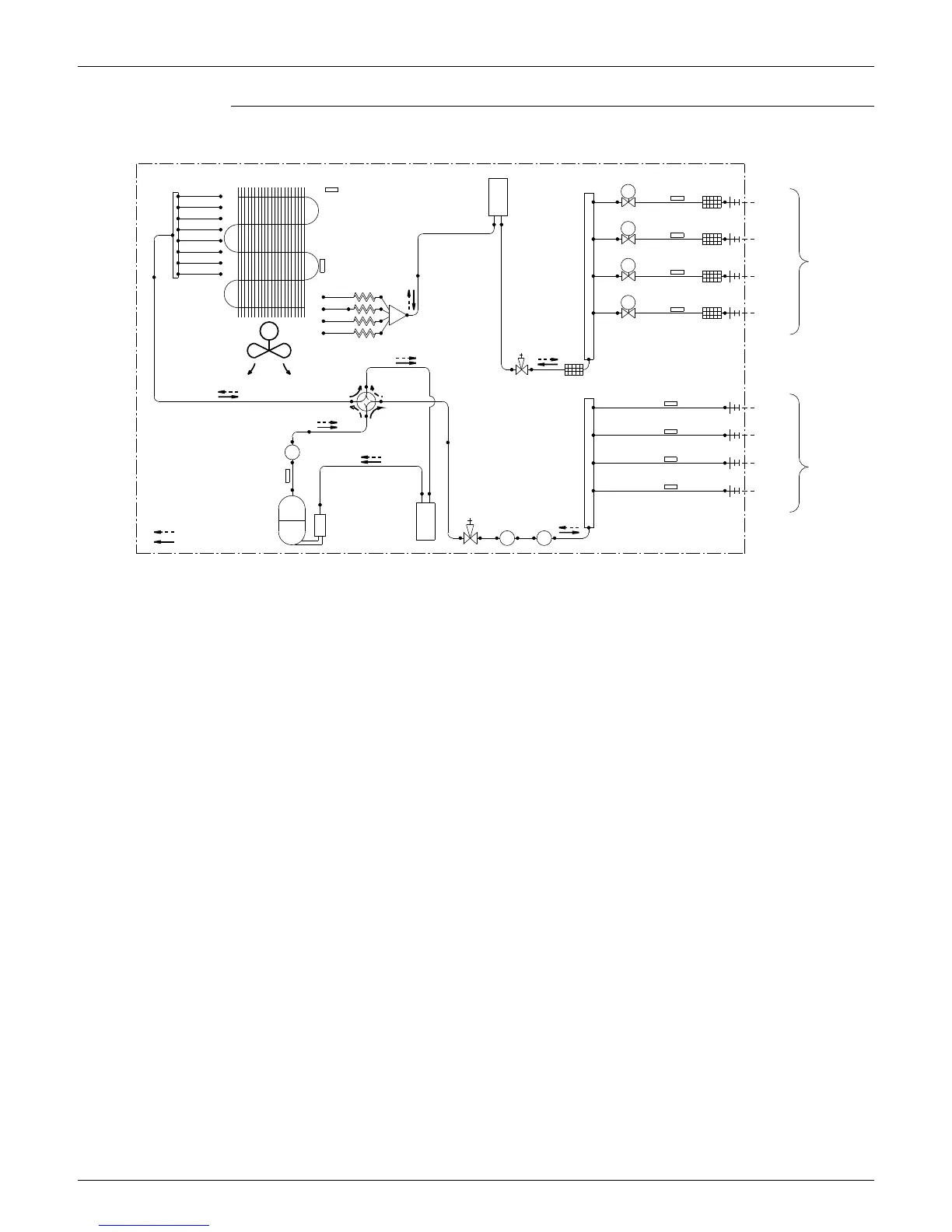

SiUS12-928_B Piping Diagrams
Appendix 272
4MXS32GVJU
COMPRESSOR
1/2CuT
FILTER
HEADER
5/16CuT
5/16CuT
3/8CuT
DC FAN MOTOR
ACCUMULATOR
3/8CuT
1/2CuT
COOLING
CAPILLARY TUBE
5/16CuT
1/2CuT
MUFFLER
5/8CuT
FILTER
ACCUMULATOR
5/16CuT
1/2CuT
5/16CuT
MUFFLER
5/16CuT
5/16CuT
PROPELLER FAN
5/8CuT
5/8CuT
MUFFLER
HEAT EXCHANGER
5/8CuT 5/8CuT
5/16CuT
5/16CuT
3/8CuT
M
REFRIGERANT FLOW
OUTDOOR UNIT
HEATING
5/16CuT
FILTER
HEADER
3/8CuT
FILTER
5/16CuT
5/8CuT
EV
A
DISTRIBUTOR
5/16CuT
RECEIVER
1/2CuT
HEADER
1/2CuT
5/16CuT
FILTER
5/16CuT
5/16CuT
5/8CuT
5/16CuT
EV B
EV C
EV D
FIELD
PIPING
GAS
ROOM D
(5/8CuT)
ROOM C
(5/8CuT)
ROOM B
(1/2CuT)
ROOM A
(3/8CuT)
FIELD
PIPING
LIQUID
ROOM D
(1/4CuT)
ROOM C
(1/4CuT)
ROOM B
(1/4CuT)
ROOM A
(1/4CuT)
LIQUID PIPE
THERMISTOR
(ROOM-A)
LIQUID PIPE
THERMISTOR
(ROOM-B)
LIQUID PIPE
THERMISTOR
(ROOM-C)
LIQUID PIPE
THERMISTOR
(ROOM-D)
MOTOR OPERATED
VALVE (A)
MOTOR OPERATED
VALVE (B)
MOTOR OPERATED
VALVE (C)
MOTOR OPERATED
VALVE (D)
GAS PIPE THERMISTOR
(ROOM-A)
GAS PIPE THERMISTOR
(ROOM-B)
GAS PIPE THERMISTOR
(ROOM-C)
GAS PIPE THERMISTOR
(ROOM-D)
LIQUID LINE
STOP VALVE
GAS LINE
STOP VALVE
DISCHARGE PIPE
THERMISTOR
4-WAY
VALVE
HEAT EXCHANGER(CONDENSER)
THERMISTOR
OUTDOOR TEMPERATURE
THERMISTOR
