Daikin VHF - Vertical Riser Stub-Outs Locations to Unit Knockouts

CritiCal diMensions
www.DaikinApplied.com 17 Vertical Stack WSHP • IM 986-11
Vertical Riser Stub-Outs Locations to Unit
Knockouts

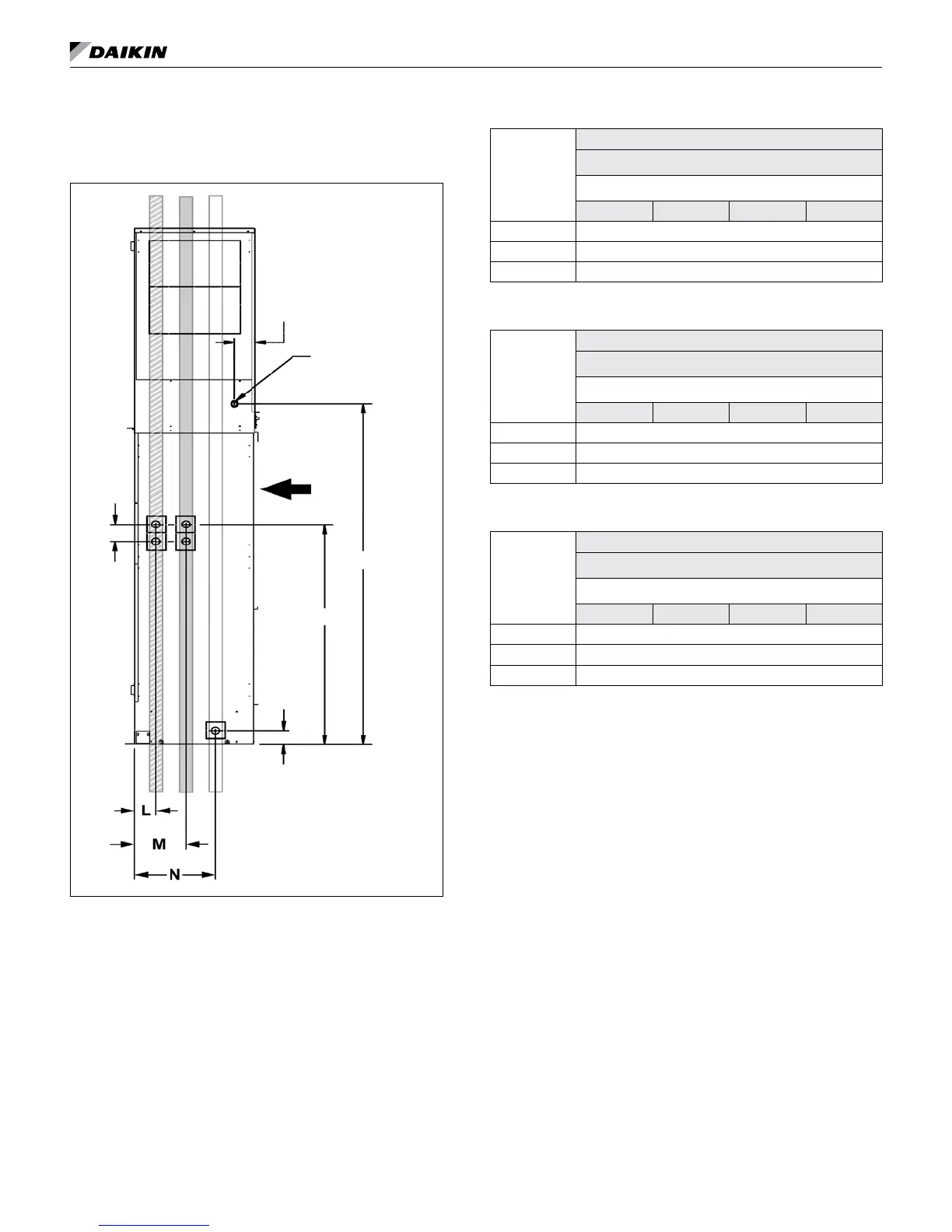

Figure 17: Riser stub-outs knockouts locations
2.38"
37.50"
58.08"
1/2" Conduit Fitting
for Electrical Supply
Unit Size 021-036 = 4.54"
Unit Size 009-018 = 3.125"
Unit Front
Return Air
3"
Table 5: Letter dimensions for Figure 17 (18" x 18" unit)
Dimension
Riser Stub-Outs Locations
18" ˣ 18" Unit - Sizes 009-012
Unit Height
80" 88" 92" 96"
L 3.3"
M 7.9"
N 12.4"
Table 6: Letter dimensions for Figure 17 (18" x 20" unit)
Dimension
Riser Stub-Outs Locations
18" ˣ 20" Unit - Sizes 015 & 018
Unit Height
80" 88" 92" 96"
L 3.3"
M 7.9"
N 12.4"
Table 7: Letter dimensions for Figure 17 (24" x 24" unit)
Dimension
Riser Stub-Outs Locations
24" ˣ 24" Unit - Sizes 021-036
Unit Height
80" 88" 92" 96"
L 3.13"
M 7.63"
N 12.13"
