Performance For Constant Torque EC Motor (Sizes 009 & 012)
Table 22: Fan settings and performance
Unit Size
I/O Expansion Module
Setting
External Static Pressure (inches of water column)
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4
009
A 430 410 390 370 350 340 320 300 280
B 420 400 380 360 340 320 300 270 250
C 350 330 310 290 270 250 230 210 190
D 370 340 310 280 250 220 190 160 130
012
A 450 430 410 390 370 340 320 300 280
B 420 400 380 360 340 310 290 270 250
C 400 370 350 330 310 290 260 240 220
D 360 330 300 270 240 210 180 150 120
Table 23: I/O expansion module jumper configuration
Setting
I/O Expansion Module Conguration
JP1 JP2
A
Open Open
B
Shorted Open
C
Open Shorted
D
Shorted Shorted
Note: Refer to Figure 56 for location of jumpers JP1 and JP2 on the I/O expansion module.

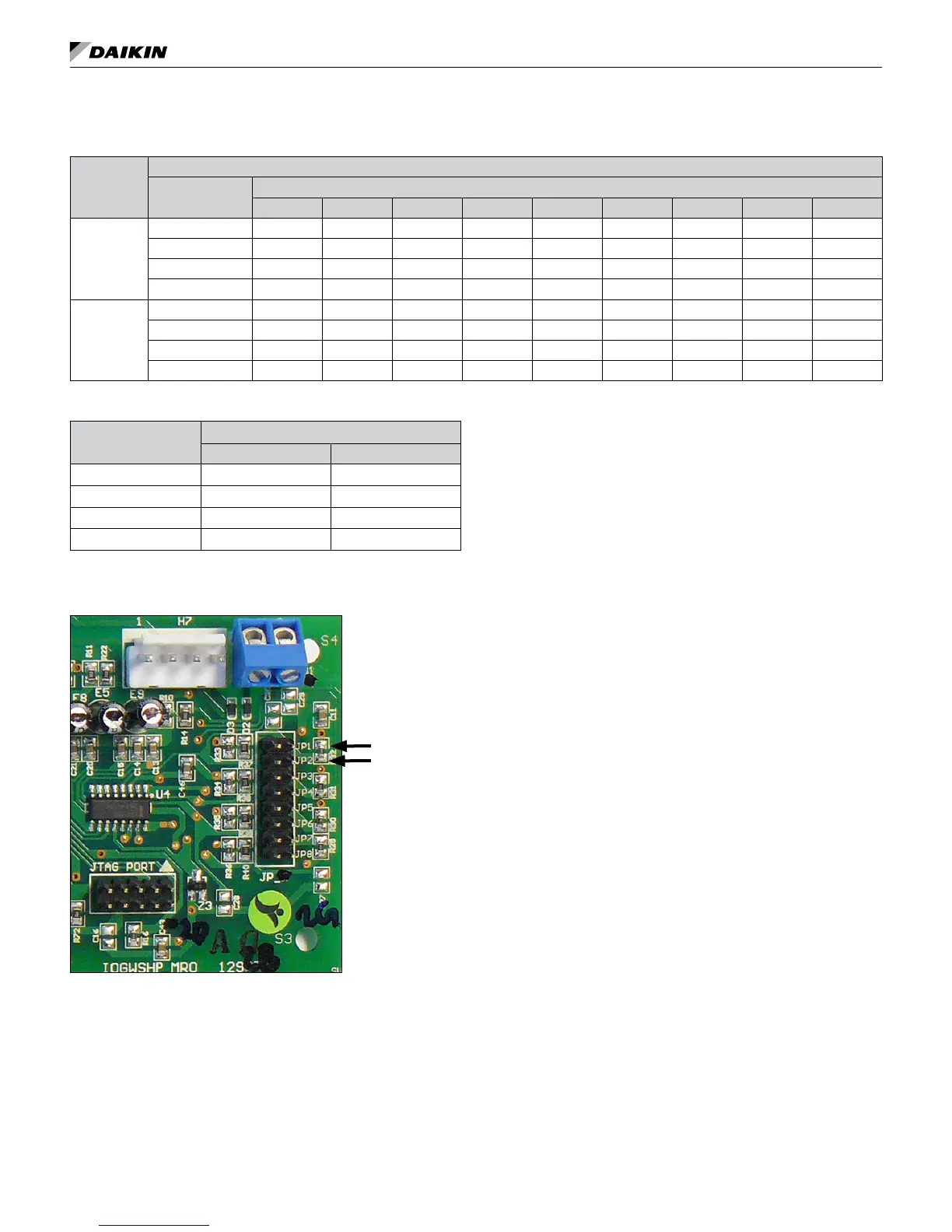

Figure 56: JP1 & JP2 location on the I/O expansion module
JP1
JP2
