diMensional data
Model VHF & VHW – 18" × 18" Cabinet – Size 009-012
Dimensions

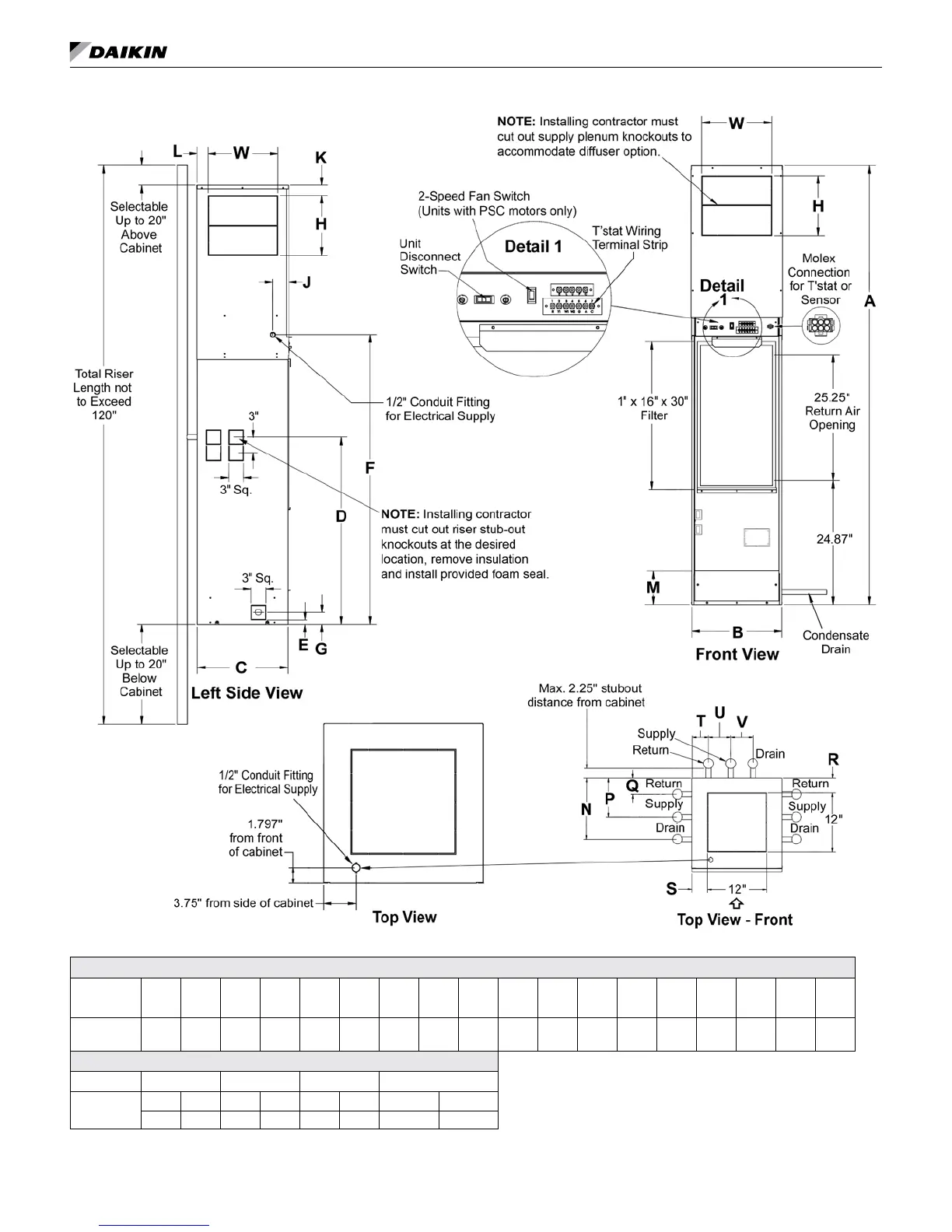

Unit Size 009–018 (18" ˣ 18") Cabinet (Dimensions in inches)
Unit Height
‟A”
B C D E F G J K L M N P Q R S T U V
80, 88,
92, 96
18.07 18.11 37.50 0.88 58.09 2.38 3.125 2.0 2.0 6.72 12.4 7.9 3.3 3.0 3.0 3.3 4.5 4.5
Discharge Openings (Dimensions in inches)
Unit Size Single Double Triple Single- Top Opening
009–012
W H W H W H W H
14 16 14 8 NR NR 12 12
Notes: NR = Not Recommended
80" high cabinet not available with side discharge, top discharge only.
