CritiCal diMensions
IM 986-11 • Vertical Stack WSHP 18 www.DaikinApplied.com
Return Air Panel Door(s) Dimensions
Location of studs in relation to the unit and the return air
panel door are critical for proper installation and t up. When
installed, the return air grille gasket must compress and seal
completely against the outer edge of the cabinet and around
the inner front panel and lter bracket. Refer to "Installing The
Return Air Panel Door" on page 32 and Figure 15 on page
15.

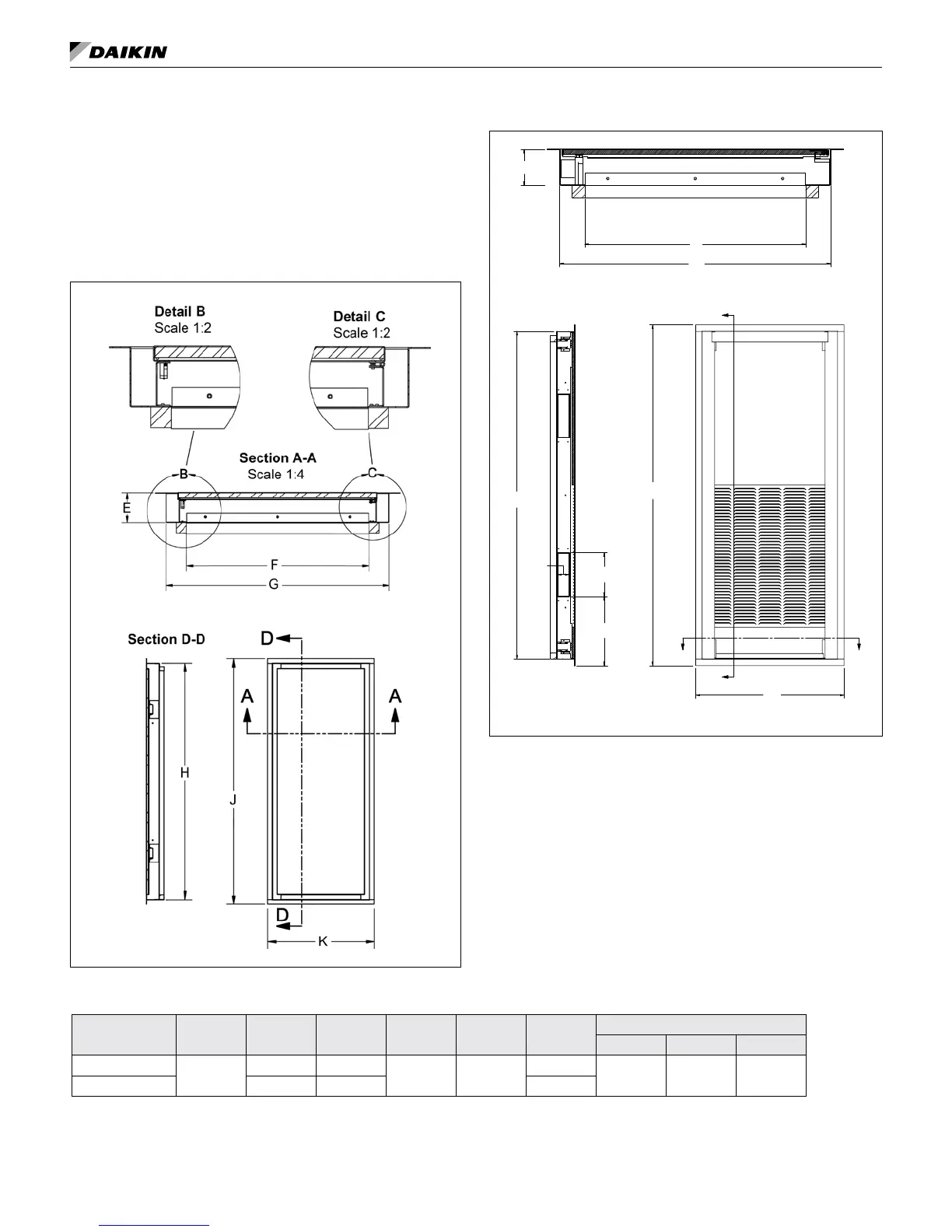

Figure 18: Hinged panel door
Figure 19: Louvered panel door
K
G
E
F
Section D-D
Scale 1:4
Section B-B
Scale 1:2
J
B
B
D
D
H
L
M
N
Dimensions
Uniit Size E F G H J K
Outdoor Air Opening
L M N
009-018
2.92"
17.69" 21.69"
52.53" 54.60"
23.75"
1.88" 7.00" 11.08"
021-036 23.69" 27.69" 29.75"
