Dalsa Genie M640 - Installation and Operational Problems

Genie Monochrome Series-GigE Vision Camera Troubleshooting • 103
Installation Issues and Functional Problems
This section covers issues indicated by the GigE server tray icon shows a warning symbol.

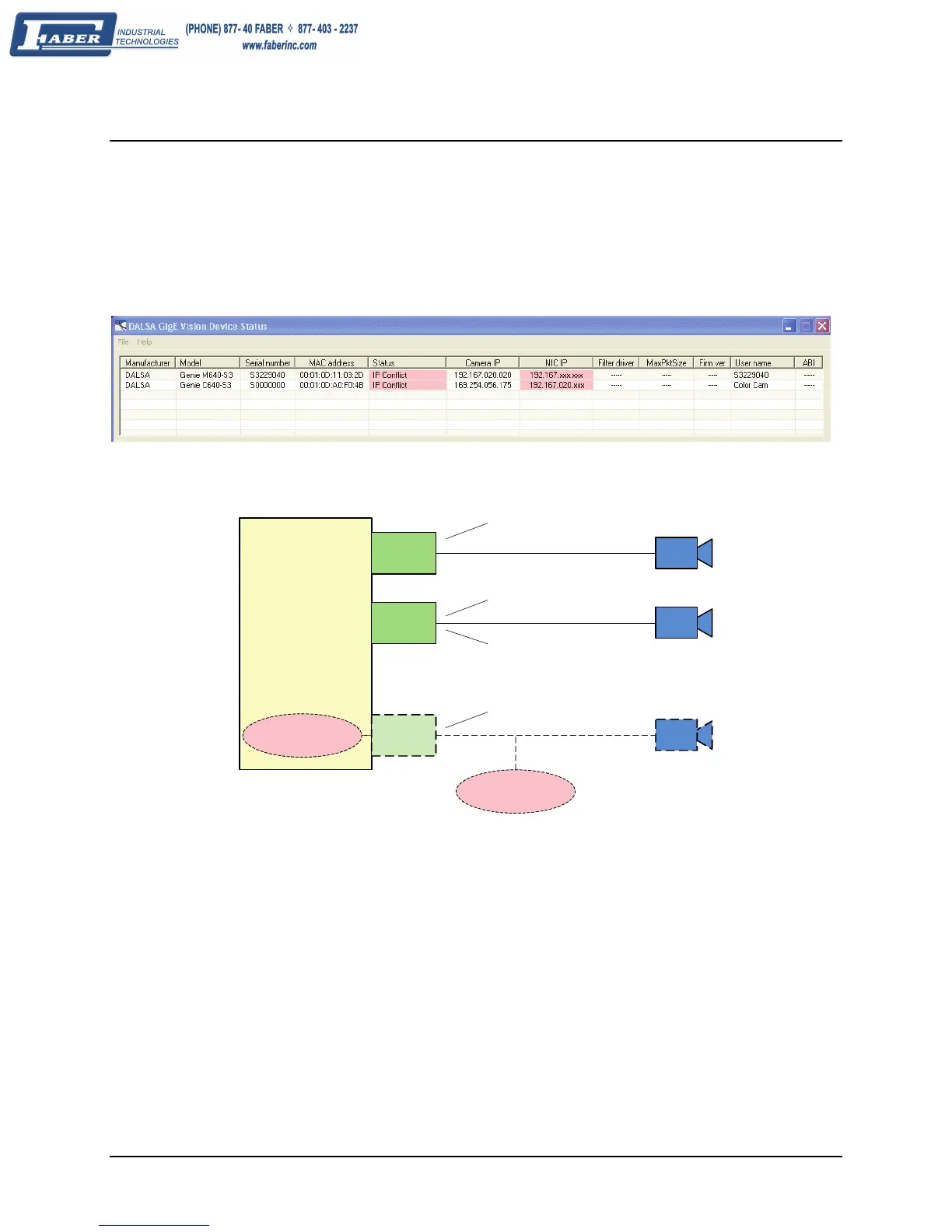

GigE Server Warning Example 1a: IP error with multiple NICs
The screenshot below shows an IP conflict error due to two (or more) NICs that are all set to LLA mode. In this
case both NICs are assigned the same IP address preventing communication with any connected Genie.
• When multiple NICs are used, only one can be set to LLA mode. A second NIC connected to Genie must use
the persistent IP mode or must have a DHCP server on that subnet. The following illustration shows such a
setup.
Host Computer
NIC 1
NIC 2
NIC n
LLA Mode (only 1 NIC)
LLA Mode (error)
Persistence Mode - OK
DHCP Server
Software
DHCP Server
Hardware
DHCP Options
• For more information see "
Multiple Camera Issues" on page 113, "Using Genie with Ethernet Switches" on
page 17, and "
IP Configuration Mode Details" on page 77.
