Genie Monochrome Series-GigE Vision Camera
Operational Reference
•
55

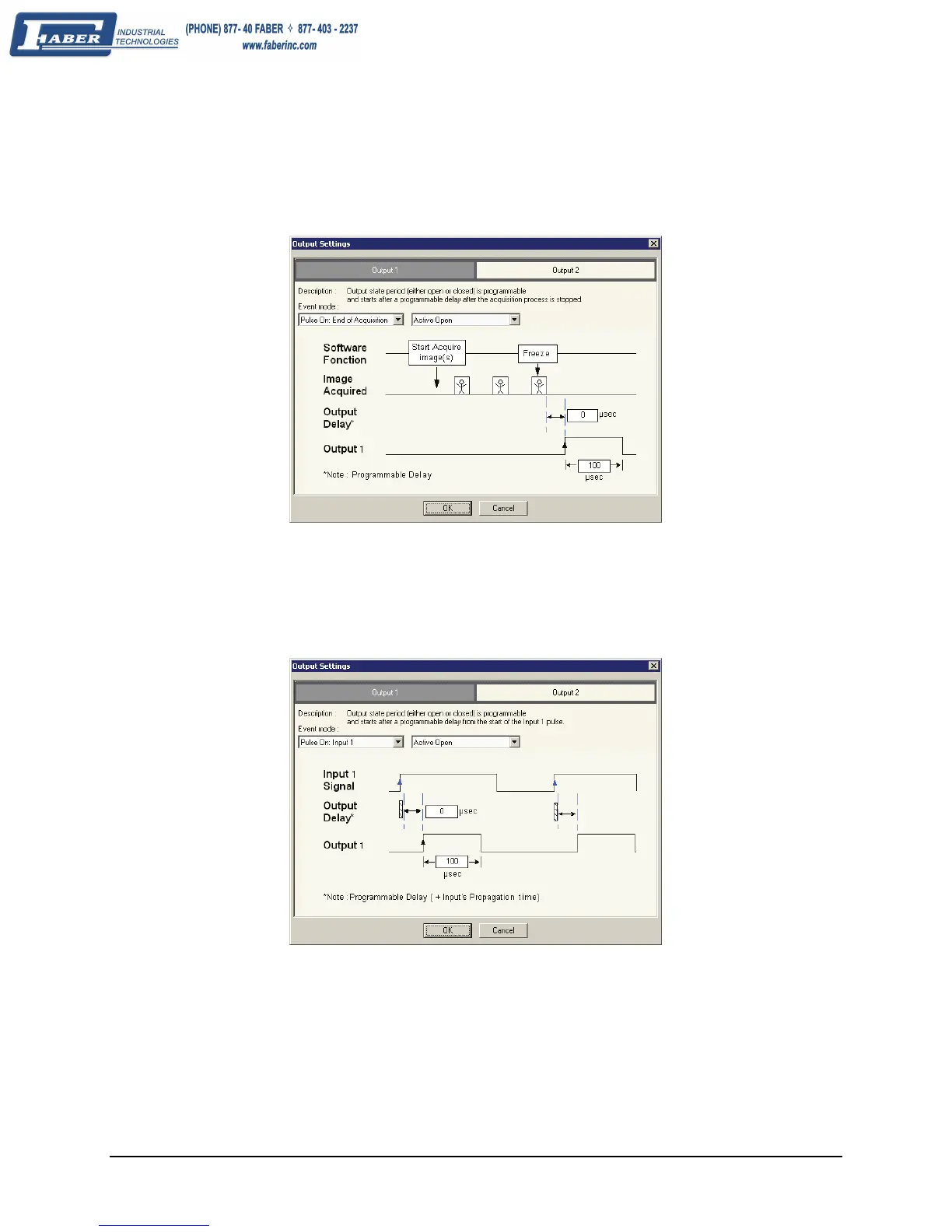

Pulse On End of Acquisition Event Mode
The Pulse On End of Acquisition event
mode generates an out
put signal when the acquisit
ion process is term
inated
using software.
Pulse On Input 1 or Input 2 Event Modes
The Pulse On Input 1 or Input 2 event m
odes generate an output signal
when the specified input si
gnal is asserted.
