88 • Sapera CamExpert Guide Genie Monochrome Series-GigE Vision Camera

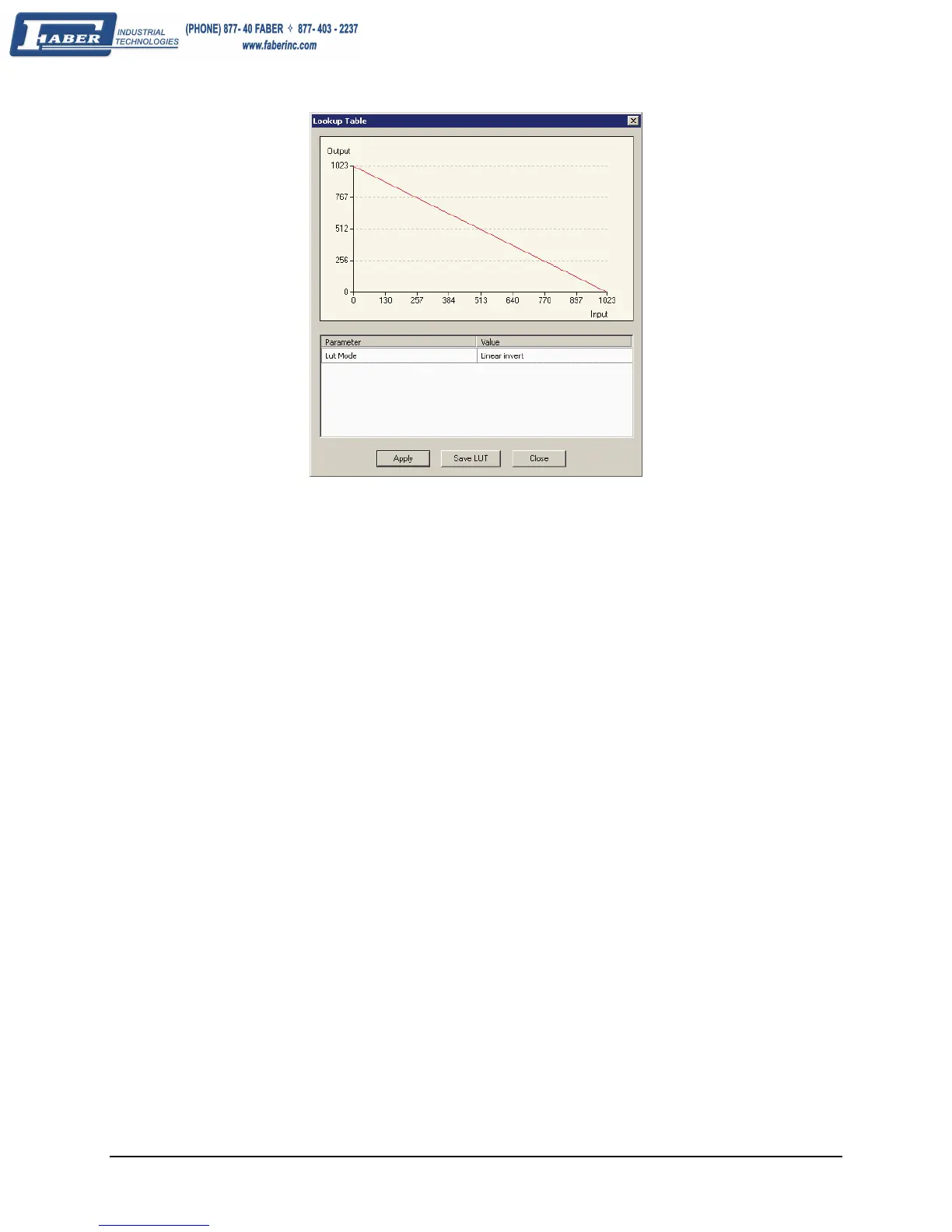

10-bit Invert LUT
CamExpert available LUT examples are briefly described below. The LUT function graphic simplifies
understanding the operation especially when user settings modify the LUT function.
• Normal (default): modifies all LUT entries using a linear mapping such that a gray level input is equal to
the output
• Arithmetic operation: modifies all LUT entries using an arithmetic operation
• Binary pattern: modifies some LUT entries based on a binary pattern
• Boolean operation: modifies all LUT entries using a Boolean operation
• Gamma correction: modifies all LUT entries using Gamma correction function
• Linear invert: modifies all LUT entries using a linear mapping with a negative slope
• Position shift: modifies LUT entries with a zero position offset
• Bit shift: modifies LUT entries with a binary bit shift
• Slope within range: modifies part of a LUT with a linear mapping
• Single Threshold: modifies all LUT entries using a threshold operation
• Double Threshold: modifies all LUT entries using a dual level threshold operation
