Dalsa Piranha 2 Series User Manual

13 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
!
2

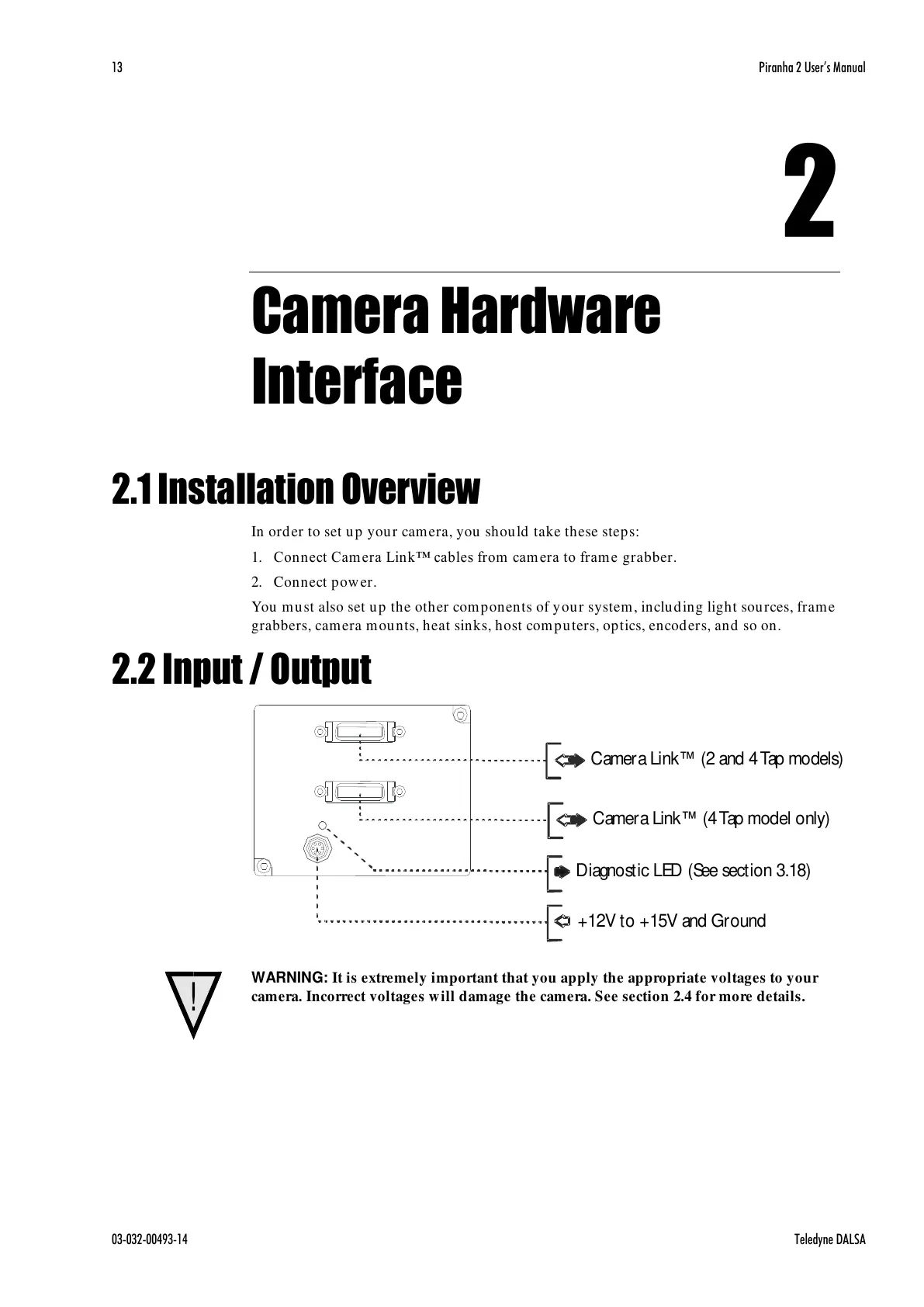

Camera Hardware
Interface
2.1 Installation Overview
In order to set up your camera, you should take these steps:
1. Connect Cam era Link™ cables from camera to frame grabber.
2. Connect power.
You must also set up the other components of your system, including light sources, frame
grabbers, camera mounts, heat sinks, host computers, optics, encoders, and so on.
2.2 Input / Output
+12V to +15V and Ground
C
a
m
e
r
a
L
i
n
k
™
(
2
a
n
d
4
T
a
p
m
o
d
e
l
s
)
C
a
m
e
r
a
L
i
n
k
™
(
4
T
a
p
m
o
d
e
l
o
n
l
y
)
Diagnostic LED (See section 3.18)
WARNING: It is extremely important that you apply the appropriate voltages to your
camera. Incorrect voltages will damage the camera. See section 2.4 for more details.
