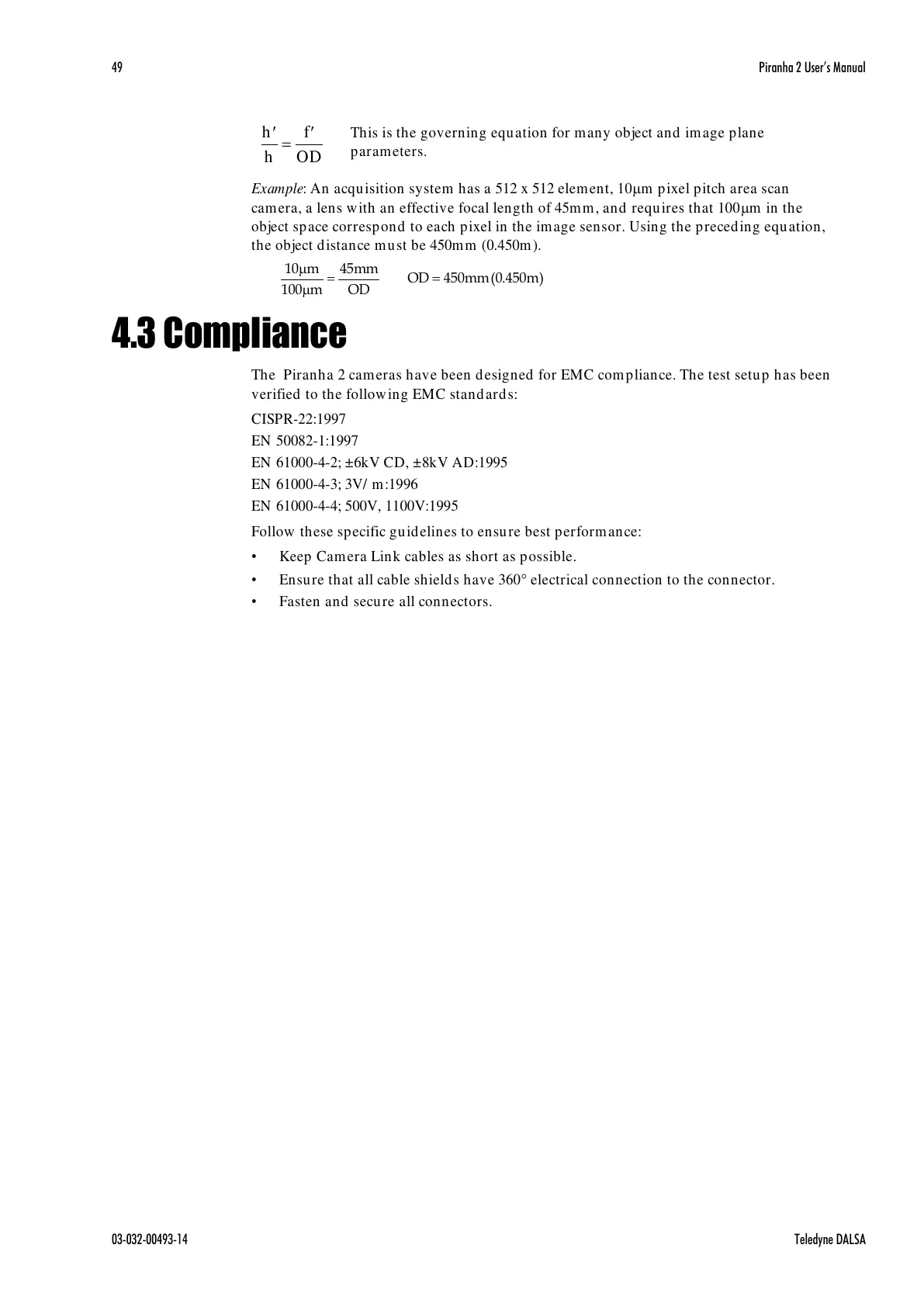

49 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA



h
h
f
OD
This is the governing equation for many object and image plane
parameters.
Example: An acquisition system has a 512 x 512 element, 10m pixel pitch area scan
camera, a lens with an effective focal length of 45mm, and requires that 100m in the
object space correspond to each pixel in the image sensor. Using the preceding equation,
the object distance must be 450mm (0.450m).
10
100
45
450 0 450


m
m
mm
OD
OD mm m  ( . )
4.3 Compliance
The Piranha 2 cameras have been designed for EMC compliance. The test setup has been
verified to the following EMC standards:
CISPR-22:1997
EN 50082-1:1997
EN 61000-4-2; ±6kV CD, ±8kV AD:1995
EN 61000-4-3; 3V/ m:1996
EN 61000-4-4; 500V, 1100V:1995
Follow these specific guidelines to ensure best performance:
• Keep Camera Link cables as short as possible.
• Ensure that all cable shields have 360 electrical connection to the connector.
• Fasten and secure all connectors.
