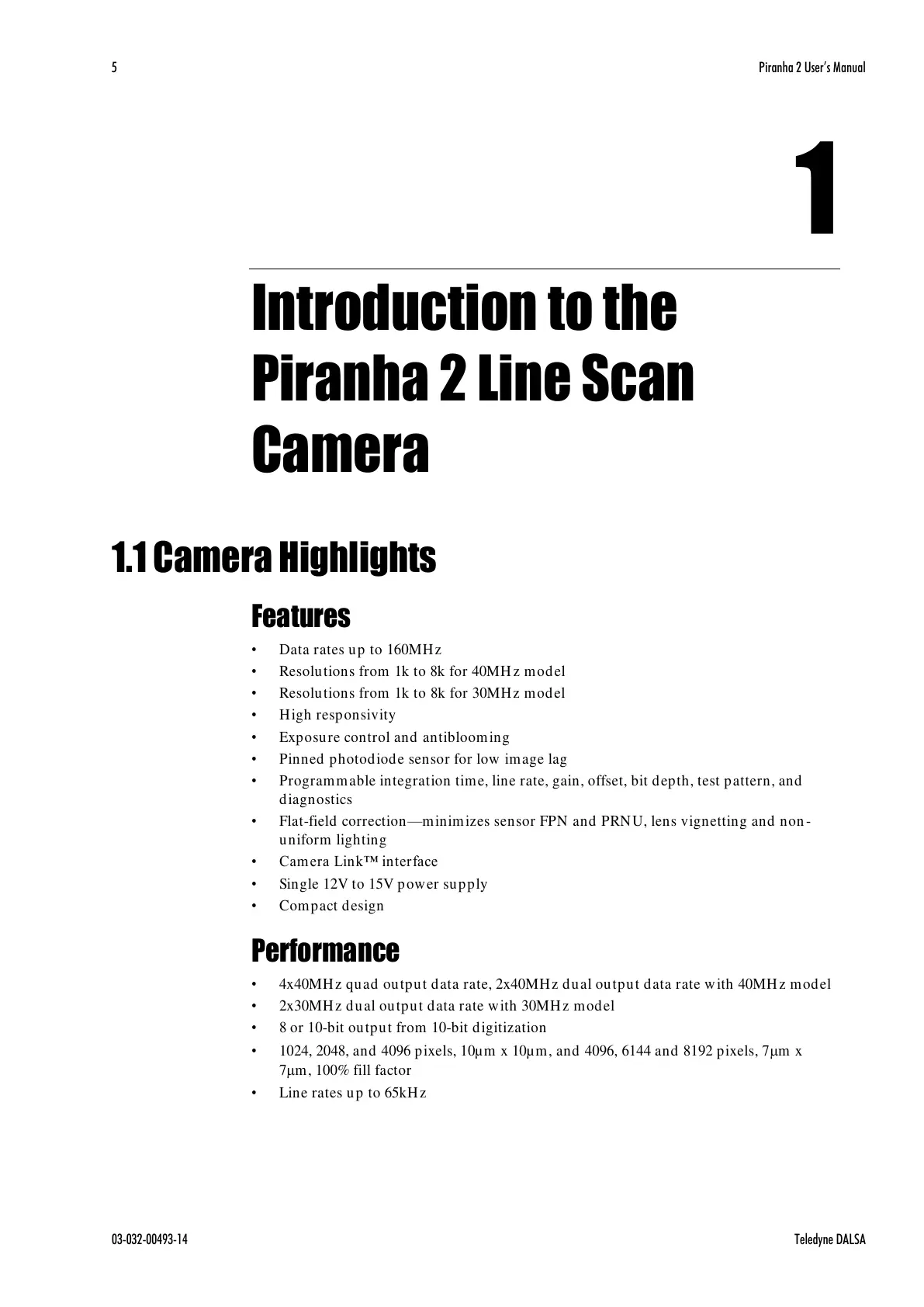

Introduction to the
Piranha 2 Line Scan
Camera
1.1 Camera Highlights
Features
• Data rates up to 160MHz
• Resolutions from 1k to 8k for 40MHz model
• Resolutions from 1k to 8k for 30MHz model
• High responsivity
• Exposure control and antiblooming
• Pinned photodiode sensor for low image lag
• Programmable integration time, line rate, gain, offset, bit depth, test pattern, and
diagnostics
• Flat-field correction—minimizes sensor FPN and PRNU, lens vignetting and non-
uniform lighting
• Cam era Link™ interface
• Single 12V to 15V power supply
• Compact design
Performance
• 4x40MHz quad output data rate, 2x40MHz dual output data rate with 40MHz model
• 2x30MHz dual output data rate with 30MHz model
• 8 or 10-bit output from 10-bit digitization
• 1024, 2048, and 4096 pixels, 10µm x 10µm, and 4096, 6144 and 8192 pixels, 7m x
7m, 100% fill factor
• Line rates up to 65kHz
