Dalsa Piranha 2 Series - Timing

19 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
2.7 Timing

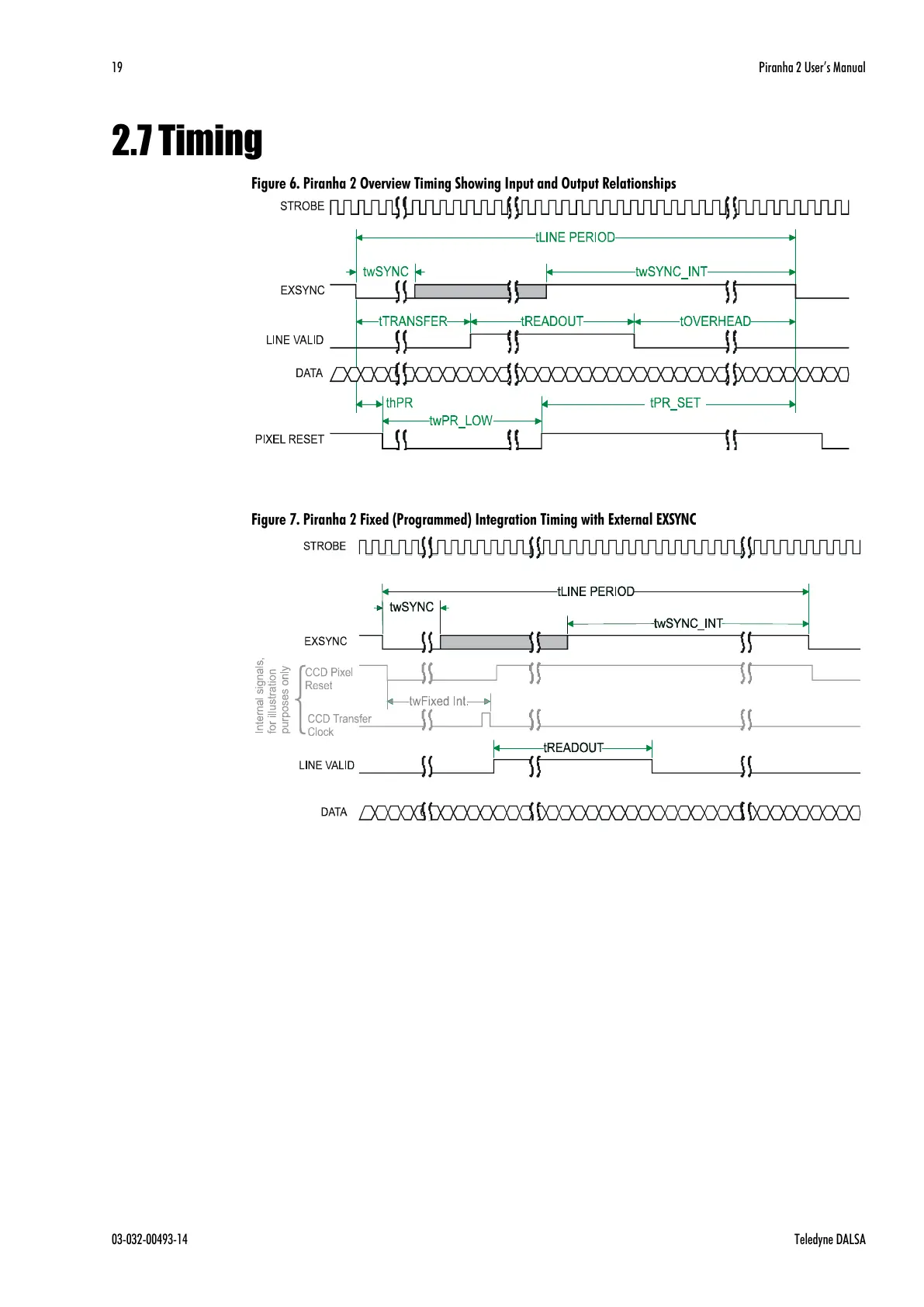

Figure 6. Piranha 2 Overview Timing Showing Input and Output Relationships
Figure 7. Piranha 2 Fixed (Programmed) Integration Timing with External EXSYNC
