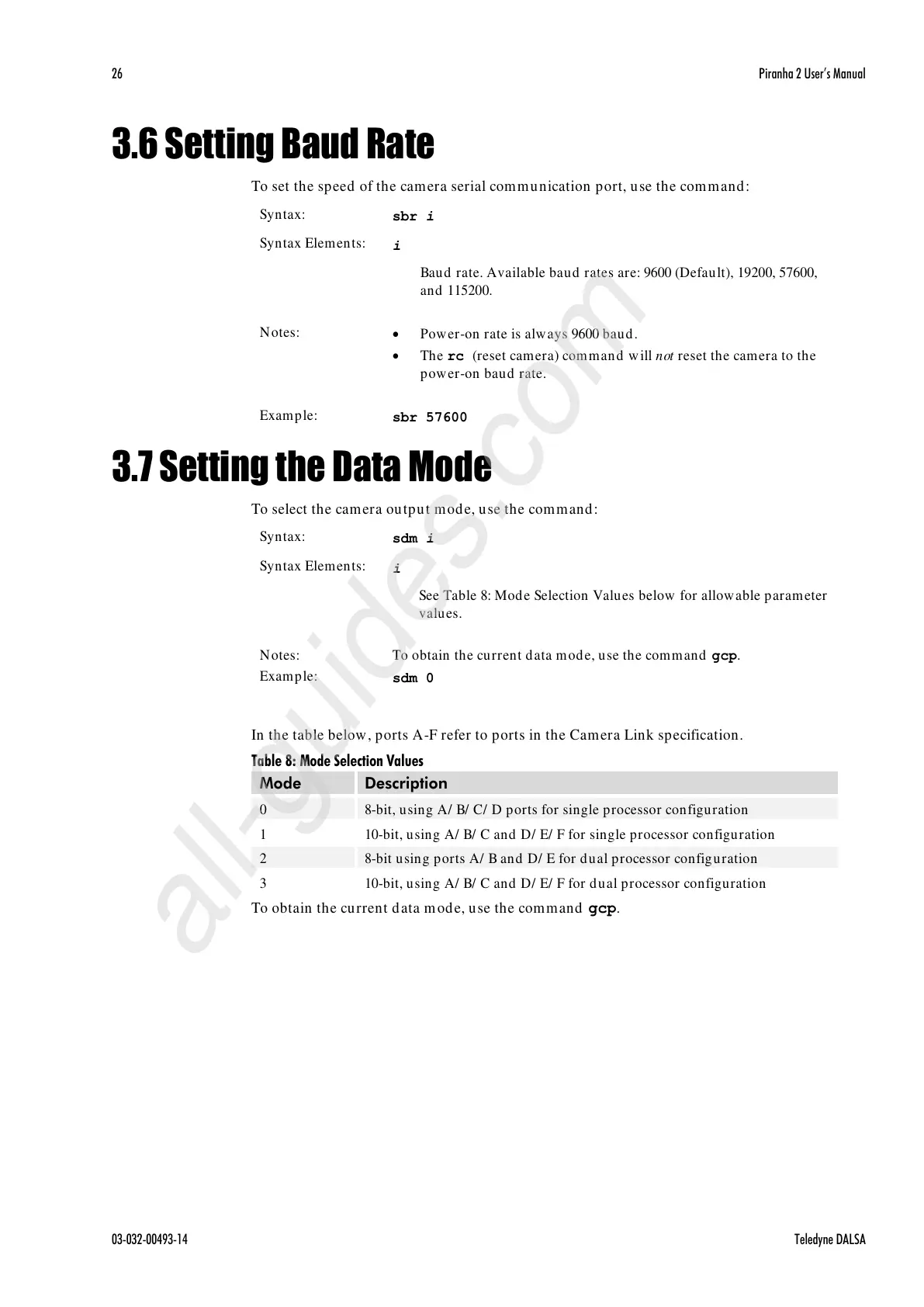

26 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
3.6 Setting Baud Rate
To set the speed of the camera serial communication port, use the command:
Syntax:
sbr i
Syntax Elements:
i
Baud rate. Available baud rates are: 9600 (Default), 19200, 57600,
and 115200.
Notes:
 Power-on rate is always 9600 baud.
 The rc (reset camera) command will not reset the camera to the
power-on baud rate.
Example:
sbr 57600
3.7 Setting the Data Mode
To select the camera output mode, use the command:
Syntax:
sdm i
Syntax Elements:
i
See Table 8: Mode Selection Values below for allowable parameter
values.
Notes:
To obtain the current data mode, use the command gcp.
Example:
sdm 0
In the table below, ports A-F refer to ports in the Camera Link specification.
Table 8: Mode Selection Values
Mode
Description
0
8-bit, using A/ B/ C/ D ports for single processor configuration
1
10-bit, using A/ B/ C and D/ E/ F for single processor configuration
2
8-bit using ports A/ B and D/ E for dual processor configuration
3
10-bit, using A/ B/ C and D/ E/ F for dual processor configuration
To obtain the current data mode, use the command gcp.
