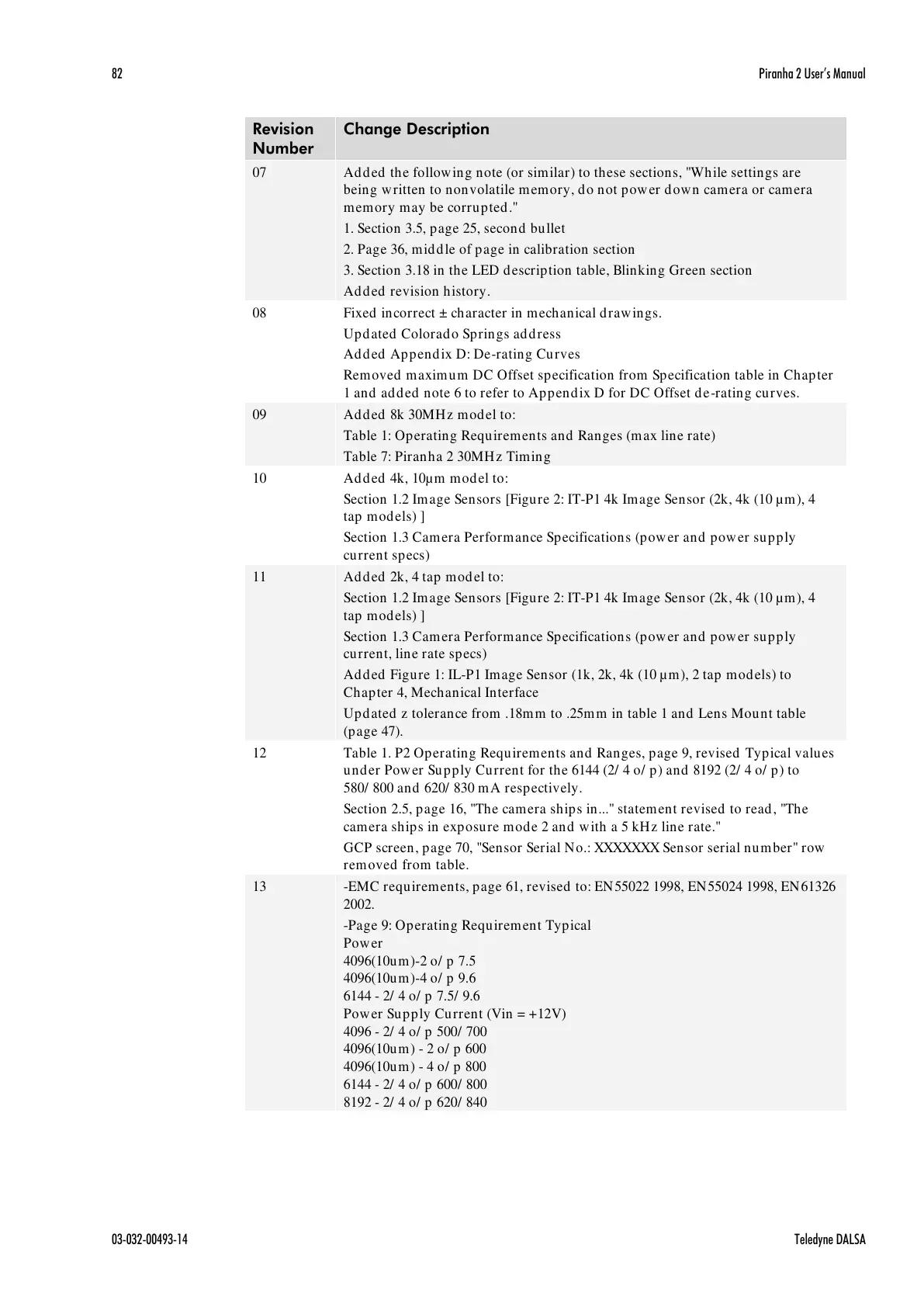

82 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
Added the following note (or similar) to these sections, "While settings are
being written to nonvolatile memory, do not power down camera or camera
memory may be corrupted."
1. Section 3.5, page 25, second bullet
2. Page 36, middle of page in calibration section
3. Section 3.18 in the LED description table, Blinking Green section
Added revision history.
Fixed incorrect ± character in mechanical drawings.
Updated Colorado Springs address
Added Appendix D: De-rating Curves
Removed maximum DC Offset specification from Specification table in Chapter
1 and added note 6 to refer to Appendix D for DC Offset de-rating curves.
Added 8k 30MHz model to:
Table 1: Operating Requirements and Ranges (max line rate)
Table 7: Piranha 2 30MHz Timing
Added 4k, 10µm model to:
Section 1.2 Image Sensors [Figure 2: IT-P1 4k Image Sensor (2k, 4k (10 µm), 4
tap models) ]
Section 1.3 Camera Performance Specifications (power and power supply
current specs)
Added 2k, 4 tap model to:
Section 1.2 Image Sensors [Figure 2: IT-P1 4k Image Sensor (2k, 4k (10 µm), 4
tap models) ]
Section 1.3 Camera Performance Specifications (power and power supply
current, line rate specs)
Added Figure 1: IL-P1 Image Sensor (1k, 2k, 4k (10 µm), 2 tap models) to
Chapter 4, Mechanical Interface
Updated z tolerance from .18mm to .25mm in table 1 and Lens Mount table
(page 47).
Table 1. P2 Operating Requirements and Ranges, page 9, revised Typical values
under Power Supply Current for the 6144 (2/ 4 o/ p) and 8192 (2/ 4 o/ p) to
580/ 800 and 620/ 830 mA respectively.
Section 2.5, page 16, "The camera ships in..." statement revised to read, "The
camera ships in exposure mode 2 and with a 5 kHz line rate."
GCP screen, page 70, "Sensor Serial No.: XXXXXXX Sensor serial number" row
removed from table.
-EMC requirements, page 61, revised to: EN55022 1998, EN55024 1998, EN61326
2002.
-Page 9: Operating Requirement Typical
Power
4096(10um)-2 o/ p 7.5
4096(10um)-4 o/ p 9.6
6144 - 2/ 4 o/ p 7.5/ 9.6
Power Supply Current (Vin = +12V)
4096 - 2/ 4 o/ p 500/ 700
4096(10um) - 2 o/ p 600
4096(10um) - 4 o/ p 800
6144 - 2/ 4 o/ p 600/ 800
8192 - 2/ 4 o/ p 620/ 840
