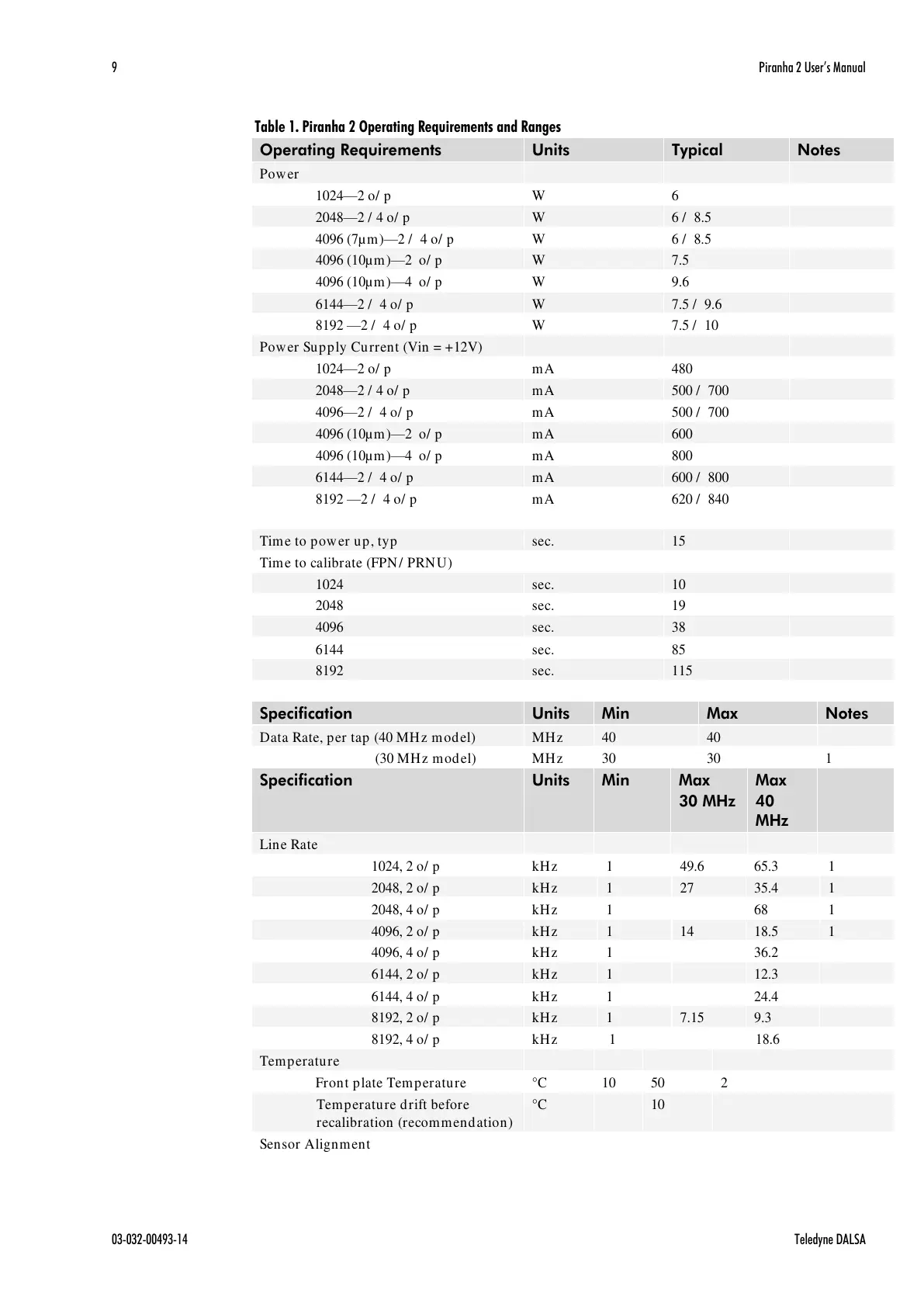

9 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
Table 1. Piranha 2 Operating Requirements and Ranges
Operating Requirements
Units
Typical
Notes
Power
1024—2 o/ p
W
6
2048—2 / 4 o/ p
W
6 / 8.5
4096 (7µm)—2 / 4 o/ p
W
6 / 8.5
4096 (10µm)—2 o/ p
W
7.5
4096 (10µm)—4 o/ p
W
9.6
6144—2 / 4 o/ p
W
7.5 / 9.6
8192 —2 / 4 o/ p
W
7.5 / 10
Power Supply Current (Vin = +12V)
1024—2 o/ p
mA
480
2048—2 / 4 o/ p
mA
500 / 700
4096—2 / 4 o/ p
mA
500 / 700
4096 (10µm)—2 o/ p
mA
600
4096 (10µm)—4 o/ p
mA
800
6144—2 / 4 o/ p
mA
600 / 800
8192 —2 / 4 o/ p
mA
620 / 840
Time to power up, typ
sec.
15
Time to calibrate (FPN/ PRNU)
1024
sec.
10
2048
sec.
19
4096
sec.
38
6144
sec.
85
8192
sec.
115
Specification
Units
Min
Max
Notes
Data Rate, per tap (40 MHz model)
MHz
40
40
(30 MHz model)
MHz
30
30
1
Specification
Units
Min
Max
30 MHz
Max
40
MHz
Line Rate
1024, 2 o/ p
kHz
1
49.6
65.3
1
2048, 2 o/ p
kHz
1
27
35.4
1
2048, 4 o/ p
kHz
1
68
1
4096, 2 o/ p
kHz
1
14
18.5
1
4096, 4 o/ p
kHz
1
36.2
6144, 2 o/ p
kHz
1
12.3
6144, 4 o/ p
kHz
1
24.4
8192, 2 o/ p
kHz
1
7.15
9.3
8192, 4 o/ p
kHz
1
18.6
Temperature
Front plate Temperature
°C
10
50
2
Temperature drift before
recalibration (recommendation)
°C
10
Sensor Alignment
