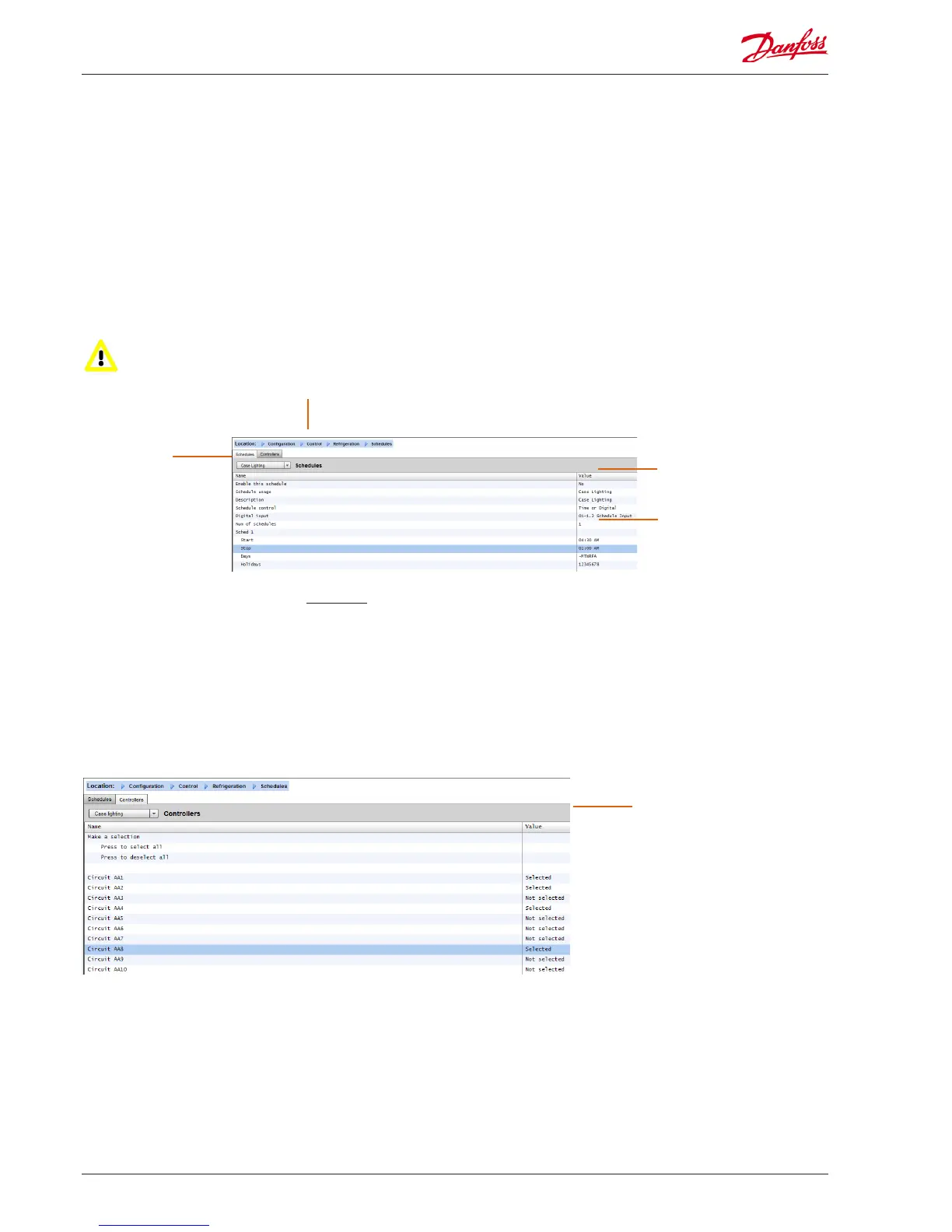

The example screen below highlights the dierent areas of sched-
ule conguration, in this example the [Case Lights] schedule has
been set to start at 04:00AM until 01:00AM based on Time [AK-SM
time] or a Digital Input. For this example the Digital Input had
already been dened under the Miscellaneous ON/OFF section,
using AK I/O input 01-1.1. The schedule will now become true
(ON) if either the Digital switch is made OR the Time falls between
the set Start / Stop times.
The example also has active schedule days seen as -MTWRFA.
Sunday (S) has been deselected (-) therefore the schedule is only
relevant Monday -> Saturday. I.E. S= Sunday, M=Monday,
T=Tuesday, W=Wednesday, R=Thursday, F=Friday, A=Saturday.
After the schedule has been created the associated circuit [Evap]
controllers must be selected - do this via the Controllers tab.
Note: A start / stop time of 12:00AM - 12:00AM = always ON
Set to YES to enable schedule
Use drop down box to
select other schedules
or use ‘Prev’ ‘Next’ keys
on the local key pad
Press the enter key to select
the pre-dened ON/OFF input
To associate controllers with the schedule,
use the Controllers tab
Navigate to the Controllers tab and any congured evaporator
controllers will be listed (if no controllers are listed make sure the
appropriate controller type is set, as dened in the main control
page). Navigate to the required controller and double click the
relevant line. This will toggle the controller ‘Selected’ or ‘Not
Selected’. Any controller set as ‘Selected’ will become part of the
schedule.
Once all conguration of the schedule is complete, navigate
back to the Schedules tab & select ‘Enable this schedule’ to YES
Use the ‘Enter’ key to select or
not select any controller(s).
40 User Guide Lit. no. USCO.PI.R1.E1.02 © Danfoss 07-2013 AK-SM 850
