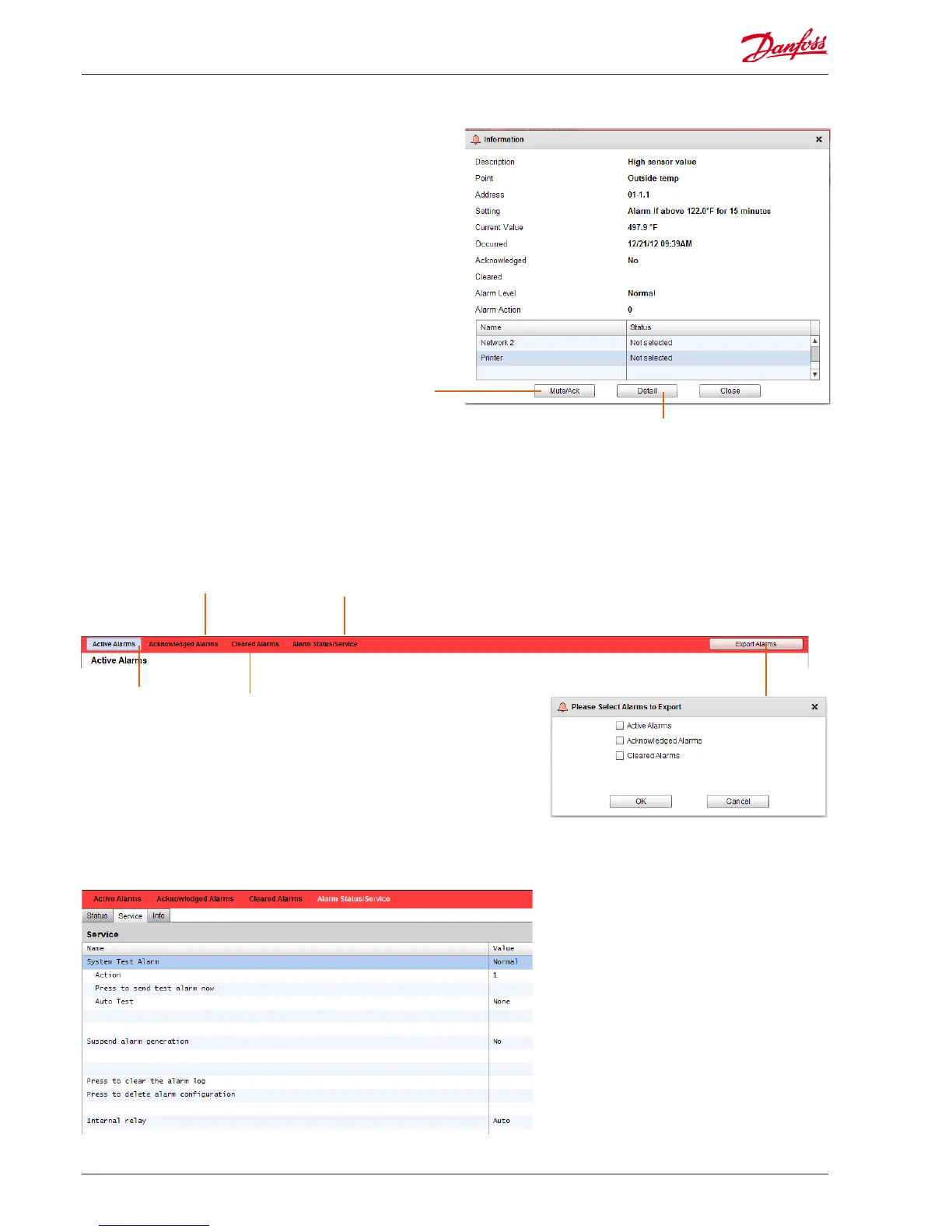

Managing alarms:
Any active alarms will be shown in the Dashboard alarm panel.
To view more details regarding the alarm double click the
relevant alarm line. A alarm info box will appear with further
details regarding the alarm.
In addition to more information, the info box also allows the
authorized user to Mute/Acknowledge the alarm and to jump
to the device detail screen.
Click the detail button to jump to the device
detail screen
Use the Mute/Ack button to
acknowledge the alarm. When
pressed the alarm will ‘move’ to
the Acknowledge list
Global active alarm list
Global acknowledge list
Global cleared alarm list
Status and Service screens
Export Alarms
Export to CSV le
Global alarm screen
Service screen
Alarm info pop up
Under the service screen tab, test alarms can be congured and set.
To view all system alarms (known as global alarms) use the
Alarms tab (found on the main menu)
64 User Guide Lit. no. USCO.PI.R1.E1.02 © Danfoss 07-2013 AK-SM 850
