Carefully replace the keypad, ensure that it securely snaps into
place

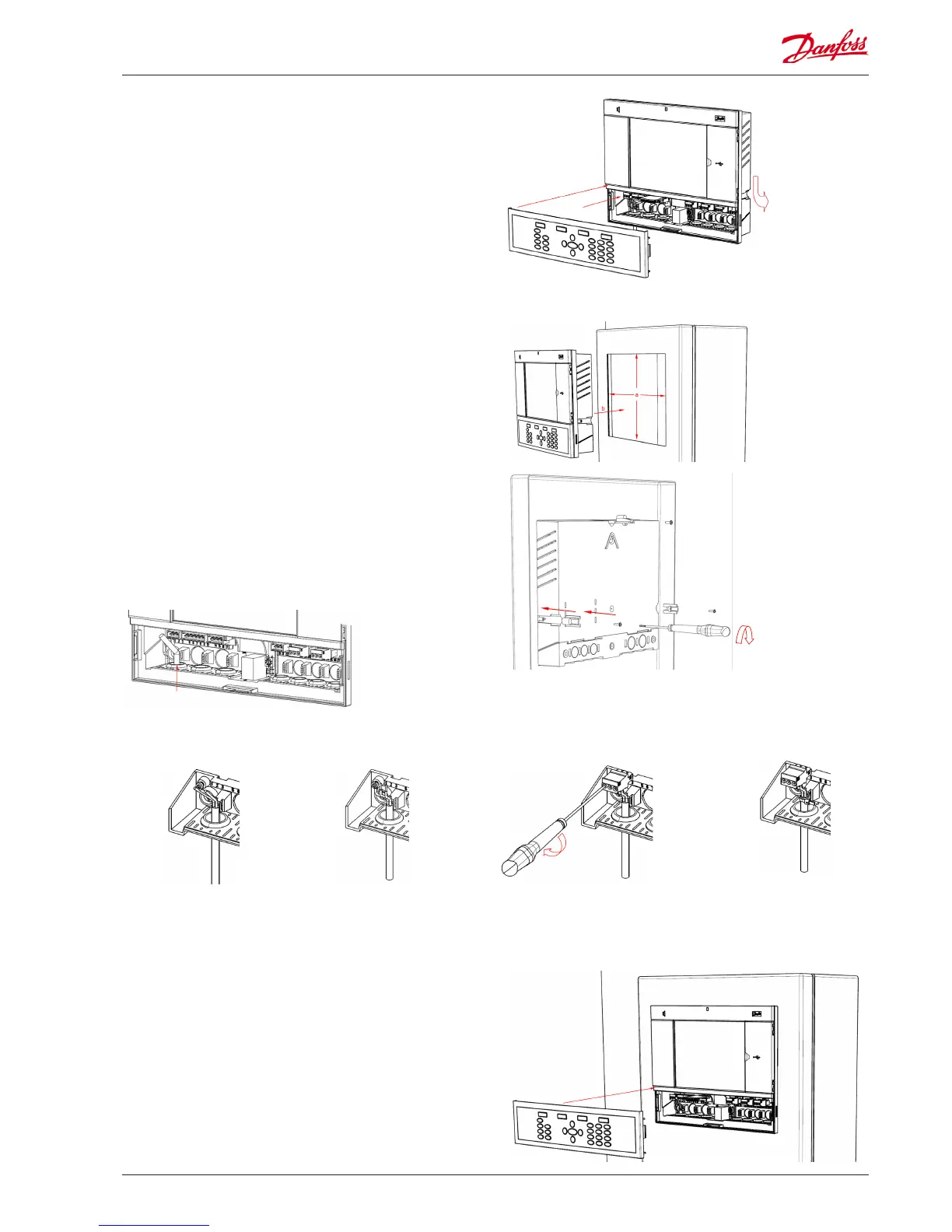

Wall Mounting- Panel recessed
From the front:
A hole of the size 280 x 220mm is machined
The AK-SM 850 is inserted in the hole
From the backside:
Slide the 3 fastener into the housing part
The screws are inserted into the fasteners
Secure the unit by tightening the screws
Remove Technician lid
From the back, push cables inside the housing
Strip the cables Strip the wires
Secure wires in connectors by screwdriver
Strain relief the cables
Carefully replace the keypad, ensure that it securely snaps into
place
AK-SM 850 User Guide Lit. no. USCO.PI.R1.E1.02 © Danfoss 07-2013 7
