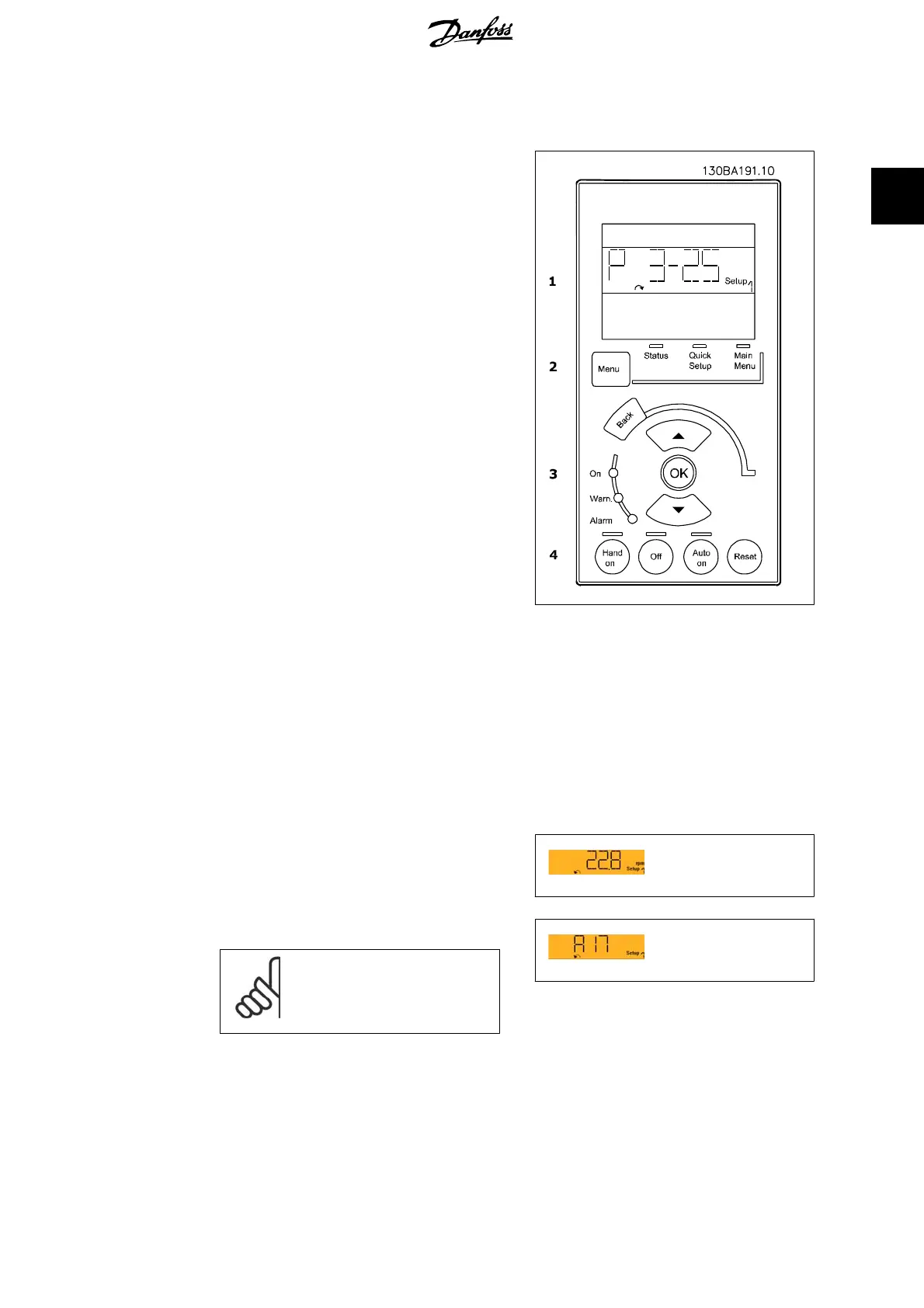

2.1.17. How to Programme on the Numerical Local Control Panel
The following instructions are valid for the Nu-
merical LCP (LCP 101).
The control panel is divided into four function-
al groups:
1. Numerical display.
2. Menu keys and indicator lights -
changing parameters and switching
between display functions.
3. Navigation keys and indicator lights
(LEDs).
4. Operation keys and indicator lights
(LEDs).
Display line:
Status line: Status messages displaying
icons and numeric value.
Indicator lights (LEDs):
• Green LED/On: Indicates if control
section is on.
• Yellow LED/Wrn.: Indicates a warn-
ing.
• Flashing red LED/Alarm: Indicates
an alarm.
LCP keys
[Menu] Select one of the following modes:
• Status
•Quick Setup
• Main Menu
Status Mode: Displays the status of the fre-
quency converter or the motor.
If an alarm occurs the NLCP automatically
switches to status mode.
A number of alarms can be displayed.
NB!
Parameter copy is not possible
with LCP 101 Numerical Local
Control Panel.
130BP077.10
130BP078.10
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
23
2
