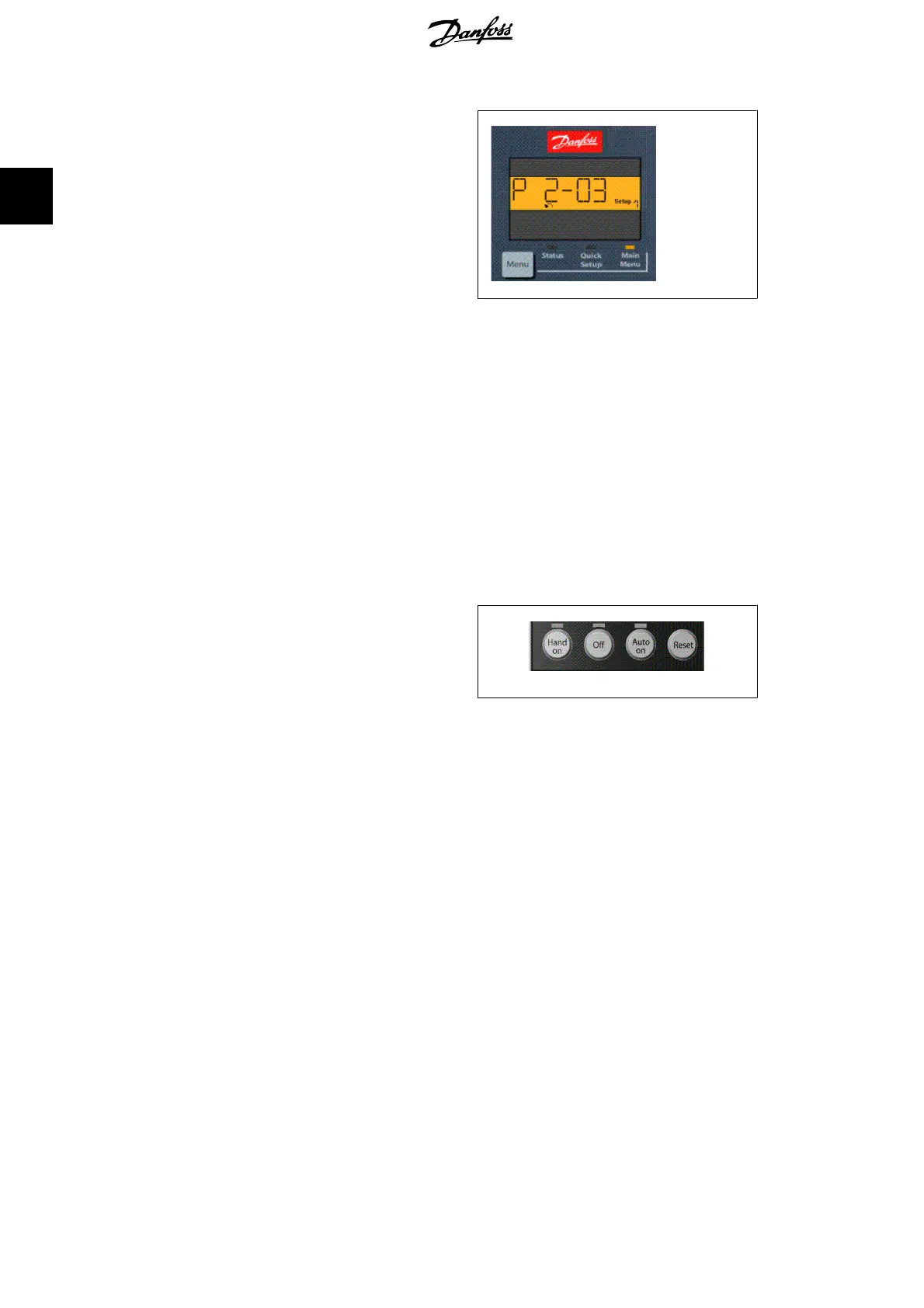

Main Menu/ Quick Setup is used for pro-
gramming all parameters or only the param-
eters in the Quick Meny (see also description
of the LCP 102 earlier in this chapter).
The parameter values can be changed using
the [▴] [▾] keys when the value is flashing.
Select Main Menu by pressing [Menu] key a
number of times.
Select the parameter group [xx-__] and press
[OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select
the array number and press [OK]
Select the wanted data value and press [OK]
Parameters with functional choices display
values such as [1], [2], etc. For a description
of the different choices, see the individual de-
scription of the parameters in the
Parameter
Selection
section
[Back] for stepping backwards
Arrow [▴] [▾] keys are used for manoeuvring
between commands and within parameters.
130BP079.10
2.1.18. Local Control Keys
Keys for local control are found at the bottom
of the control panel.
130BP046.1
[Hand on] enables control of the frequency converter via the LCP. [Hand on] also starts the motor
and it is now possible to enter the motor speed data by means of the arrow keys. The key can be
selected as Enable [1] og Disable [0] via par. 0-40
[Hand on] Key on LCP
.
External stop signals activated by means of control signals or a serial bus will override a 'start'
command via the LCP.
The following control signals will still be active when [Hand on] is activated:
• [Hand on] - [Off] - [Auto on]
• Reset
• Coasting stop inverse
• Reversing
• Set-up select lsb - Set-up select msb
• Stop command from serial communication
•Quick stop
•DC brake
[Off] stops the connected motor. The key can be selected as Enable [1] or Disable [0] via par.
0-41
[Off] Key on LCP
.
If no external stop function is selected and the [Off] key is inactive the motor can be stopped by
disconnecting the voltage.
2. How to Programme FC 300 Programming Guide
24
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
