Danfoss FC 300

2.1.9. Main Menu Mode

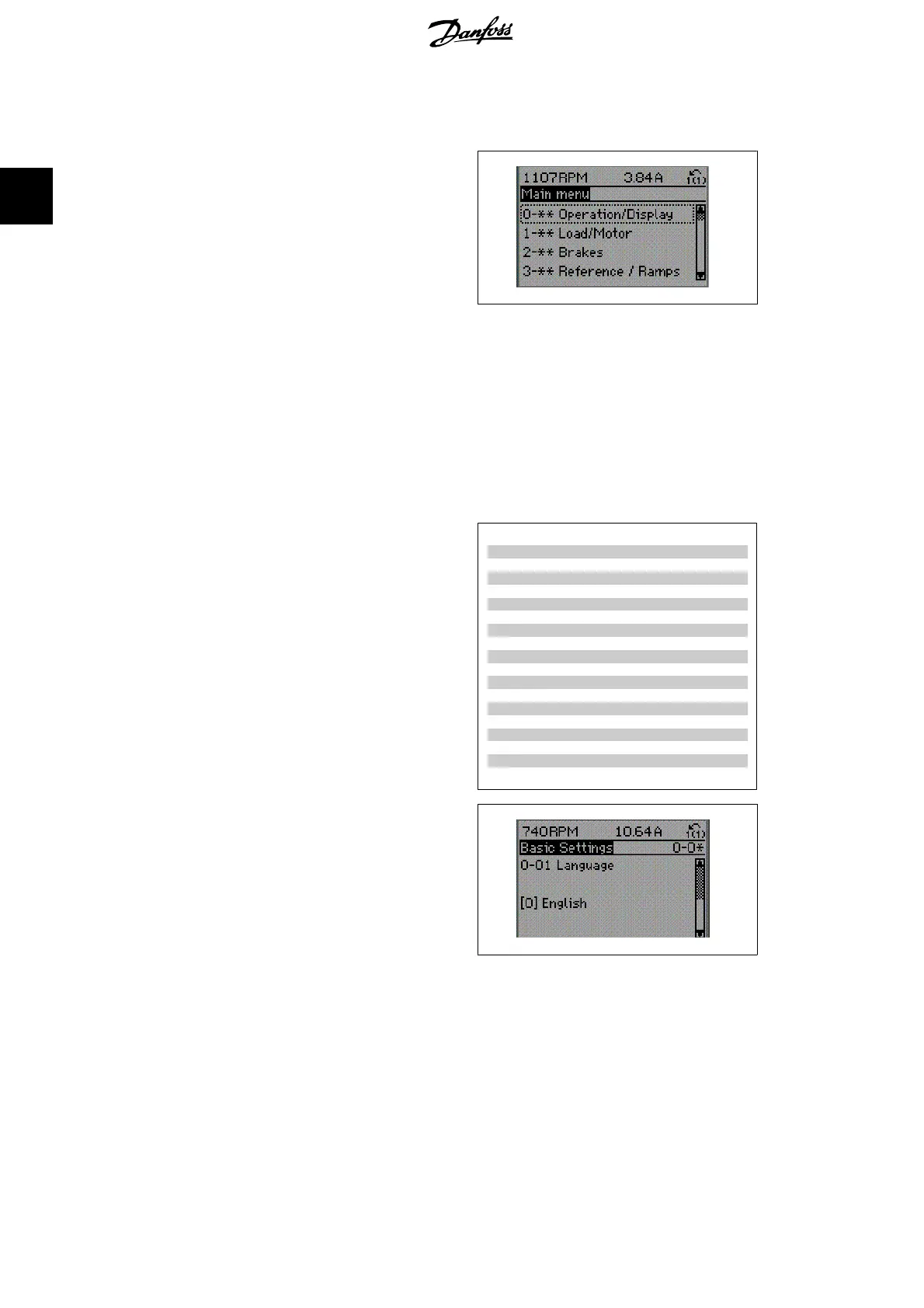

Start the Main Menu mode by pressing the
[Main Menu] key. The read-out shown to the
right appears on the display.
The middle and bottom sections on the display
show a list of parameter groups which can be
chosen by toggling the up and down buttons.
130BP066.10
Each parameter has a name and number which remain the same regardless of the programming
mode. In the Main Menu mode, the parameters are divided into groups. The first digit of the
parameter number (from the left) indicates the parameter group number.
All parameters can be changed in the Main Menu. However, depending on the choice of configu-
ration (par. 1-00), some parameters can be "missing". E.g. open loop hides all the PID parameters,
and other enabled options make more parameter groups visible.
2.1.10. Parameter Selection
In the Main menu mode, the parameters are
divided into groups. You select a parameter
group by means of the navigation keys.
The following parameter groups are accessi-
ble:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
7 Controls
8 Comm. and Options
9Profibus
10 CAN Fieldbus
11 Reserved Com. 1
12 Reserved Com. 2
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
17 Motor Feedb. Option
After selecting a parameter group, choose a
parameter by means of the navigation keys.
The middle section on the display shows the
parameter number and name as well as the
selected parameter value.
130BP067.10
2.1.11. Changing Data
The procedure for changing data is the same whether you select a parameter in the Quick menu
or the Main menu mode. Press [OK] to change the selected parameter.
The procedure for changing data depends on whether the selected parameter represents a nu-
merical data value or a text value.
2.1.12. Changing a Text Value
