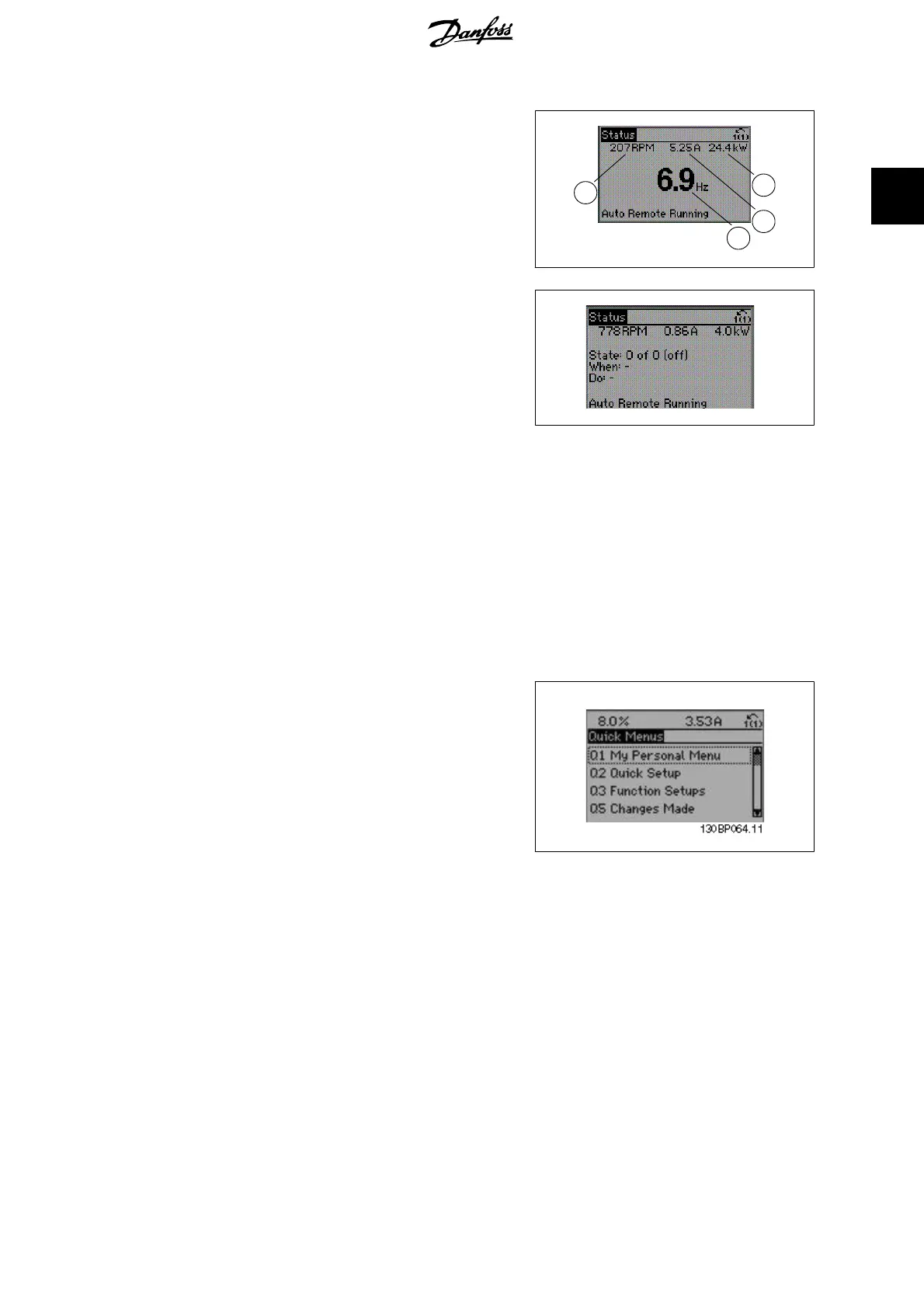

Status screen II:
See the operating variables (1.1, 1.2, 1.3 and
2) shown in the screen in this illustration.
In the example, Speed, Motor current, Motor
power and Frequency are selected as varia-
bles in the first and second.
130BP062.10
2
1.2
1.3
1.1
Status screen III:
This state displays the event and action of the
Smart Logic Control. For further information,
see section
Smart Logic Control
.
130BP063.10
2.1.6. Parameter Set-Up
The FC 300 Series can be used for practically all assignments, which is why the number of pa-
rameters is quite large. The series offers a choice between two programming modes - a Main
Menu and a Quick Menu mode.
The former provides access to all parameters. The latter takes the user through a few parameters
making it possible to start operating the frequency converter.
Regardless of the mode of programming, you can change a parameter both in the Main Menu
mode and in the Quick Menu mode.
2.1.7. Quick Menu Key Functions
Pressing [Quick Menus] The list indicates the
different areas contained in the Quick menu.
Select
My Personal Menu
to display the chosen
personal parameters. These parameters are
selected in par. 0-25
Personal Menu
. Up to 20
different parameters can be added in this
menu.
Select
Quick setup
to go through a limited amount of parameters to get the motor running almost
optimally. The default setting for the other parameters considers the desired control functions and
the configuration of signal inputs/outputs (control terminals).
The selection of parameter is effected by means of the arrow keys. The parameters in the following
table are accessible.
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
17
2
