Danfoss PVED-CLS User Manual

© Danfoss | August 2018 AQ00000211 | 59
ENGINEERING TOMORROW
Name
Address
Data type
Unit
Description of parameter
User
Range
Danfoss default value
Safety
critical
parameters ‘S’
Min.
Max.
WAS calibration -
Mapped cyl. str. vol.
(steering right) at 33%
VB
P3823 U16 ccm Mapped cylinder stroke volume (steering right) at 33% voltage base OEM, Dealer 100 10000 333
WAS calibration -
Mapped cyl. str. vol.
(steering right) at 67%
VB
P3825 U16 ccm Mapped cylinder stroke volume (steering right) at 67% voltage base OEM, Dealer 100 10000 667
WAS calibration -
Mapped cyl. str. vol.
(steering right) at 100%
VB
P3827 U16 ccm Mapped cylinder stroke volume (steering right) at 100% voltage base OEM, Dealer 100 10000 1000
WAS calibration -
Mapped VB for cyl. str.
vol. (steering right)
P3829 U16 mVolts Mapped voltage base for cylinder stroke volume (steering right) OEM, Dealer 0 6000 2000
Table 25

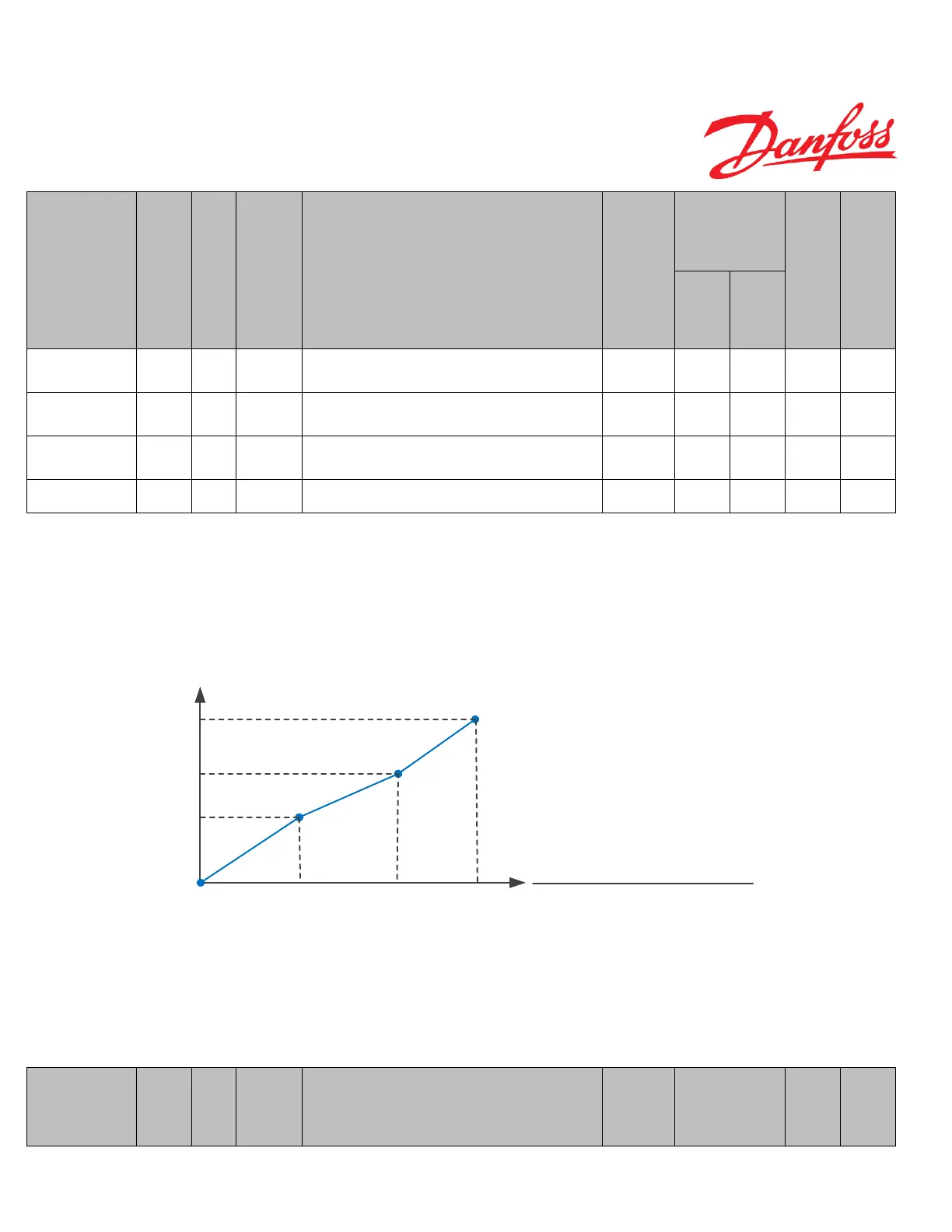

The sensor characteristics needs to be mapped, according to Figure 1. The cylinder stroke volume @ 33% (P3823), 67%
(P3825) and 100% (P3827) of the voltage base (P3829) should be mapped, where voltage base is:
The absolute voltage [mVolts] from the WAS, going from neutral to right most position, when maximum possible steer
angles can be achieved on the vehicle + some tolerance.
0
.33 0.67 1.00
P3827
P3825
P3823
Automatic adjusted
cylinder stroke volume
(steering right)
|Captured right most position – Captured neutral position|
P3829
Figure 20
Name
Address
Data type
Unit
Description of parameter
User
Range
Danfoss default value
Safety critical paramet
