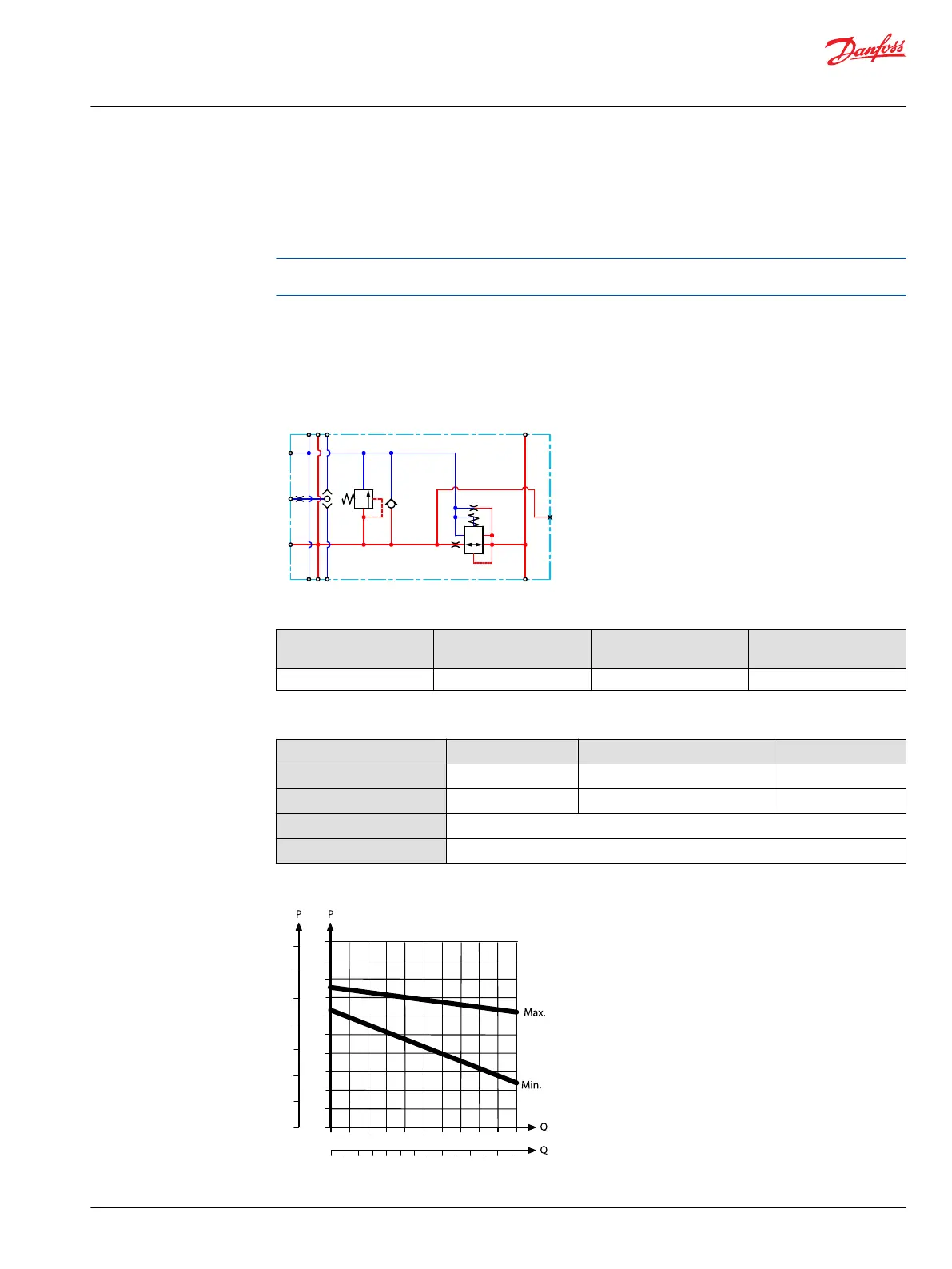

Danfoss PVG 16 - PVG 32 Specification Sheet

Closed center PVPVM with PPRV
The Closed Center PVPVM mid-inlet module with integrated pilot pressure reduction valve (PPRV) is
intended for use with variable displacement pumps in applications where a valve group with electro-
hydraulic or hydraulically controlled work sections is desired.
Using a PVPVM module in a valve group requires a 180° degree rotation of the PVG work sections on one
side.
The Closed Center PVPVM with PPRV features:
•
Optional shock/anti-cavitation valve facility (PVLP)
•
Threaded ports for P/T/LS and M measuring gauge
•
Integrated pilot pressure reducing valve (PPRV) for PVE or PVH/PVHC
Hydraulic schematic
T
LS
P
M
Technical specification for PVP
Max. P-port continuous Max. P-port intermittent Max. T-port static/
dynamic
Max. rated flow
350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]
Technical specification
Parameter Minimum Recommended range Maximum
Fluid temperature
-30°C [-22°F] 30 to 60°C [86 to 140°F] 90° [194°F]
Fluid viscosity
4 mm
2
/s [39 SUS] 12 to 75 mm
2
/s [65 to 347 SUS] 460 mm
2
/s [2128 SUS]
Fluid cleanliness
23/19/16 (according to ISO 4406)
Operating temperature
Ambient: -30 to 60°C [-22 to 140°F]
Pilot pressure reduction valve characteristics
(l/min)
[US gal/min]
20
10
20
30 40
50
16
18
12
14
10
8
4
6
2
100
20
60
0
0
0
220
140
180
260
[psi]
(bar)
6
122
4
8
10
0
Technical Information
PVG 16 Proportional Valve Group
PVP Inlet Modules
©
Danfoss | December 2018 BC00000211en-000901 | 27
