Danfoss PVG 16 Technical Information

PVG 32/16 Dimensions

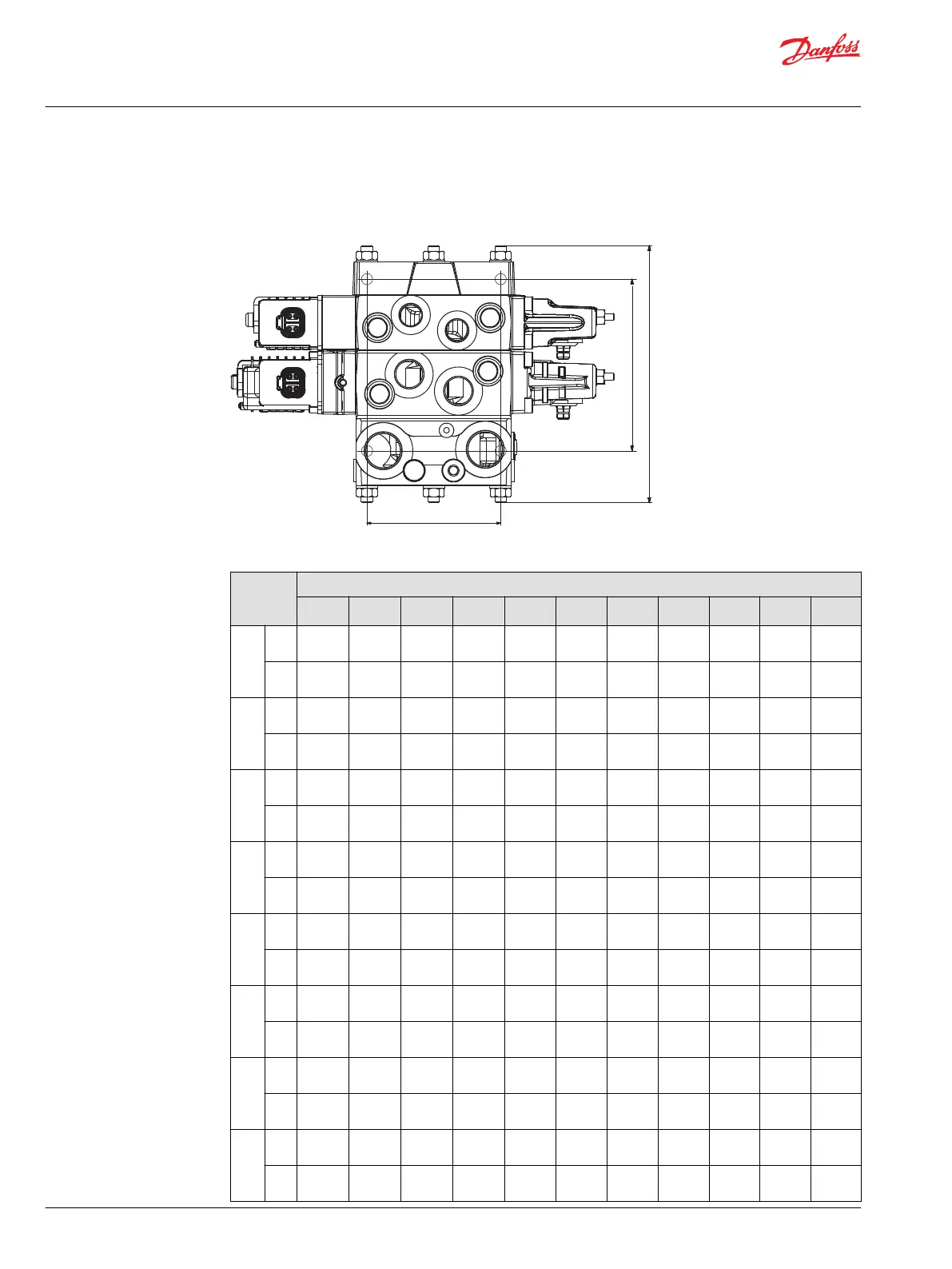

The table of PVB 32 and PVB 16 combination valve stack dimensions overview table with accompanying
drawing.
L1
95 [3.74]
L2
PVB 32/16 combination valve stack dimensions, mm [in]
Number
of PVB 32
(down)
Number of PVB 16 modules
1 2 3 4 5 6 7 8 9 10 11
1 L1 122
[4.80]
162
[6.38]
202
[7.95]
242
[9.53]
282
[11.10]
322
[12.68]
362
[14.25]
402
[15.83]
442
[17.40]
482
[18.98]
522
[20.55]
L2 189
[7.44]
238
[9.37]
262
[10.31]
311
[12.24]
360
[14.17]
385
[15.16]
434
[17.09]
483
[19.02]
507
[19.96]
551
[21.69]
600
[23.62]
2 L1 170
[6.69]
210
[8.27]
250
[9.84]
290
[11.42]
330
[12.99]
370
[14.57]
410
[16.14]
450
[17.72]
490
[19.29]
530
[20.87]
570
[22.44]
L2 238
[9.37]
287
[11.30]
311
[12.24]
360
[14.17]
409
[16.10]
434
[17.09]
483
[19.02]
507
[19.96]
551
[21.69]
600
[23.62]
646
[25.43]
3 L1 218
[8.58]
258
[10.16]
298
[11.73]
338
[13.31]
378
[14.88]
418
[16.46]
458
[18.03]
498
[19.61]
538
[21.18]
578
[22.76]
-
L2 287
[11.30]
336
[13.23]
360
[14.17]
409
[16.10]
458
[18.03]
483
[19.02]
527
[20.75]
576
[22.68]
600
[23.62]
646
[25.43]
-
4 L1 266
[10.47]
306
[12.05]
346
[13.62]
386
[15.20]
426
[16.77]
466
[18.35]
506
[19.92]
546
[21.50]
586
[23.07]
- -
L2 336
[13.23]
385
[15.16]
409
[16.10]
458
[18.03]
483
[19.02]
527
[20.75]
576
[22.68]
622
[24.49]
646
[25.43]
- -
5 L1 314
[12.36]
354
[13.94]
394
[15.51]
434
[17.09]
474
[18.66]
514
[20.24]
554
[21.81]
594
[23.39]
- - -
L2 385
[15.16]
434
[17.09]
458
[18.03]
507
[19.96]
551
[21.69]
576
[22.68]
622
[24.49]
670
[26.38]
- - -
6 L1 362
[14.25]
402
[15.83]
442
[17.40]
482
[18.98]
522
[20.55]
562
[22.13]
602
[23.70]
- - - -
L2 434
[17.09]
483
[19.02]
507
[19.96]
551
[21.69]
600
[23.62]
622
[24.49]
670
[26.38]
- - - -
7 L1 410
[16.14]
450
[17.72]
490
[19.29]
530
[20.87]
570
[22.44]
610
[24.02]
- - - - -
L2 483
[19.02]
527
[20.75]
551
[21.69]
600
[23.62]
646
[25.43]
670
[26.38]
- - - - -
8 L1 458
[18.03]
498
[19.61]
538
[21.18]
578
[22.76]
- - - - - - -
L2 527
[20.75]
576
[22.68]
600
[23.62]
646
[25.43]
- - - - - - -
Technical Information
PVG 16 Proportional Valve Group
PVG 16 Combinations Valve Stack Dimensions
98 |
©
Danfoss | December 2018 BC00000211en-000901
