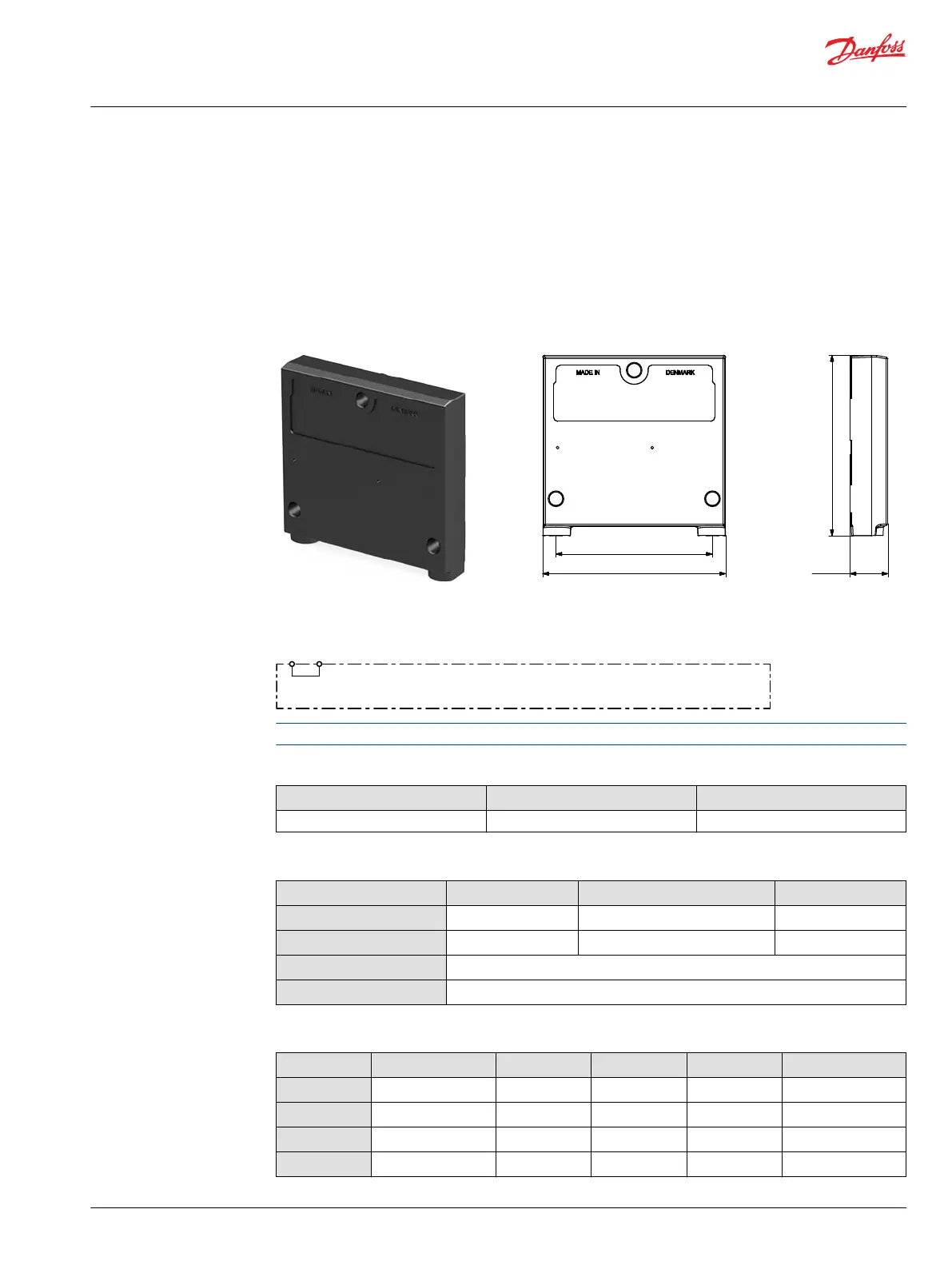

PVS/PVSI
The PVS/PVSI are made of either aluminum or cast iron material and works as an end plate.
The PVSI Start Plates features:
•
Integrated LS pressure relief valve to tank
•
Optional integrated thermal orifice
•
Optional version without seals
PVS/PVSI PVS/PVSI dimensions
109.4 [4.31]
111 [4.37]
95 [3.74]
23 [0.91]
Weight: 0.47 kg [1.05 lb]
PVS/PVSI schematic
See part number table for details on maximum pressure capacity
Technical specification for A/B-port
Max. continuous pressure Max. intermittent pressure Max. rated flow
380 bar [5510 psi] 420 bar [6090 psi] 65 l/min [17 US gal/min]
Technical specification
Parameter Minimum Recommended range Maximum
Fluid temperature
-30°C [-22°F] 30 to 60°C [86 to 140°F] 90° [194°F]
Fluid viscosity
4 mm
2
/s [39 SUS] 12 to 75 mm
2
/s [65 to 347 SUS] 460 mm
2
/s [2128 SUS]
Fluid cleanliness
23/19/16 (according to ISO 4406)
Operating temperature
Ambient: -30 to 60°C [-22 to 140°F]
Part numbers for PVS end plates
Part number Maximum pressure Material Weight kg [lb] Seals Mounting
157B2000
300 bar [4351 psi] Aluminum 0.475 [1.05] Yes M8
157B2020
300 bar [4351 psi] Aluminum 0.475 [1.05] Yes 5/16-18 UNC
157B2004
350 bar [5076 psi] Cast iron 1.745 [3.85] Yes 5/16-18 UNC
157B2014
350 bar [5076 psi] Cast iron 1.745 [3.85] Yes M8
Technical Information
PVG 16 Proportional Valve Group
PVS End Plates
©
Danfoss | December 2018 BC00000211en-000901 | 87
