PVG 16 connector variants

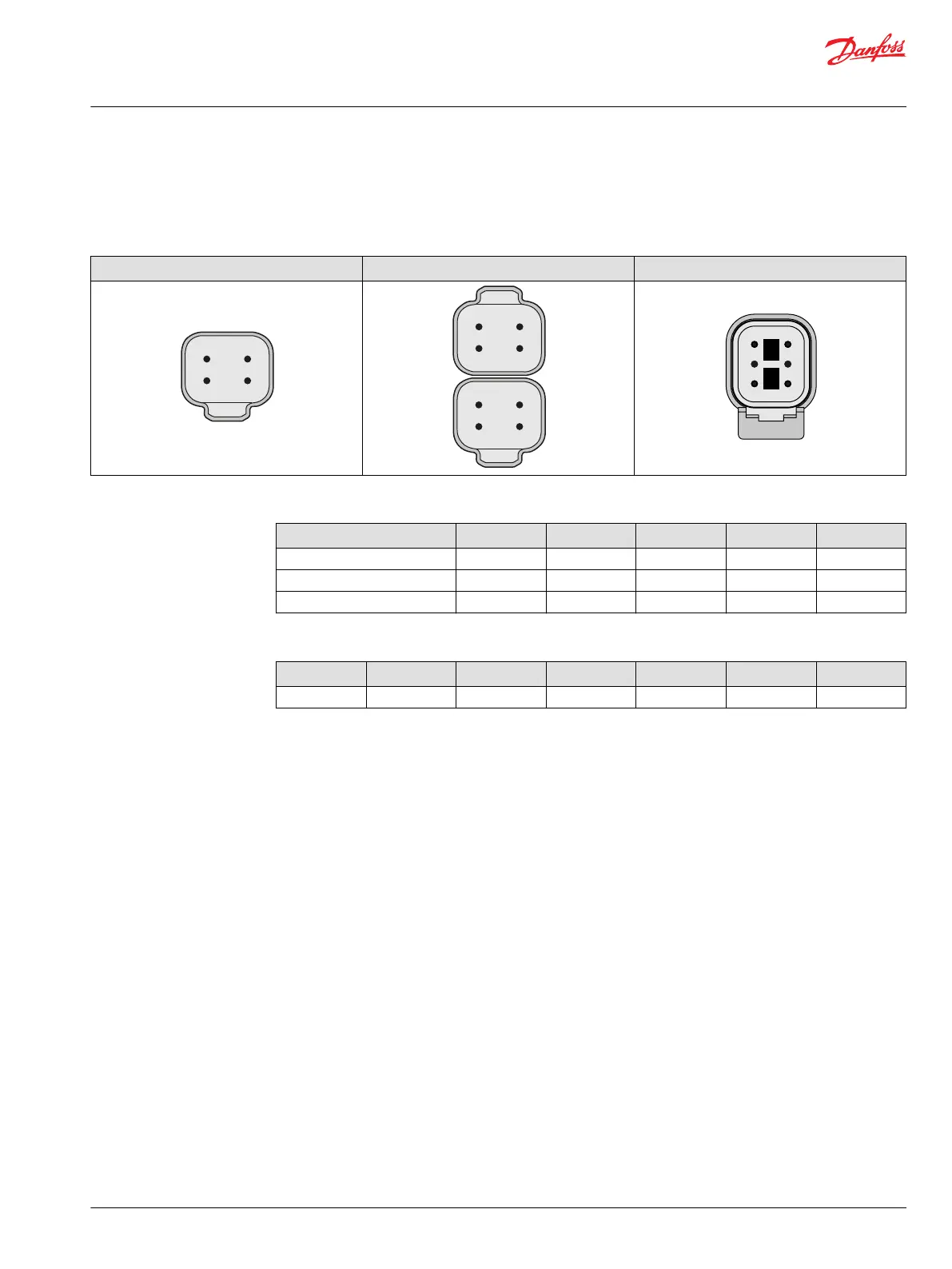

PVG 16 connector variants for PVEO, PVEA, PVEO-CI, PVEA-CI, PVEA-F with pin layout information.
Pin connector
1 x 4 DEUTSCH 2 x 4 DEUTSCH 1 x 6 DEUTSCH
2 3
41
2 3
41
23
4 1
1
2
3 4
5
6
Pin layout for PVEO, PVEA, PVEO-CI, PVEA-CI
PVE Type Connector Pin 1 Pin 2 Pin 3 Pin 4
PVEO 1 x 4 DEUTSCH NC2 Vneg Vneg NC4
PVEA 1 x 4 DEUTSCH Vi SP Vneg Vbat
PVEO-CI, PVEA-CI 2 x 4 DEUTSCH CAN_H CAN_L Vbat Vneg
Pin layout for PVEA-F
Connector Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6
1 x 6 DEUTSCH Vi NC Vf SP Vneg Vbat
Technical Information
PVG 16 Proportional Valve Group
PVG 16 Actuation
©
Danfoss | December 2018 BC00000211en-000901 | 83
