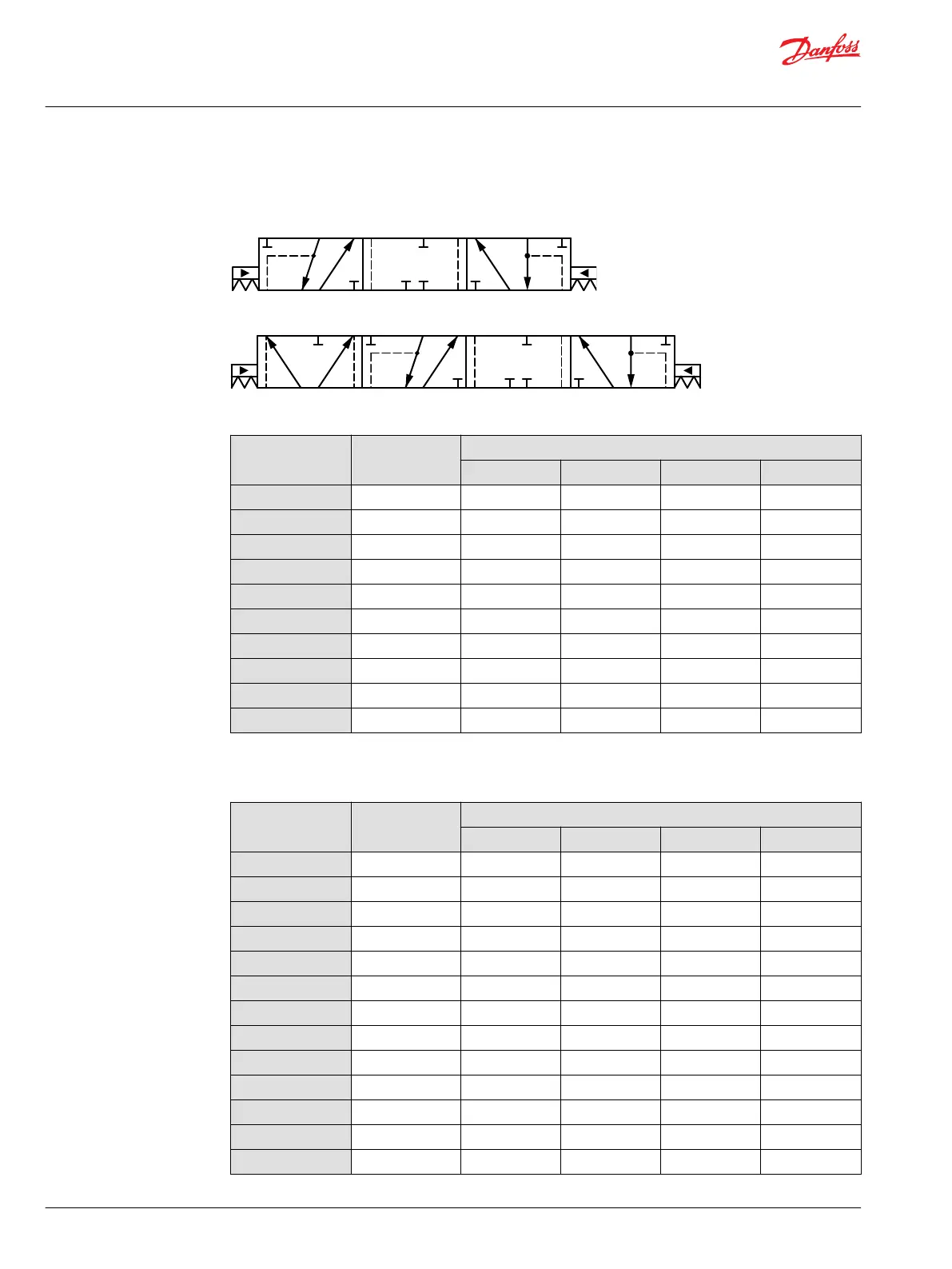

Flow Control Spools - Closed Neutral Position
Schematic for PVBS - 4-way, 3 positions
Schematic for PVBS - 4-way, 4 positions
Symmetrical spools
Part number Actuation
*
Flow – l/min [US gal/min]
A → T P → A P → B B → T
11105532
PVE 5 [1.32] 5 [1.32] 5 [1.32] 5 [1.32]
11105533
PVE 10 [2.64] 10 [2.64] 10 [2.64] 10 [2.64]
11105534
PVE 25 [6.60] 25 [6.60] 25 [6.60] 25 [6.60]
11105535
PVE 40 [10.57] 40 [10.57] 40 [10.57] 40 [10.57]
11105536
PVE 65 [17.17] 65 [17.17] 65 [17.17] 65 [17.17]
11109632
PVH/PVHC 5 [1.32] 5 [1.32] 5 [1.32] 5 [1.32]
11109633
PVH/PVHC 10 [2.64] 10 [2.64] 10 [2.64] 10 [2.64]
11109634
PVH/PVHC 25 [6.60] 25 [6.60] 25 [6.60] 25 [6.60]
11109635
PVH/PVHC 40 [10.57] 40 [10.57] 40 [10.57] 40 [10.57]
11109636
PVH/PVHC 65 [17.17] 65 [17.17] 65 [17.17] 65 [17.17]
*
All spools can be mechanically actuated with a PVM, for more details see PVM Manual Actuation on page 69
Asymmetrical spools
Part number Actuation
*
Flow – l/min [US gal/min]
A → T P → A P → B B → T
11109642
PVE 5 [1.32] 5 [1.32] 2.5 [0.66] 2.5 [0.66]
11109643
PVE 10 [2.64] 10 [2.64] 5 [1.32] 5 [1.32]
11156296
PVE 15 [3.96] 15 [3.96] 25 [6.60] 25 [6.60]
11109644
PVE 25 [6.60] 25 [6.60] 10 [2.64] 10 [2.64]
11109645
PVE 25 [6.60] 25 [6.60] 15 [3.96] 15 [3.96]
11156298
PVE 25 [6.60] 25 [6.60] 40 [10.57] 40 [10.57]
11109646
PVE 40 [10.57] 40 [10.57] 15 [3.96] 15 [3.96]
11146752
PVH/PVHC 5 [1.32] 5 [1.32] 2.5 [0.66] 2.5 [0.66]
11146753
PVH/PVHC 10 [2.64] 10 [2.64] 5 [1.32] 5 [1.32]
11145754
PVH/PVHC 25 [6.60] 25 [6.60] 10 [2.64] 10 [2.64]
11146755
PVH/PVHC 25 [6.60] 25 [6.60] 15 [3.96] 15 [3.96]
11146756
PVH/PVHC 40 [10.57] 40 [10.57] 15 [3.96] 15 [3.96]
11146757
PVH/PVHC 40 [10.57] 40 [10.57] 25 [6.60] 25 [6.60]
*
All spools can be mechanically actuated with a PVM, for more details see PVM Manual Actuation on page 69
Technical Information
PVG 16 Proportional Valve Group
PVBS Main Spools Part Numbers
66 |
©
Danfoss | December 2018 BC00000211en-000901
