Danfoss PVG 16 Technical Information

PVG 120/16 Dimensions

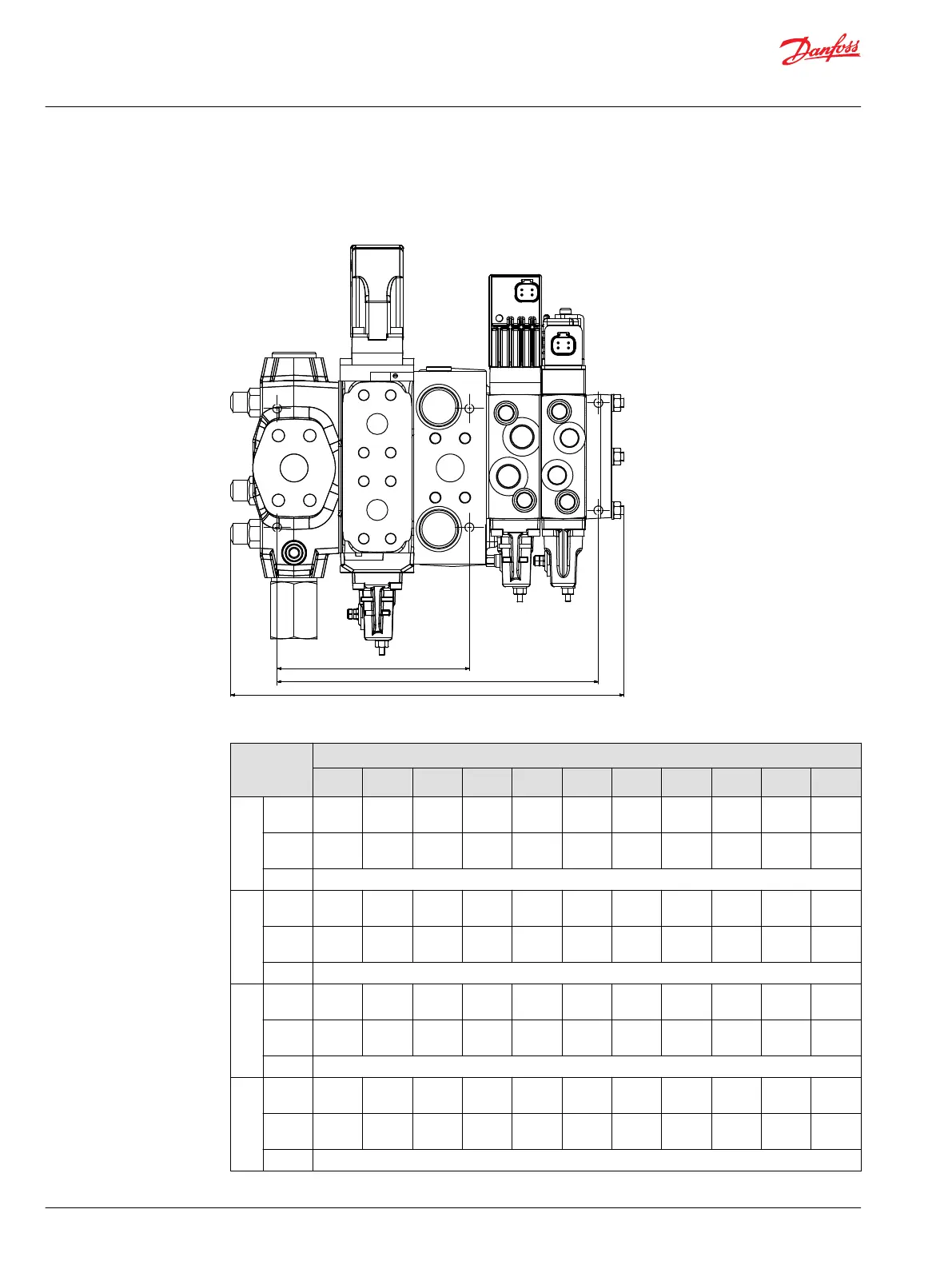

The table of PVB 120 and PVB 16 combination valve stack dimensions overview table with accompanying
drawing.
L1
L2
L3
PVB 120/16 combination valve stack dimensions, mm [in]
Number of
PVB 120
(down)
Number of PVB 16 modules
1 2 3 4 5 6 7 8 9 10 11
1 L1 284
[11.18]
324
[12.76]
364
[14.33]
404
[15.91]
444
[17.48]
484
[19.06]
524
[20.63]
564
[22.20]
604
[23.78]
644
[25.35]
684
[26.93]
L2 348
[13.70]
397
[15.63]
421
[16.57]
470
[18.50]
519
[20.43]
544
[21.42]
593
[23.35]
642
[25.28]
666
[26.22]
715
[28.15]
759
[29.88]
L3 80 [3.15]
2 L1 351
[13.82]
391
[15.39]
431
[16.97]
471
[18.54]
511
[20.12]
551
[21.69]
591
[23.27]
631
[24.84]
671
[26.42]
711
[27.99]
751
[29.57]
L2 413
[16.26]
462
[18.19]
486
[19.13]
535
[21.06]
584
[22.99]
609
[23.98]
658
[25.91]
707
[27.83]
731
[28.78]
780
[30.71]
824
[32.44]
L3 128 [5.04]
3 L1 418
[16.46]
458
[18.03]
498
[19.61]
538
[21.18]
578
[22.76]
618
[24.33]
658
[25.91]
698
[27.48]
738
[29.06]
778
[30.63]
818
[32.20]
L2 478
[18.82]
527
[20.75]
551
[21.69]
600
[23.62]
649
[25.55]
674
[26.54]
723
[28.46]
772
[30.39]
796
[31.34]
845
[33.27]
889
[35.00]
L3 176 [6.93]
4 L1 485
[19.09]
525
[20.67]
565
[22.24]
605
[23.82]
545
[21.46]
685
[26.97]
725
[28.54]
765
[30.12]
805
[31.69]
845
[33.27]
885
[34.84]
L2 543
[21.38]
592
[23.31]
616
[24.25]
665
[26.18]
714
[28.11]
739
[29.09]
788
[31.02]
837
[32.95]
861
[33.9]
910
[35.83]
954
[37.56]
L3 224 [8.82]
Technical Information
PVG 16 Proportional Valve Group
PVG 16 Combinations Valve Stack Dimensions
102 |
©
Danfoss | December 2018 BC00000211en-000901
