PVLP Shock and Anti-Cavitation Valve
The PVLP shock and anti-cavitation valve will relieve a pressure peak to the internal tank galleries and will
furthermore suck oil from the tank to the work port to prevent cavitation. Pressure settings range: 32–400
bar [460–5801 psi].
The pressure setting of the PVLP must always be 20 bar [290 psi] higher than LS
A/B
setting in the same
module.

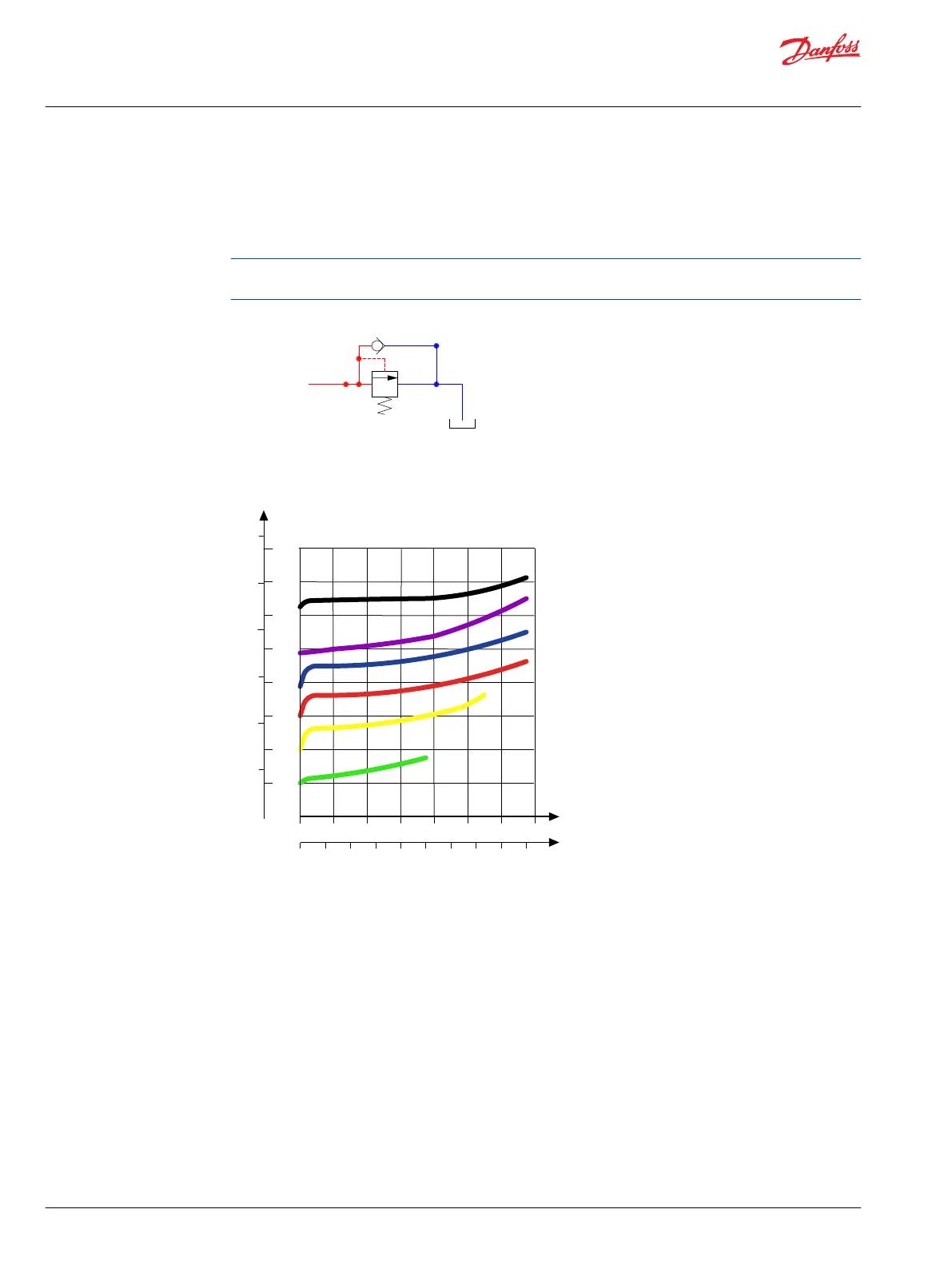

PVLP schematic
P109174
Port pressure
PVLP shock valve characteristics
(l/min)
[US gal/min]
P
Q
Q
(bar)
[psi]
20 40 60 80 100 120 140
5
10 15 20 25 30 35 40 45
400
350
300
250
200
150
100
50
0
5000
4000
3000
2000
1000
0
6000
0
0
