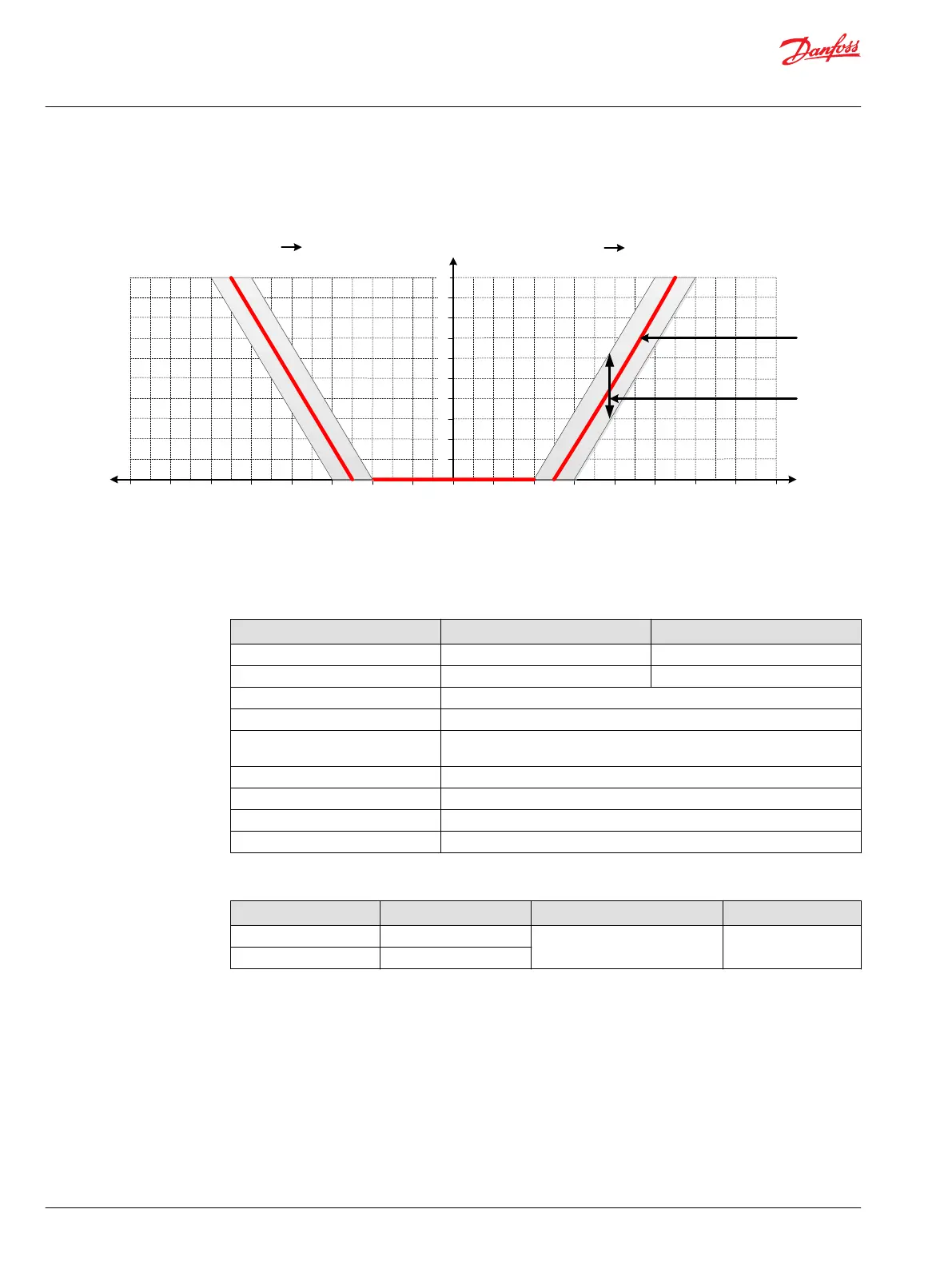

PVHC spool stroke vs current characteristics
AP
1
2
3
4
5
6
7
8
9
10
0
0
200
100
400
200
600
300
800
400
1000
500
BP
800
400
600
300
400
200
200
100
1000
500
[Current in mA][Current in mA]
@12V
@24V
@12V
@24V
1600
800
1400
700
1200
600
1200
600
1600
800
1400
700
Spool stroke, mm
PVHC characteristics – Spool stroke vs current
Ideal curve
Hysteresis
P109250
The hysteresis is affected by viscosity, friction, flow forces, dither frequency and modulation frequency.
Technical data
Supply Voltage U
DC
12 V
DC
24 V
DC
Current input 0 – 1500 mA 0 – 750 mA
Resistance 4.75 Ω ± 5 % 20.8 Ω ± 5 %
Response time 150 to 200 ms
PWM frequency 100 to 400 Hz
Main spool spring control pressure
range
5 – 15 bar [73 – 218 psi]
Pilot oil pressure range 20 – 25 bar [290 – 362 psi]
Ambient temperature range -30°C to 80°C [-22 °F to 176°F]
Temperature range -20°C to 80°C [-4 °F to 176°F]
Fluid cleanliness 23/19/16 (according to ISO 4406)
Part numbers for PVHC Actuators
Part number Power supply Connector type Protection Class
11126941 12V
2x2 DEUTSCH IP 67
11127535 24V
Technical Information
PVG 16 Proportional Valve Group
PVG 16 Actuation
74 |
©
Danfoss | December 2018 BC00000211en-000901
