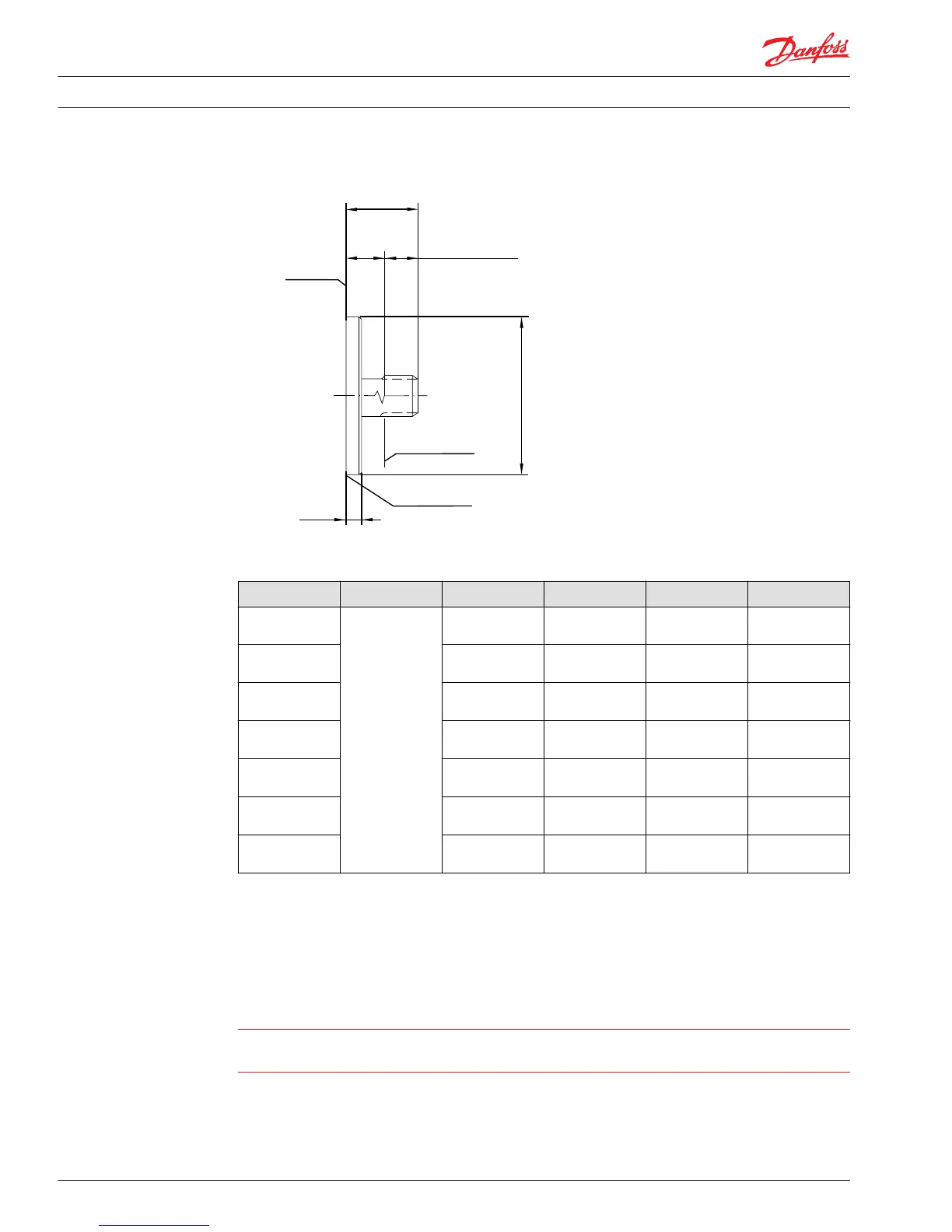

Auxiliary pump mounting flange and shaft
Ø P
0 -0.05
[+0.000] [-0.002]
F
min.
Minimum spline
engagement
D
B
max.
E
Mounting flange
(Ref)
Coupling
0.8 [0.03] R
preferred
P102 015E
Auxiliary pump dimensions
Flange size Units P diameter B maximum D F minimum
SAE A mm [in] 82.55
[3.25]
7.4
[0.29]
32
[1.26]
13.5
[0.53]
SAE B 101.6
[4.00]
10.7
[0.42]
41
[1.61]
14.2
[0.56]
SAE B-B 101.6
[4.00]
10.7
[0.42]
46
[1.81]
16.1
[0.63]
SAE C 127.0
[5.00]
14.3
[0.56]
56
[2.20]
18.3
[0.72]
SAE D 152.4
[6.00]
14.3
[0.56]
75
[2.95]
20.8
[0.82]
SAE E
13 teeth
165.1
[6.50]
18.0
[0.71]
75
[2.95]
20.8
[0.82]
SAE E
27 teeth
165.1
[6.50]
18.0
[0.71]
75
[2.95]
27.0
[1.06]
Displacement Limiter
All Series 90 pumps are designed with optional mechanical displacement (stroke) limiters.
The maximum displacement of the pump can be set independently for forward and reverse using the
two adjustment screws.
