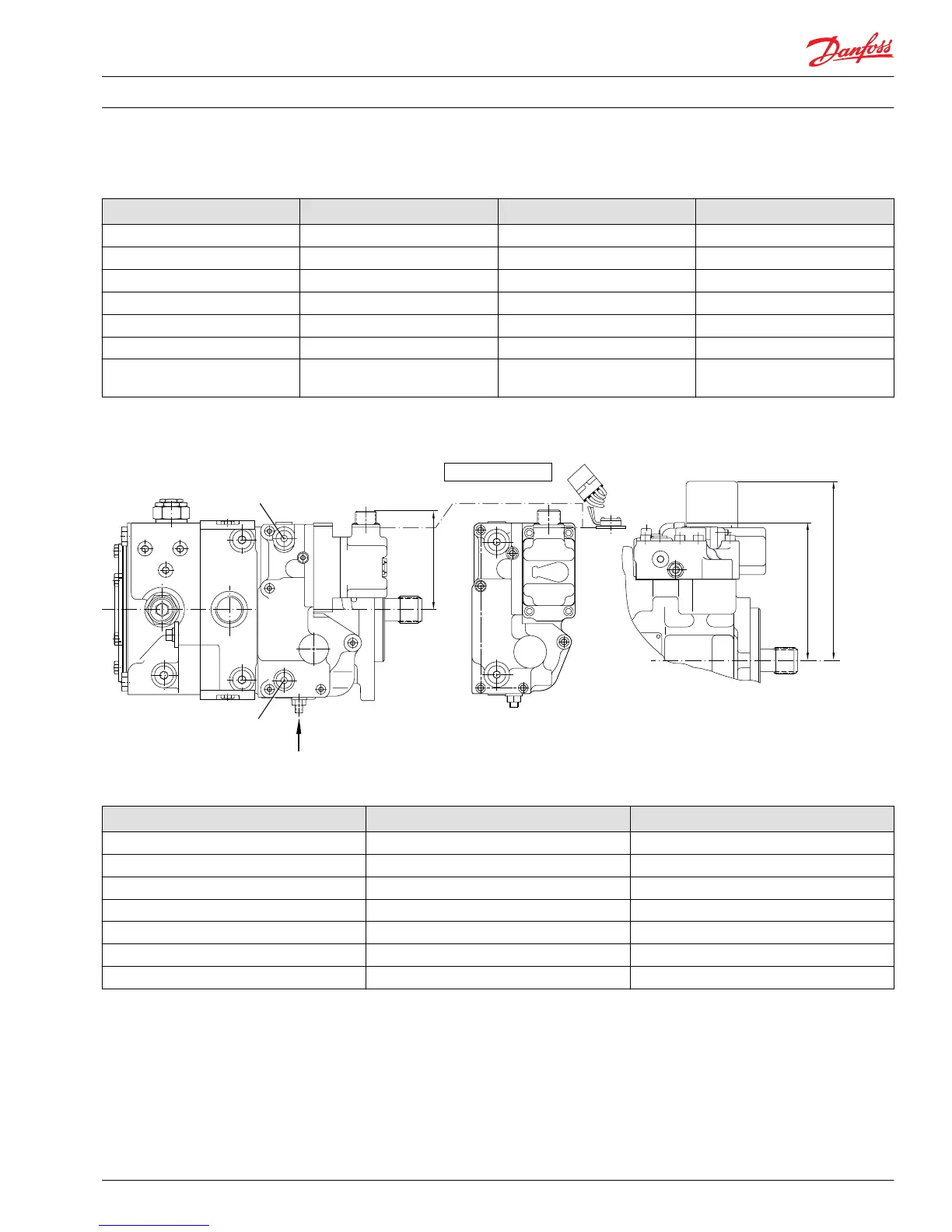

Dimensions
Frame size C5 maximum C5.1 C5.2
042 196.5 [7.74] 108.8 [4.28] 106.2 [4.18]
055 200.6 [7.90] 108.8 [4.28] 106.2 [4.18]
075 207.9 [8.19] 108.8 [4.28] 106.2 [4.18]
100 216.8 [8.54] 117.4 [4.62] 97.6 [3.84]
130 235.7 [9.28] 102.4 [4.03] 112.6 [4.43]
180 252.4 [9.94] 94.6 [7.32] 120.4 [4.74]
250
[option DD only]
210.4 [8.28] 94.6 [7.32] 120.4 [4.74]
Electric Displacement Control (EDC) with MS-Connector or Packard® connector
Dimensions
Frame size C6 C7
042 95.3 [3.75] 168.6 [6.64]
055 95.3 [3.75] 141.2 [5.56]
075 105.2 [4.14] 144.8 [5.70]
100 114.0 [4.49] 153.7 [6.05]
130 99.1 [3.90] 172.7 [6.80]
180 93.4 [3.68] 190.0 [7.48]
250 93.4 [3.68] 226.2 [8.91]
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
