Cover Plate
Option CA
View "W"
C3
"W"
C1 C1
C2
Port
M4
C4 maximumC4 maximum
Port
M5
Displacement limiter
option 4
limitation both sides
P102065
2

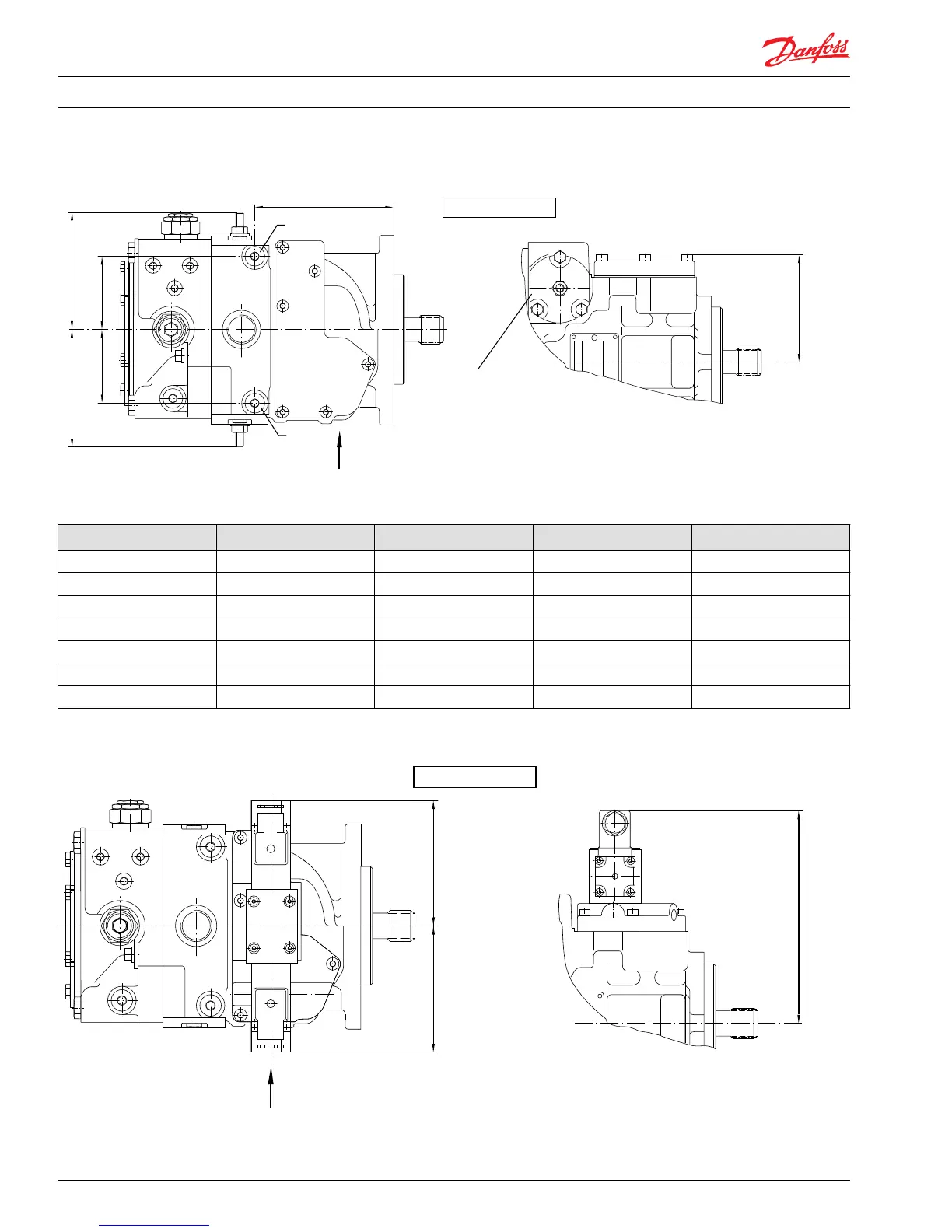

Dimensions
Frame size C1 C2 C3 C4 maximum (option 4)
042 67.9 [2.67] 129.5 [5.10] 99.5 [3.92] 108 [4.25]
055 69.2 [2.72] 179.4 [7.06] 103.6 [4.08] 114 [4.48]
075 74.2 [2.92] 185.7 [7.31] 109.4 [4.31] 118 [4.65]
100 83.3 [3.28] 183.3 [7.22] 118.3 [4.66] 136 [5.35]
130 86.6 [3.41] 209.3 [8.24] 137.2 [5.40] 141 [5.55]
180 - - - 184 [7.24]
250 - - - 184 [7.24]
3-Position (F-N-R) Electric Control
View "W"
C5 maximum
Option DC & DD
"W"
P102065a
a
b
2
C5.1
C5.2
Technical Information
Series 90 Axial Piston Pumps
Installation Drawings
