Dimensions (continued)
Frame size C13 C14
075 25.0 [0.98] 106.9 [4.21]
100 31.3 [1.23] 115.8 [4.56]
130 46.0 [1.81] 134.5 [5.29]
180 52.0 [2.04] 151.8 [5.97]
250 52.0 [2.04] 151.8 [5.97]

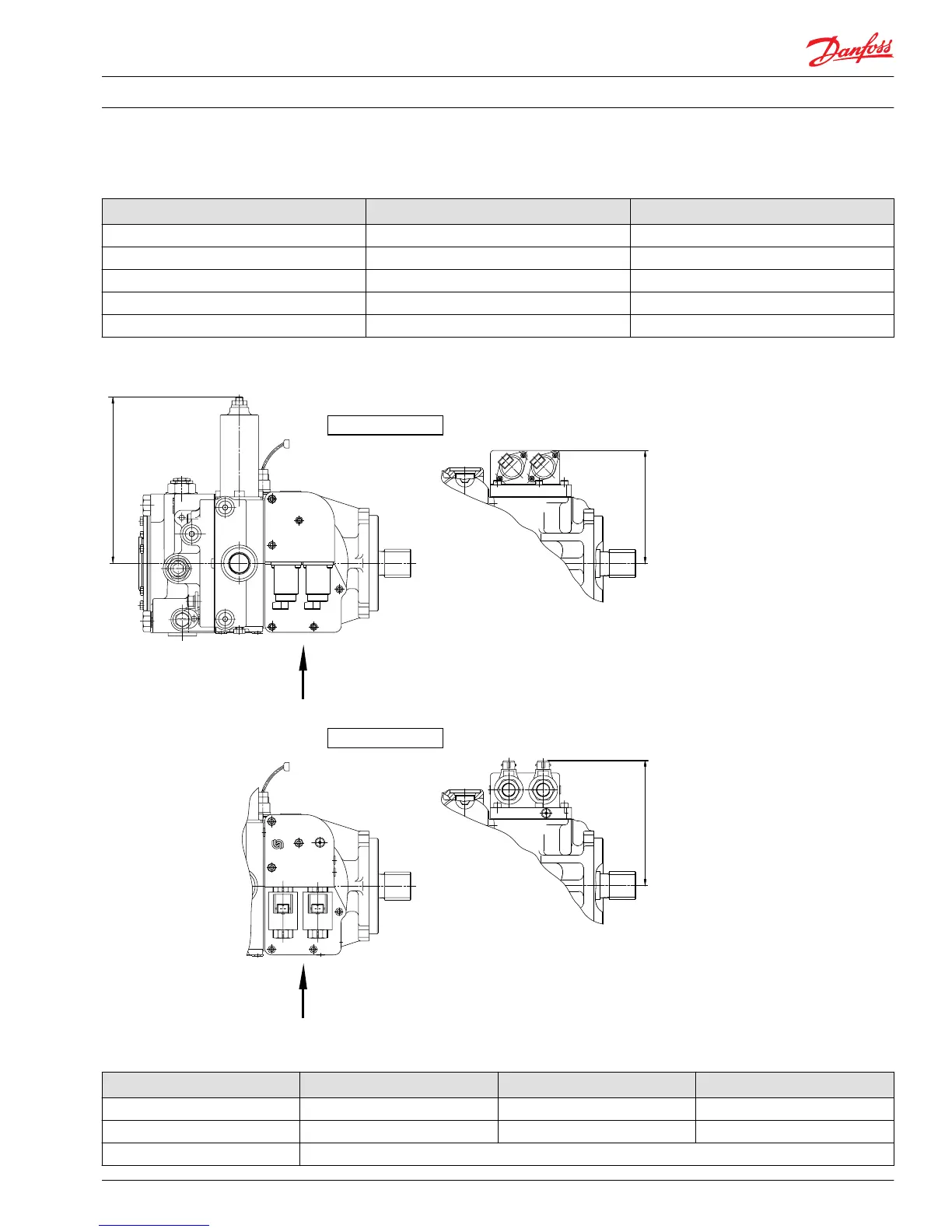

Electrohydraulic Displacement Control (NFPE)(except 075 NFPE)
Dimensions
Frame Size Option “X” “Y”
042 FA, FB, FC, FD 169.30 [6.67] 140.00 [5.51]
055 FA, FB, FC, FD 207.00 [8.15] 145.00 [5.71]
075 Special version see Frame Size 075 NFPE Options FK, FL, FM, FN on page 60
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
520L0603 • Rev 0804 • March 2016 85
