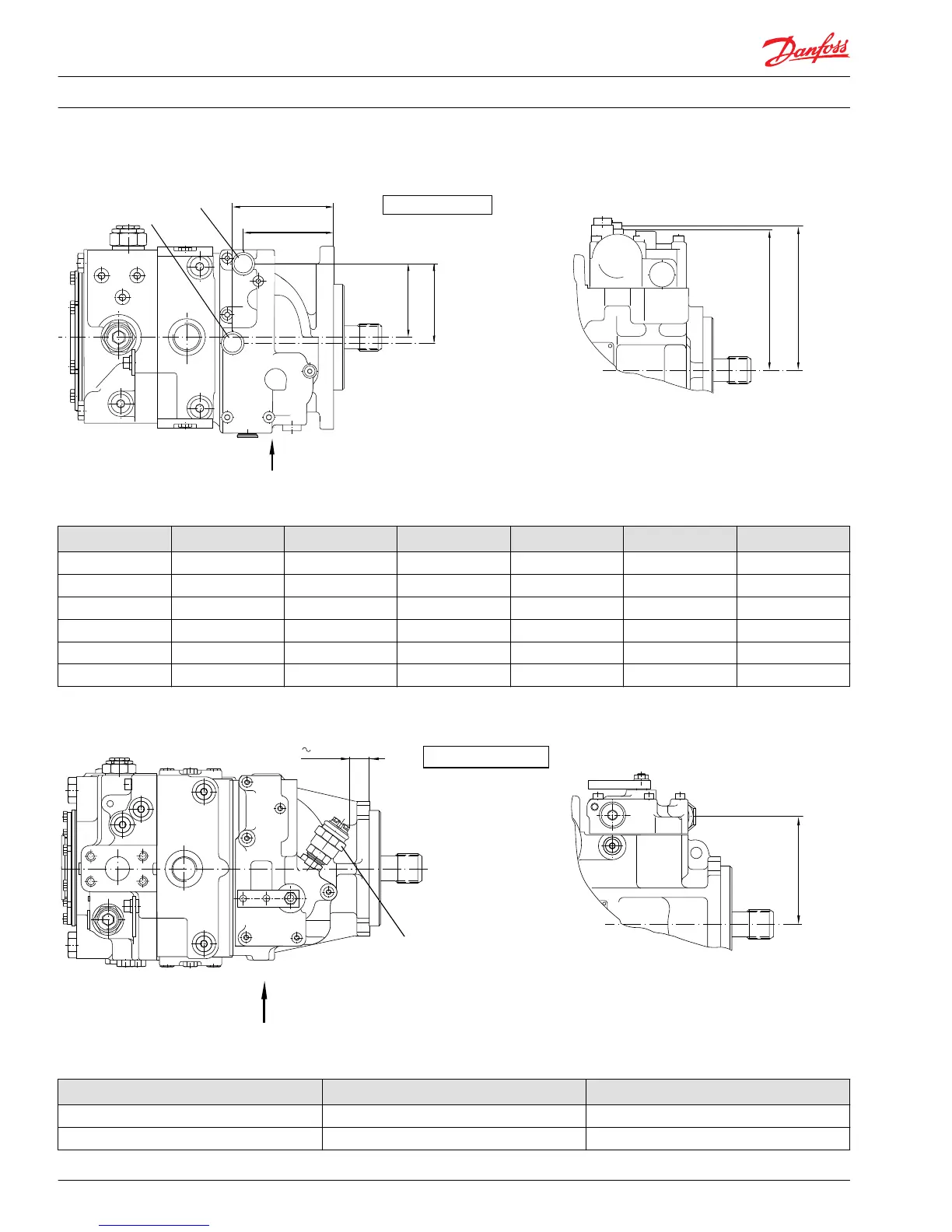

Danfoss Series 90 User Manual

Hydraulic Displacement Control (HDC)
Option HF
View "W"
C8.2 (port X1)
C9
C11
Port X1
2
C12
C10
Port X2
"W"
C8.1 (port X2)
Dimensions
Frame size C8.1 C8.2 C9 C10 C11 C12
042 143.5 [5.65] 135.0 [5.31] 71.0 [2.79] 75.7 [2.98] 89.6 [3.52] 99.2 [3.90]
055 150.8 [5.94] 139.0 [5.47] 71.0 [2.79] 75.7 [2.98] 105.6 [4.15] 115.2 [4.53]
075 148.9 [5.86] 139.0 [5.47] 68.2 [2.68] 67.0 [2.63] 121.8 [4.79] 125.3 [4.93]
100 158.0 [6.22] 149.0 [5.86] 76.8 [3.02] 67.0 [2.63] 127.9 [5.03] 131.4 [5.17]
130 176.7 [6.95] 167.7 [6.60] 61.8 [2.43] 67.0 [2.63] 142.1 [5.59] 145.6 [5.73]
180/250 194.0 [7.63] 185.0 [7.28] 54.0 [2.12] 67.0 [2.63] 148.6 [5.85] 152.1 [5.99]
Manual Displacement Control (MDC) with neutral start switch
Option MB
View "W"
C14
"W"
Neutral
start switch
C13
2
P102 067
Dimensions
Frame size C13 C14
042 0.35 [0.014] 96.0 [3.78]
055 18.0 [071] 100.0 [3.94]
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
84 520L0603 • Rev 0804 • March 2016
