Frame Size 042

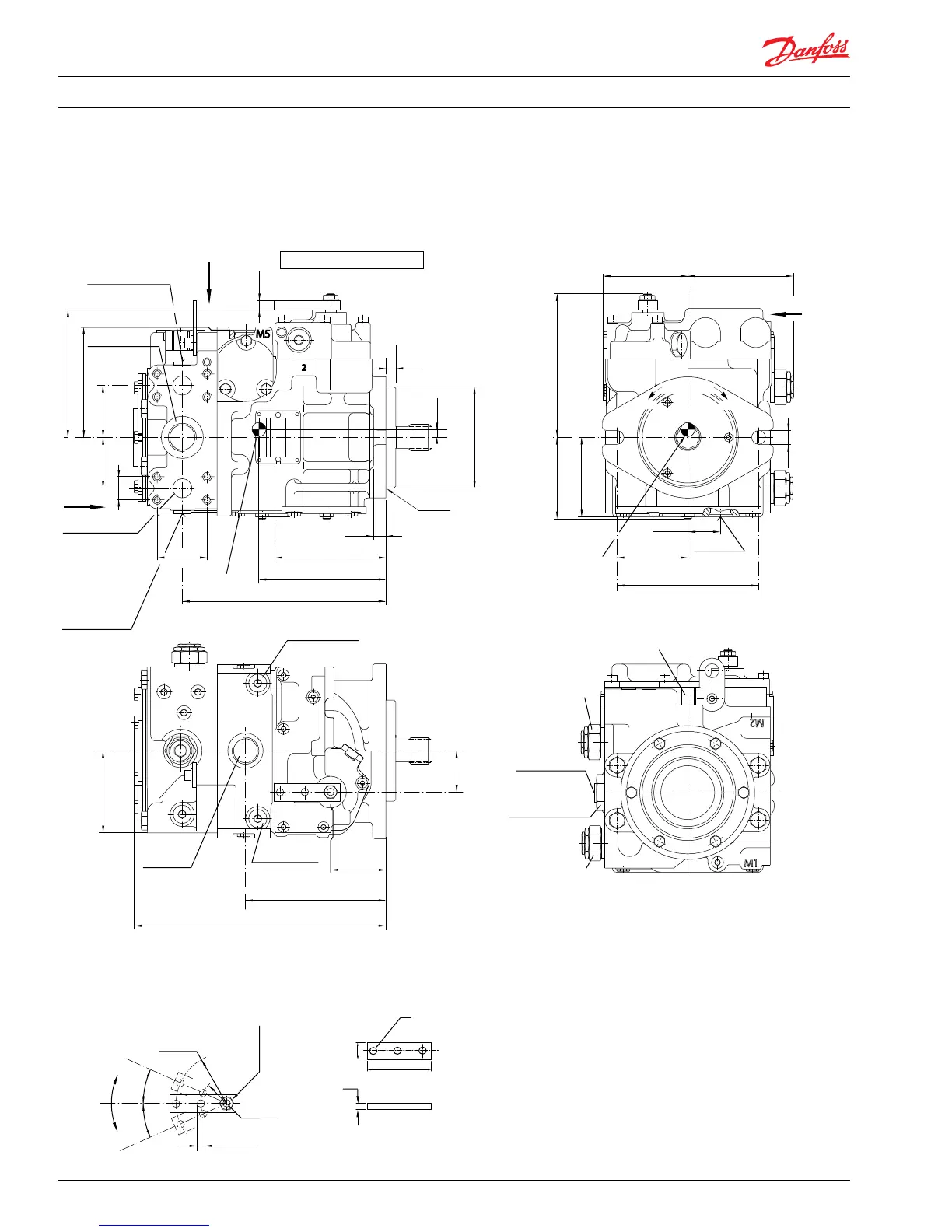

Manual displacement control (MDC), endcap twin ports, option 80
Port L1
Case drain
use highest
port as outlet
7/8-14UNF-2B
258
[10.16]
56.9
[2.24]
143.5
[5.65]
Gauge port M5
servo pressure
9/16-18UNF-2B
Gauge port M4
servo pressure
9/16-18UNF-2B
41.6
[1.64]
83
(3.27)
View "Y"
Gauge port M3
charge pressure
9/16-18UNF-2B
Multifunction
valve
Multifunction
valve
Charge pressure
relief valve
View "X"
Ø6,73
[Ø0.265]
R 25.4
[R 1.0]
R 50.8
[R 2.0]
2x
"B"
"A"
28
minimum
28
minimum
Neutral
position
Torque applied to control handle shaft
not to exceed 17 Nm [150 lb•in]
Maximum
displacement
Maximum
displacement
Manual displacement control handle
dimensions
B
A
12.2
[0.48]
114.5 [4.51]
Port L2
130
[5.12]
23.8
[0.94]
52
[2.047]
52
[2.047]
108 [4.25]
Port L1
129
[5.08]
50.8
[2.00]
Ports A and B
3/4 – 6000 psi
split flange boss
per SAE J518
(Code 62)
3/8-16UNC-2B
20 [0.787]
minimum full thread
Gauge port M1
system pressure A
9/16-18UNF-2B
207.8
[8.18]
Approximate
center of gravity
Port S: Charge
pump inlet
1-1/16-12UN-2B
Gauge port M2
system pressure B
9/16-18UNF-2B
9.4
[0.37]
"X"
"Y"
(2x)
33
[1.30]
73
[2.875]
146
[5.75]
80 [3.15]
Port L2
81.4
[3.20]
145
[5.71]
Approximate
center
of gravity
Port L2
case drain
7/8-14UNF-2B
Ø
14.3
[Ø
0.562]
View "Z"
86
[3.39]
111
[4.37]
"W"
Rotation
CCW
CW
Control MDC, option MA
P102 040
41.67
[1.64]
12.70
[0.50]
Ø 6.33
[Ø 0.249]
4.78
[0.188]
External charge plug
1 1/16-12 UNF
Ø101.6
Ø[4]
0 -0.05
[+0.000]
[-0.002]
7.9
[0.31]
9.7
[0.38]
R0.8 max.
[0.03]
0
-0.51
[+0.0
]
[-0.02]
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
50 520L0603 • Rev 0804 • March 2016
