Danfoss Series 90 User Manual

Dimensions (continued)
Frame Size Option “X” “Y”
100 FA, FB, FC, FD 235.00 [9.25] 161.10 [6.34]
100 FG, FH 176.60 [6.95]
130 FG, FH 244.10 [9.61] 195.50 [7.70]
180 FG, FH 290.00 [11.42] 213.00 [8.39]
250 — — —

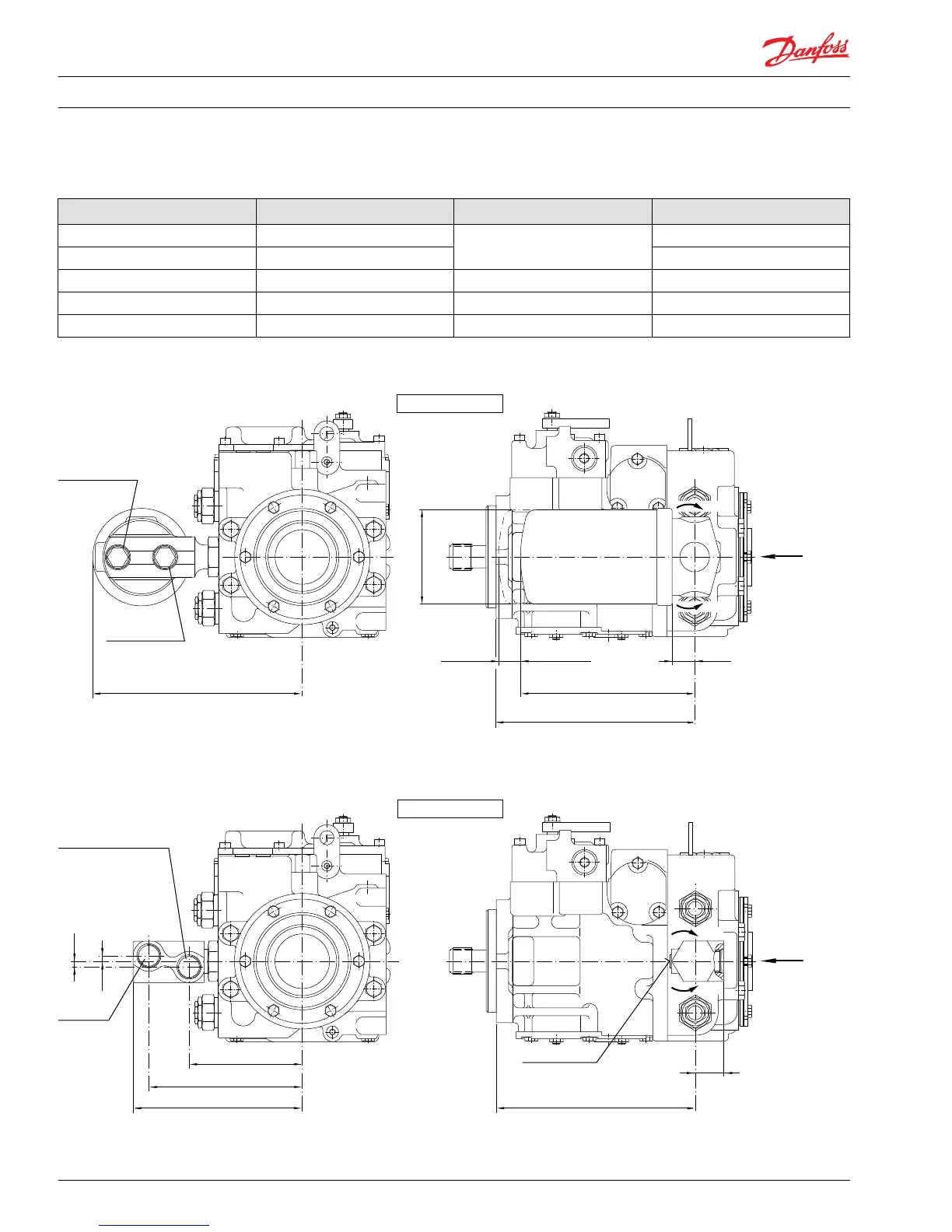

Integral Pressure Filter
F4 maximum
Gauge port M3
charge pressure
after filter
9/16-18UNF
View "X"
Gauge port M6
charge pressure
before filter
9/16-18UNF
Option P & L
"X"
F1 = short filter cartridge (option P)
F2 = long filter cartridge (option L)
F3
22.86
[0.90]
20.3 minimum
[0.80 minimum]
Required
for removal
180
180
Ø 94.2 maximum
[Ø 3.71 maximum]
Frame size 042 – 130 = option P
Frame size 042 – 250 = option L
Remote pressure – without filter
Option R & T
View "X"
Port E
from filter
7/8-14UNF (option R)
1
1
/
16
-12UN (option T)
5.6
[0.22]
5.6
[0.22]
Port D
to filter
7/8-14UNF
(option R)
1
1
/
16
-12UN
(option T)
F5 maximum
F6 maximum
F7 maximum
"X"
F3
Gauge port M3
charge pressure
after filter
9/16-18UNF
180
180
28.5
[1.12]
Frame size 042 – 130 = option R
Frame size 180 – 250 = option T
P102 068
Technical Information
Series 90 Axial Piston Pumps
Installation Drawings
86 520L0603 • Rev 0804 • March 2016
