Danfoss Series 90 User Manual

Frame Size 100

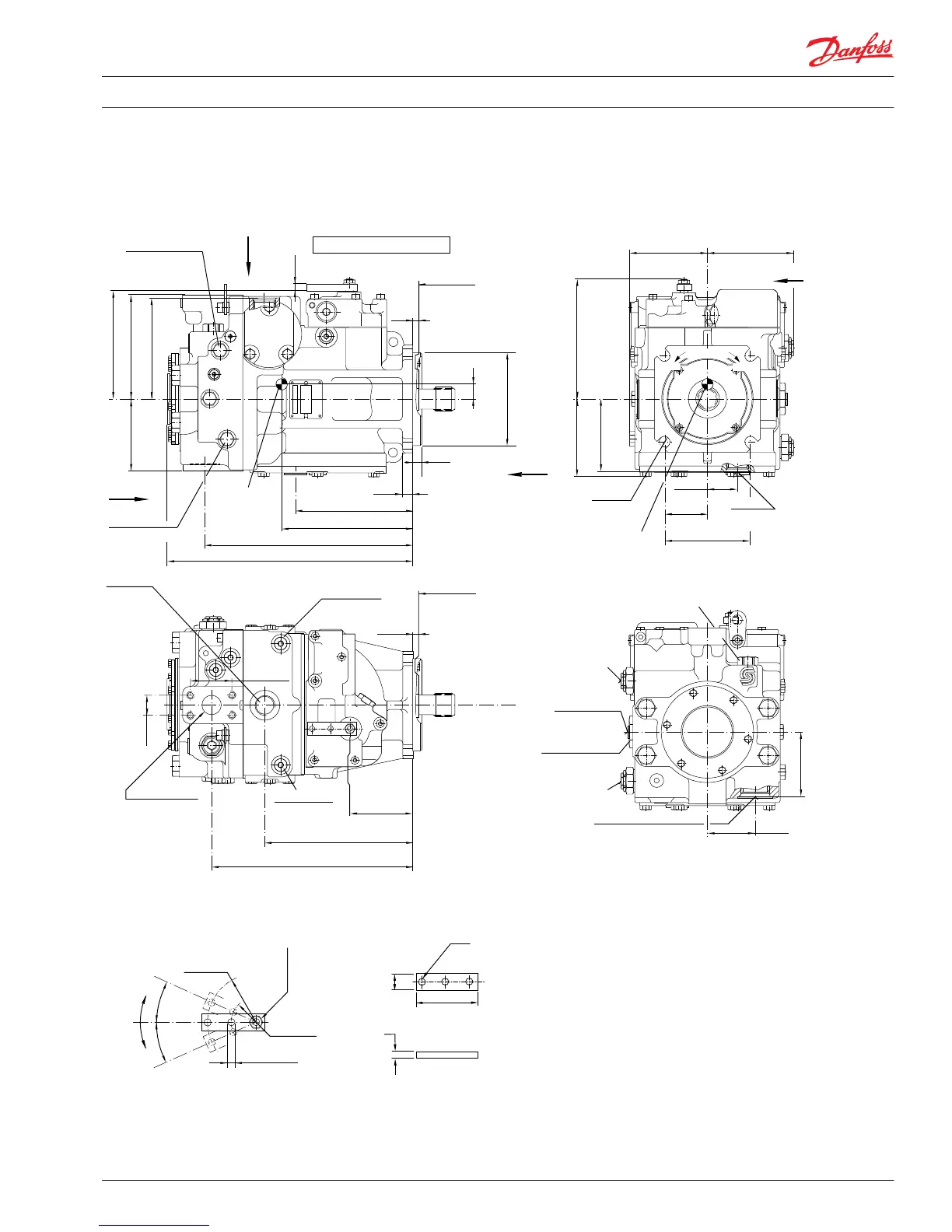

Manual Displacement Control (MDC), endcap side ports, option 60
Ø 6.73±0.13
[Ø 0.265±0.005]
R 25.4±0.3
[R 1.0±0.01]
R 50.8±0.3
[R 2.0±0.01]
3x
"B"
"A"
30°
minimum
30°
minimum
Neutral
position
Torque applied to control handle shaft
not to exceed 17 Nm [150 lbf•in]
Maximum
displacement
Maximum
displacement
Manual displacement control handle
dimensions
Gauge port M3
charge pressure
9/16-18UNF-2B
Multifunction
valve
Charge pressure
relief valve
View "X"
Multifunction
valve
89.7
[3.53]
Port S: charge pump inlet
1-5/8-12UN-2B
66
[2.60]
Coupling may not
protrude beyond
this surface
20.3
[0.80]
14.2
[0.56]
161 [6.34]
Port L2
180.3
[7.10]
143.3 [5.64]
port B
148.7 [5.85]
Gauge port M1
system pressure A
9/16-18UNF-2B
Approximate
center of gravity
Gauge port M2
system pressure B
9/16-18UNF-2B
9.4
[0.37]
"X"
"Z"
"Y"
7.9
[0.31]
139.1 [5.48]
port L1
339.0
[13.35]
99.1 [3.90]
port A
288 [11.34]
port S
277.7
[10.93]
Port L1
case drain
use highest
port as outlet
1-1/16-12UN-2B
87.3
[3.44]
204.6
[8.06]
Gauge port M5
servo pressure
9/16-18UNF-2B
Gauge port M4
Servo pressure
9/16-18UNF-2B
Coupling may not
protrude beyond
this surface
7.9 [0.31]
27.76
[1.093]
View "Y"
57.15 [2.25]
Ports A and B
1.00 - 6000 psi
split flange boss
per SAE J518
(Code 62)
7/16-14UNC-2B
except 21 [0.83]
minimum full thread
42
[1.65]
57.25
[2.254]
114.5
[4.508]
100.37 [3.95]
port L2
102
[4.02]
164.2
[6.46]
Approximate
center of gravity
Port L2
case drain
1-1/16-12UN-2B
View "Z"
108.5
[4.27]
119.6
[4.71]
"W"
Ø 14.27
[Ø 0.562]
(2x)
(2x)
Rotation
CCW
CW
Control MDC, option MA
2
M3
M2
M10
M1
B
M4
M5
A
P102 050
41.67
[1.64]
12.70
[0.50]
Ø 6.33
[Ø 0.249]
4.78
[0.188]
External charge plug
1 5/16-12 UNF
±0.25
[±0.01]
Ø 127
[Ø 5.000]
0 -0.05
[+0.000] [-0.002]
12.45
[0.49]
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
520L0603 • Rev 0804 • March 2016 65
