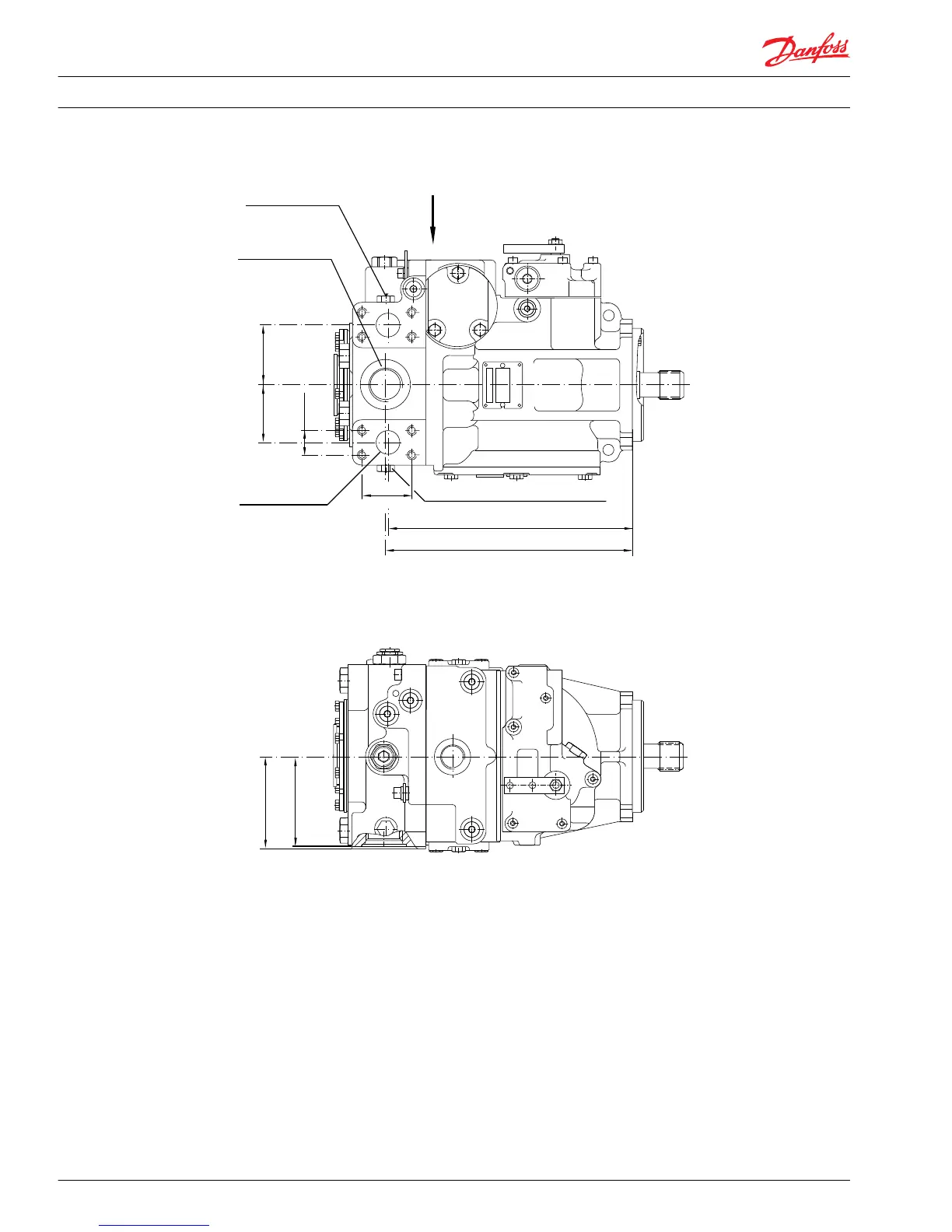

Danfoss Series 90

Manual Displacement Control (MDC), endcap twin ports, option 80
277.9
[10.94]
Gauge port M1: system pressure A
9/16-18UNF-2B
Gauge port M2
system pressure B
9/16-18UNF-2B
"Y"
B
A
66.8
[2.63]
66.8
[2.63]
280.5
[11.04]
57.15
[2.25]
27.76
[1.093]
Port S: charge
pump inlet
1-5/8-12UN-2B
View "Y"
99.8 [3.93]
port S
108
[4.25]
Ports A and B
1 - 6000 psi
split flange boss
per SAE J518
(Code 62)
7/16-14UNC-2B
21 [0.83]
minimum full thread
2
P102 051
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
66 520L0603 • Rev 0804 • March 2016
