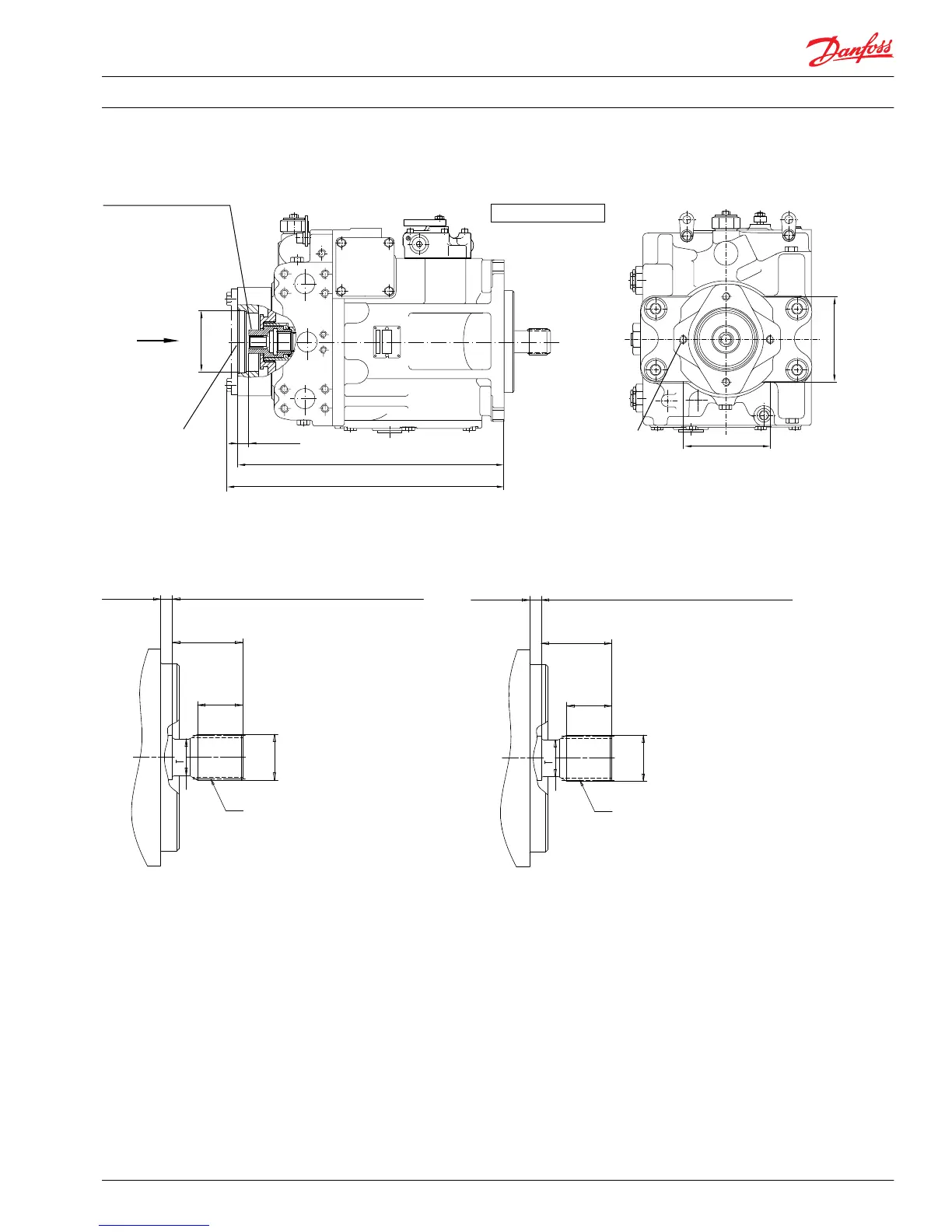

Auxiliary mounting pad – options AB, BC, CD, DE, EF, EG, BB
2
475.1
[18.70]
457.4
[18.01]
For O-ring
Ø 94.92 x 2.62
[Ø 3.737 x 0.103]
"X"
Ø 101.65
[Ø 4.00]
Coupling spline data:
Pitch diameter = 23.8125 [0.9375]
Pressure angle = 30
Number of teeth = 15
Pitch = 16/32
ANSI B92.1-1970, class 6,
fillet root side fit
Length of spline = 24.49 [0.96]
+ 0.13
- 0.00
[+0.005]
[- 0.000]
22.6
[0.89]
B
M2
S
a
M1
M3
A
M10
M5
M4
4 threads
1/2-13UNC-2B
22 [0.87] deep
View "X"
146
[5.75]
146
[5.75]
SAE B-B, option BB
P102 064
7.9
[0.311]
66.8
[2.63]
Coupling must not protude beyond this surface
Option F1
ANSI B92.1 1970 KL.5 (13 tooth)
38.54
[1.52]
27.9
[1.10]
43.89
[1.73]
7.9
[0.311]
Coupling must not protude beyond this surface
Option C8
ANSI B92.1 1970 KL.5 (27 tooth)
39
[1.54]
56
[2.20]
44.35
[1.75]
42.8625
[1.687]
P108 508E
66.8
[2.63]
41.275
[1.625]
*
* Minimum active spline length
for the specified torque ratings
*
Shaft spline data:
Pitch diameter = 41.275 [1.625]
Pressure angle = 30°
Number of teeth = 13
Pitch = 8/16
ANSI B92.1
Fillet root side fit
Shaft spline data:
Pitch diameter = 42.8625 [1.6875]
Pressure angle = 30°
Number of teeth = 27
Pitch = 16/32
ANSI B92.1
Fillet root side fit
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
520L0603 • Rev 0804 • March 2016 81
To Next Page
